Product Description

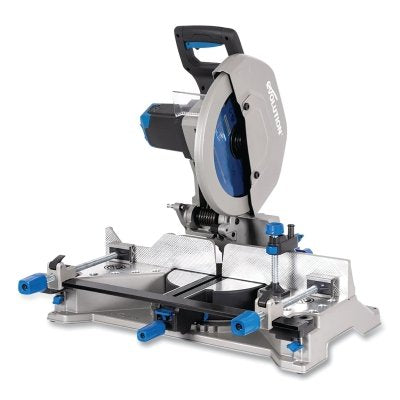

The Evolution 102-0004 Mitering Chop Saw is designed for heavy-duty metal cutting. This tool operates at 1450 RPM, providing a smooth and precise cut with a 1/2 inch cutting capacity.
- Dual sliding front clamps for secure material placement
- Top clamp for workpiece stability
- Height adjustment with quick-release ACME threads
Product Highlights
This mitering chop saw features dual sliding front clamps with quick-release clasps, ensuring materials are clamped closer to the blade for confident cutting. A top clamp positioned to the right or left of the blade secures the workpiece post-cut. It includes three V-block adapters and a height adjustment clamp rail providing versatile movement in all directions.
Product Information
Standard Information
- Brand: Evolution
- MPN: 102-0004
- UPC: 849713972860
- Category: Power Tools | Cutting Tools | Miter Saws
Technical Specifications
- Weight: 88 lbs
- Length: 30 inches
- Width: 23 inches
- Height: 17.75 inches
- Power Source: 120 V
- Speed: 1450 RPM
- Cutting Capacity: 1/2 inch
- Arbor Diameter: 1 inch
- Blade Diameter: 14 inches
- Included Components: 66-Tooth Mild Steel TCT Blade, Base Table Assembly, Cutting Head Assembly, Double-Ended 5 mm/8 mm Hex Key, Instruction Manual, Quick-Release Front Clamps x2, Quick-Release Top Clamp, Rail Bracket and Fixings, Rear Stabilizing Leg, V-Blocks x3
