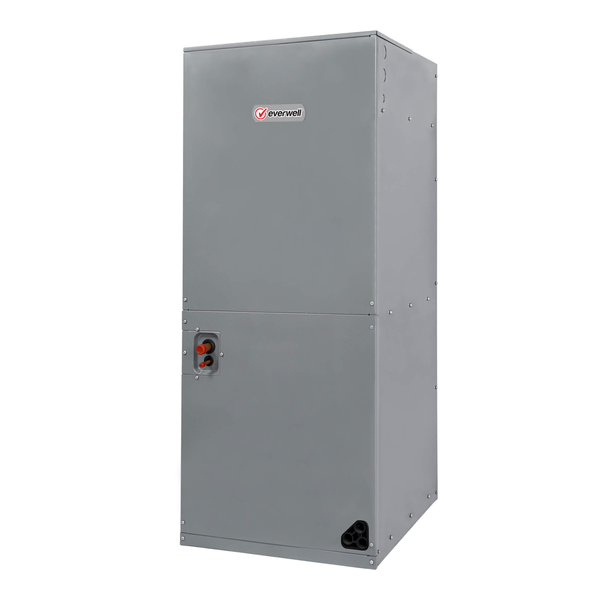

Everwell AHC24HA15 A/C Air Handler Unit 24000BTU 208-220V/1PH/60HZ 15 SEER

Product Description

The EVERWELL AHC24HA15 is an A/C air handler unit with a 24000 BTU capacity, designed for use with a 208-220V/1PH/60HZ power supply. It features a 15 SEER rating and functions as a heat pump using R410A refrigerant. This unit is AHRI and ETL certified and part of a ducted central split system with inverter technology.

• 2 TON Capacity
• 14.30 SEER2 Rating
• Heat Pump System

Product Highlights

This EVERWELL air handler unit provides efficient cooling and heating with its heat pump functionality and inverter technology.

Product Information

Standard Information

• Brand: EVERWELL
• Manufacturer Part Number: AHC24HA15

Technical Specifications

• Brand: Everwell
• Model: AHC24HA15
• Gross weight: 141.00 LB
• Net weight: 130.00 LB
• Product dims (in): 45.00 x 19.00 x 22.00
• Box dims (in): 47.00 x 22.00 x 25.00
• Cooling Rated Capacity: 24000 BTU (2 Ton ~1000 sqft )
• Cooling Capacity Range: 5120~24900 Btu/h
• Heating Rated Capacity: 24000 BTU (2 Ton ~1000 sqft )
• Heating Capacity Range: 5120~24900 Btu/h
• Cooling SEER: 14.00
• Cooling SEER2: 14.30
• Cooling EER(A2): 11.50
• Cooling EER2(A Full): 11.50
• Heating HSPF (Region IV): 8.20
• Heating HSPF2 (Region IV): 7.50
• Power Supply: 208-230V~60Hz, 1Ph
• Refrigerant Type: R-410A
• Inverter: Yes
• Certifications: AHRI, ETL
• Indoor unit Model: AHC24HA15
• Indoor unit Pipe line: 3/8''-3/4''
• Indoor unit Anticorrosive: GoldFin
• Outdoor unit Pipe line: 3/8''-3/4''
• Outdoor unit Anticorrosive: GoldFin
