Product Description

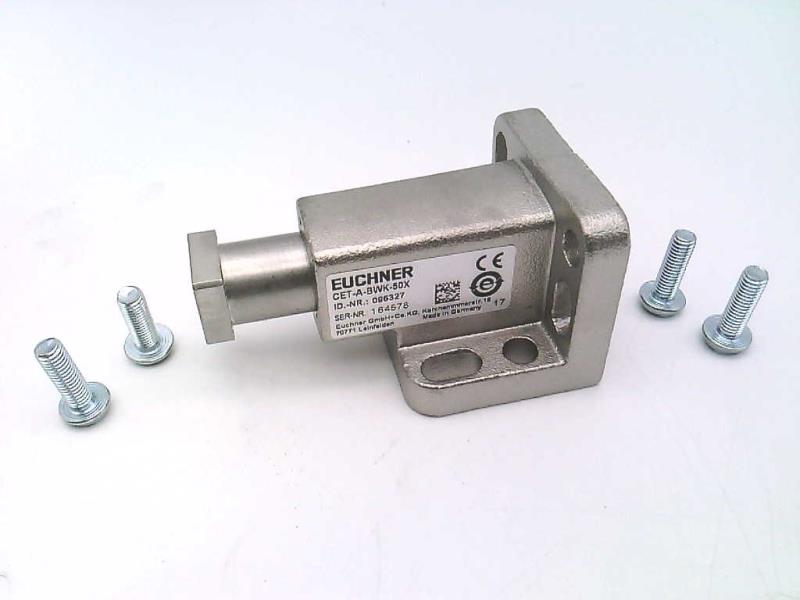

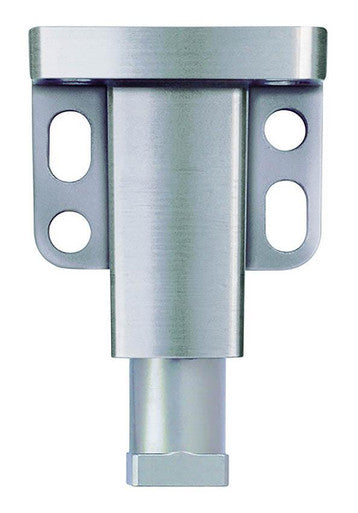

Euchner 96327 is a CET-A-BWK-50X stainless steel actuator designed as a pneumatic safety switch with locking technology and IP67 protection. It serves as a noncontact safety interlock actuator compatible with CET-AX and CET-AR read heads. The CET series provides guard locking capability, rotatable head positions, and safety outputs suitable for machine guard locking and personnel protection applications.

• IP67-rated stainless steel construction with locking technology for pneumatic safety switching
• Compatible with CET-AX and CET-AR safety switches; noncontact actuator with head rotatable in 90° steps
• Guard locking up to 6500 N; two safe semiconductor outputs plus one signal output; complies with EN 14119 and EN ISO 13849-1 (Cat. 4, PL e)

Product Highlights

Stainless steel, IP67 pneumatic safety actuator with locking technology for CET series safety interlocks (MPN 96327).

Product Information

Standard Information

• Brand: EUCHNER
• Manufacturer Part Number: 96327

Technical Specifications

• Brand: Euchner
• Manufacturer Part Number: 96327
• Model: CET-A-BWK-50X
• Type: Actuator / Pneumatic safety switch
• Function: Safety actuator for interlock applications
• Material: Stainless steel
• Protection Rating: IP67
• Technology: Locking
• Series: CET Series
• Compatible Switch Models: CET-AX, CET-AR
• Guard Locking Force: Up to 6500 N
• Outputs: Two safe semiconductor outputs plus one signal output
• Head Rotation: Rotatable in 90° steps
• Safety Category: Category 4
• Performance Level: PL e (EN ISO 13849-1)
• Standards: EN 14119
• Included Hardware: Four M5x16 safety screws
• Dimensions: 3 x 2.16 x 3 inches
• Weight: 0.33 lb
• Alternate Part Numbers: 096327; WERMA CET-ABWK-50X
