Euchner 84139 Safety Switch TP4-4121A024M

Product Description

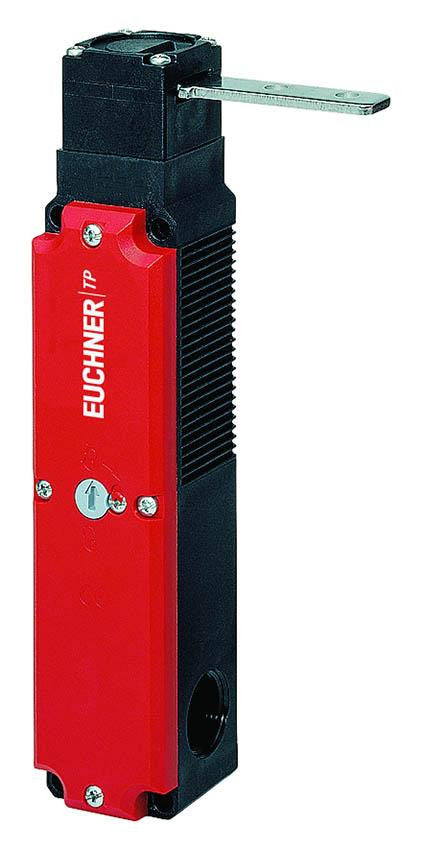

The Euchner 84139 safety switch TP4-4121A024M is designed for safety interlock applications. It features contacts that monitor both door position and locking state. The die-cast aluminum housing and high degree of protection allows the TP Series safety switch to withstand extreme ambient conditions. It is ideal for universal mounting on profile rails.

• Contacts monitor both door position and locking state
• Adjustable actuator head for multiple approach directions
• Protection rating IP67

Product Highlights

The Euchner 84139 safety switch is designed for safety interlock applications and can withstand extreme conditions.

Product Information

Standard Information

• Brand: EUCHNER
• Manufacturer Part Number: 84139

Technical Specifications

• Alternate Part Number: 84139, TP4-4121A024M
• Type of Safety Switch: Safety Interlock
• Manufacturer Part Number: 84139
• Manufacturer: Euchner
• Product Series: TP
• Family Series: Euchner Safety Switches, TP Series
• Description: SAFETY SWITCH, TP4-4121A024M
• Guard Locking Type: Current Locks (Open Circuit)
• Solenoid Contacts: 2NC
• Switch Contacts: 1NO/2NC
• Thermal Current Rating: 4 A
• Voltage: 24 VAC, 24 VDC
• Contact Load: 8 W
• Holding Force: 1,300 N
• Extraction Force: 20 N
• Auxiliary Release: Yes
• Connection Type: Screw Terminals
• Adjustable Actuator Head: Yes
• Protection Rating: IP67
• Approvals: cUL, UL
• Net Weight: 1.1025 lbs
• Gross Weight: 1.1025 lbs
• Primary brand: Euchner
• Order code / Manufacturer SKU: TP4-4121A024M 084139
• Manufacturer product status: Commercialized
• Manufacturer description: SAFETY SWITCH
• Category: Safety Switch
• Guard locking: Electrical guard lock, open-circuit current
• Switching element: Slow-action switching contact 2NC 1NC/1NO
• Connection: Thread M20x1.5 for cable gland
