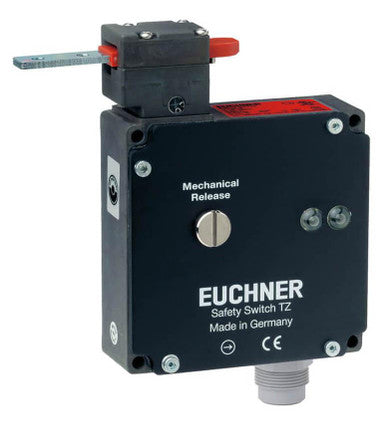

Euchner 76294 Safety Interlock Switch 24 V (52 mm) TZ2LE024SR6-C1638

Product Description

Euchner 76294 is a TZ/TZ2 series safety interlock switch with solenoid-operated guard locking and an SR6 plug connector. It operates on AC/DC 24 V (-15% / +10%), provides IP65 protection, and uses gold-flashed silver alloy contacts with a thermal rated current of 4 A and 4 A gG short-circuit protection. Mechanical life is 1 x 10^6 cycles; insertion depth is 52 mm and approach is from the left.

• Solenoid operating voltage AC/DC 24 V (-15% / +10%), power consumption 10 W, thermal rated current 4 A
• IP65 anodized die-cast alloy housing, gold-flashed silver contacts, mechanical life 1 x 10^6 cycles
• Solenoid guard locking (open-circuit current principle) with locking force Fmax 2000 N and SR6 plug connection; two LED indicators

Product Highlights

Metal-housing safety interlock with solenoid guard locking, IP65 protection, SR6 plug connector, and 1 x 10^6 mechanical cycles

Product Information

Standard Information

• Brand: EUCHNER
• Manufacturer Part Number: 76294

Technical Specifications

• Brand: Euchner
• MPN: 76294
• Alternate Part Number: TZ2LE024SR6-C1638
• Type: Safety interlock switch
• Series: TZ, TZ2
• Solenoid operating voltage: AC/DC 24 V (-15% / +10%)
• Power consumption: 10 W
• Thermal rated current (Ith): 4 A
• Short-circuit protection: 4 A gG (IEC 60269-1)
• Rated insulation voltage (Ui): 250 V
• Rated impulse withstand voltage (Uimp): 2.5 kV
• Utilization category: AC-15 4A 230V; DC-13 4A 24V
• Switching principle: Slow-action switching contact
• Switching current minimum at 24 V: 1 mA
• Switching voltage minimum at 10 mA: 12 V
• Actuating force: 35 N
• Extraction force: 30 N
• Retention force: 10 N
• Locking force Fmax: 2000 N
• Locking force FZh: 1500 N
• Guard locking principle: Open-circuit current principle
• Connection: 1 x plug connector SR6
• LED indicators: Two (red and green)
• Degree of protection: IP65
• Housing material: Anodized die-cast alloy
• Contact material: Silver alloy, gold flashed
• Mechanical life: 1 x 10^6 cycles
• Insertion depth: 52 mm
• Approach direction: Actuating head left (C)
• Approach speed max: 20 m/min
• Actuation frequency max: 1200 1/h
• Ambient temperature: -25 to +80 C
• Number of door position NO contacts: 1
• Number of door position positively driven contacts: 1
• Number of guard lock monitoring NO contacts: 1
• Number of guard lock monitoring positively driven contacts: 1
• Auxiliary release: Front
