Euchner 126763 CET4-AP-CRA-AH-50X-SI-C2438 24 V DC 11 W (90 deg) 126763

Product Description

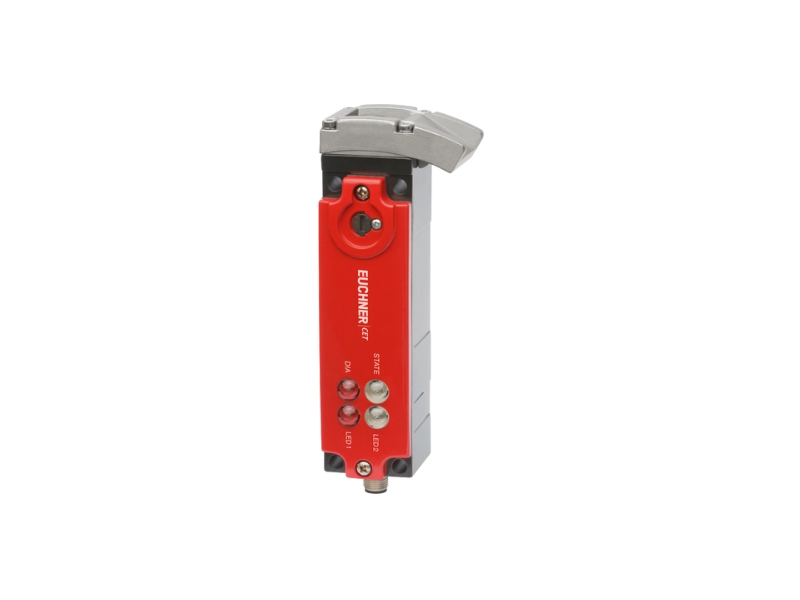

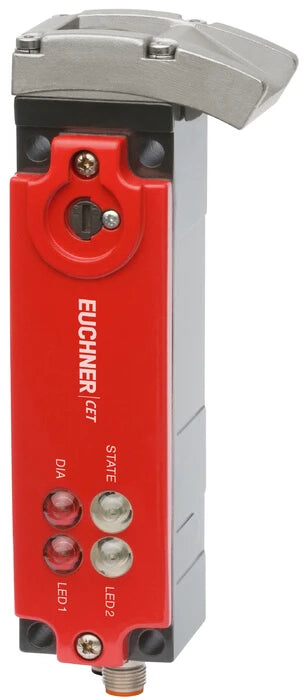

Euchner 126763 is a transponder-coded safety switch (CET4-AP series) with integrated guard locking and evaluation electronics. The device provides a 24 V DC solenoid (11 W) for power-to-lock operation, two redundant semiconductor safety outputs with internal monitoring, and a door position monitoring output. It connects via two M12 5-pin plug connectors and is rated for Category 4 / PL e and SIL 3 safety applications in industrial environments.

• Transponder-coded (Unicode/Multicode) actuator recognition; actuator sold separately and only taught-in actuators are detected
• Guard locking by open-circuit current principle with 24 V DC solenoid (11 W, 100% duty cycle) and locking force up to 6500 N
• Two redundant p-switching semiconductor safety outputs (short-circuit-proof), door monitoring output OUT D, LED status and diagnostics, IP67

Product Highlights

Transponder-coded guard-locking safety switch, 24 V DC 11 W solenoid, 2 x M12 5-pin connectors, Category 4 / PL e, IP67

Product Information

Standard Information

• Brand: EUCHNER
• Manufacturer Part Number: 126763

Technical Specifications

• Manufacturer Part Number: 126763
• Brand: EUCHNER
• Model: CET4-AP-CRA-AH-50X-SI-C2438
• Type: Transponder-coded safety switch with guard locking and integrated evaluation electronics
• Guard Locking Principle: Open-circuit current principle (power-to-lock, spring to unlock)
• Transponder Coding: Unicode / Multicode (taught-in actuators)
• Actuator: CET-A (sold separately)
• Connection: 2 x M12 5-pin plug connectors
• Input Voltage: 24 V DC (-15% ... +15%)
• Solenoid Voltage: 24 V DC (-15% ... +10%)
• Solenoid Power Consumption: 11 W
• Solenoid Duty Cycle: 100%
• Current Consumption (IB): 80 mA
• Current Consumption (ICM): 480 mA
• Safety Outputs: 2 redundant semiconductor outputs (p-switching), short-circuit-proof
• Monitoring Output OUT D: p-switching, short-circuit-proof; 1 ... 50 mA; 0.8 x UB ... UB V DC
• Safety Classification: Category 4 / PL e (EN 13849-1); SIL 3 (EN IEC 62061)
• Degree of Protection: IP67 (inserted and screwed tight)
• Mechanical Life: 2 x 10^6 switching cycles
• Locking Force (max): 6500 N
• Locking Force (Zh): 5000 N
• Degree of Contamination: 3 (EN 60947-1)
• Ambient Temperature (operation): -20 ... 55 °C (at UB = 24 V DC)
• Storage Temperature: -25 ... 70 °C
• Switching Frequency (max): 0.5 Hz
• Ready Delay: 1 s
• Turn-on Time: 400 ms
• Discrepancy Time (both safety outputs): max. 10 ms
• Off-state Current (Ir max): 0.25 mA
• Switching Current per Safety Output: 1 ... 200 mA
• Connection Cable Spec: Connecting cable 30 V DC, 2 A (UL category CYJV/CYJV7)

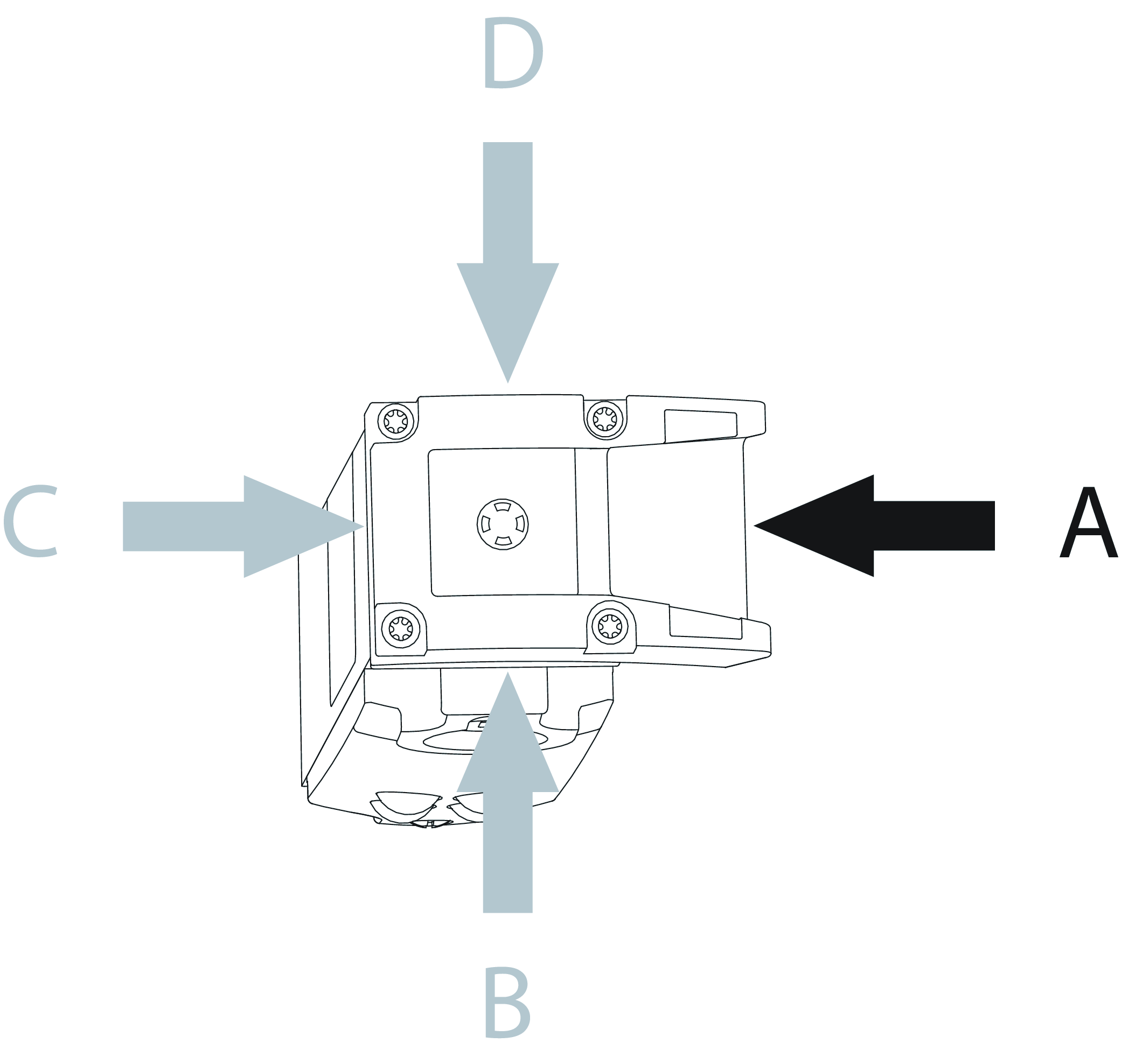

• Approach Direction: Horizontal (adjustable in 90 deg steps)
• Housing Material: Die-cast aluminum housing; stainless steel slide
• Installation Orientation: Any
• Approach Speed (max): 20 m/min
• Degree of Freedom X: ±15 mm
• Degree of Freedom Y: ±15 mm
• Degree of Freedom Z: ±14 mm
• Mission Time: 20 years
• Protection/EMC: In accordance with EN IEC 60947-5-3
• Mechanical/Environmental Standards: Shock and vibration resistance according to EN IEC 60947-5-3
