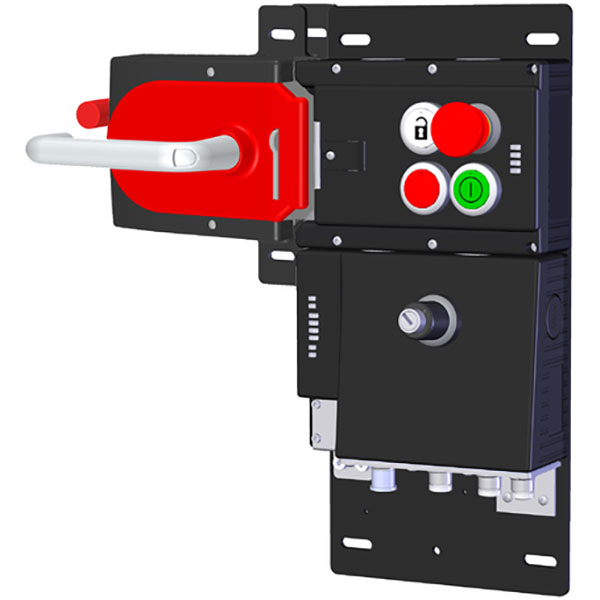

Euchner 121579 CET3-AP-CRA-CH-50X-SA Safety Switch 11 W (90°)

Product Description

Euchner 121579 is a CET3-AP series transponder-coded safety switch with guard locking that uses RFID and a closed-circuit current principle (power to unlock). The device provides two redundant semiconductor safety outputs with internal monitoring, monitoring outputs for guard locking and door position, and an M12 8-pin plug connector. It meets Category 4 / PL e and SIL 3 safety requirements and is rated IP67 for harsh environments.

• Two redundant semiconductor safety outputs with internal monitoring; monitoring outputs for guard locking (OUT) and door position (OUT D).
• Guard locking via closed-circuit current principle (power to unlock), solenoid power 11 W, locking force up to 6500 N; head/approach adjustable in 90° steps.
• Operating electronics 24 V DC (-15%/+15%), solenoid 24 V DC (-15%/+10%), M12 8-pin connector, IP67, die-cast aluminum housing with stainless steel ramp.

Product Highlights

Transponder-coded RFID safety interlock with guard locking, Category 4 / PL e compliance, SIL 3, M12 8-pin connector, IP67.

Product Information

Standard Information

• Brand: EUCHNER
• Manufacturer Part Number: 121579

Technical Specifications

• Brand: EUCHNER
• Manufacturer Part Number: 121579
• Model / Order Code: CET3-AP-CRA-CH-50X-SA
• Product Type: Transponder-coded safety interlock switch with guard locking
• Guard Locking Principle: Closed-circuit current principle (power to unlock)
• Evaluation Type: Multicode (low coding level)
• Safety Category / Performance Level: Category 4 / PL e according to EN 13849-1
• SIL Rating: SIL 3 according to EN IEC 62061
• Safety Standards: EN 13849-1; EN IEC 62061; EN 14119; EN ISO 13849-1
• Safety Outputs: 2 semiconductor outputs (p-switching), short circuit-proof
• Monitoring Outputs: OUT (guard locking) and OUT D (door position), p-switching, short circuit-proof
• Operating Voltage (electronics): 24 V DC (-15% ... +15%), reverse polarity protected
• Solenoid Operating Voltage: 24 V DC (-15% ... +10%), reverse polarity protected
• Solenoid Power Consumption: 11 W
• Current Consumption (Solenoid): 450 mA
• Current Consumption (Electronics): 80 mA
• Connecting Cable Rating: 30 V DC, 2 A (for UL category CYJV/CYJV7)
• Fuse (Electronics UB): external 0.25 ... 8 A
• Fuse (Solenoid UCM): external 0.5 ... 8 A
• Ready Delay: 1 s
• Turn-on Time: 400 ms
• Discrepancy Time (both safety outputs): max. 10 ms
• Switching Frequency: max. 0.5 Hz
• Switching Load (UL): 24 V DC, Class 2
• Solenoid Duty Cycle: 100%
• Maximum Risk Time (EN 60947-5-3): max. 400 ms
• Degree of Protection: IP67 (inserted and screwed tight)
• Operating Temperature: -20 ... 55 °C
• Storage Temperature: -25 ... 70 °C
• Material (Ramp): Stainless steel
• Material (Housing): Die-cast aluminum
• Locking Force (F max): 6500 N
• Locking Force (Zh): 5000 N
• Degree of Contamination (External): 3 (according to EN 60947-1)
• Approach Direction: Horizontal (adjustable in 90° steps)
• Connection Type: 1 plug connector M12, 8-pin
• Installation Orientation: Any
• Degree of Freedom (X / Y / Z): ±5 mm / ±5 mm / ±4 mm
• Mechanical Life: 2 x 10^6 operations
• Test Pulse Duration: max. 0.3 ms (C <= 30 nF and R <= 20 kΩ)
• Gross Weight (manufacturer stated): 1.267 kg
• Solenoid Current (derived): approx. 0.46 A (based on 11 W at 24 V)
