Euchner 121236 MGB-L1HE-ARA-R Locking Set

Product Description

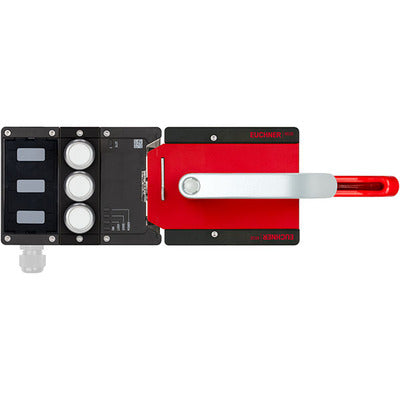

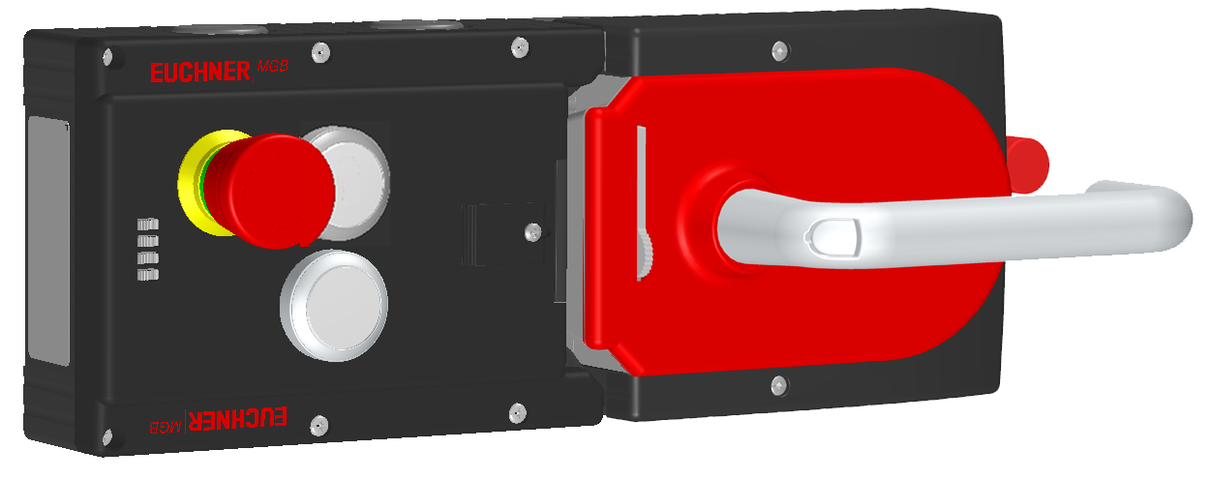

The EUCHNER 121236 MGB-L1HE-ARA-R locking set features guard locking with monitoring and can be connected in series with other AR devices. Compliant with ISO 13850 for emergency stops, it includes two illuminated pushbuttons, a lens set with six pieces, cable entry, and an escape release. The locking set uses Unicode transponder coding.

• Guard locking with guard lock monitoring
• Emergency stop according to ISO 13850
• Includes 2 illuminated pushbuttons

Product Highlights

This locking set is designed for safety and convenience, featuring an emergency stop function and illuminated pushbuttons for clear indication.

Product Information

Standard Information

• Brand: EUCHNER
• Manufacturer Part Number: 121236

Technical Specifications

• Guard locking type: MGB-L1...
• LED indicator: The LED indicator indicates all important system and status information.
• Monitoring outputs: OD ON when the door is closed OT Bolt tongue inserted into the evaluation module OL Guard locking solenoid in locked position OI Diagnostics; there is a fault
• Emergency stop device: S1 2 positively driven contacts and 1 NO contact (e.g. monitoring contact), emergency stop with turn-to-reset, not illuminated
• Pushbuttons: S2 1 NO contact, illuminated S3 1 NO contact, illuminated
• Lens set: The color of the pushbuttons can be selected using the color cover set included (5 colors). Item no.: 120344 (see Accessories)
• Escape release: The escape release enables people accidentally shut in to open the guard locked door from the danger zone.
• Installation orientation: Door hinge DIN right
• Storage temperature: -25 ... 70 °C
• Degree of protection: IP65
• Ambient temperature: -20 ... 55 °C
• Housing Material: Die-cast zinc/stainless steel, powder-coated
• Mechanical life: 1 x 10⁶
• Transponder coding: Unicode
• Degree of contamination (external, according to EN 60947-1): 3
• Turn-on time: min. 750 ms
• Test pulse duration: max. 1 ms
• Test pulse interval: min. 100 ms
• Breaking capacity: max. 0.25 W
• Switching voltage: 5 ... 24 V
• Switching current: 1 ... 100 mA
• LED power supply: 24 V DC
• Output type: Semiconductor outputs, p-switching, short circuit-proof
• Output voltage: UB-2V ... UB V DC
• Output current: 1 ... 200 mA
• Operating voltage DC: 24 V DC -15% ... +10%
• Current consumption: max. 80 mA
• Connection type: Cable entries M20x1.5
• Switching frequency: 0.25 Hz
• Locking force FZh: 2000 N
• Guard locking principle: Closed-circuit current principle
• PL: e
• Maximum SIL: -
• PFHD: 2.8x10-9
• Category: 4
• Mission time: 20 y
• B10D: 0.13x106
• ECLASS: 27-27-24-05 Safety-related transponder switch with guardlocking
• Primary brand: Euchner
• Order code / Manufacturer SKU: MGB-L1HE-ARA-R-121236 121236
• Manufacturer product status: Commercialized
• Manufacturer description: MULTIFUNCTIONAL GATE BOX COMPLETE
• Connection: (2) M20 x 1.5
• Frequency Rating: 0.25 Hz
• Material: Fiber Glass Reinforced Plastic/Nickel-Plated Die-Cast Zinc/Stainless Steel
• Power Rating: 24 VDC
• Voltage Rating: 30 V
