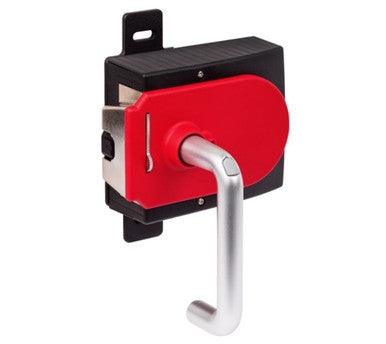

Euchner 106049 MGB-H-AA1A2-R Handle Module (Mounting Plate) MGB-H-AA1A2-R-106049

Product Description

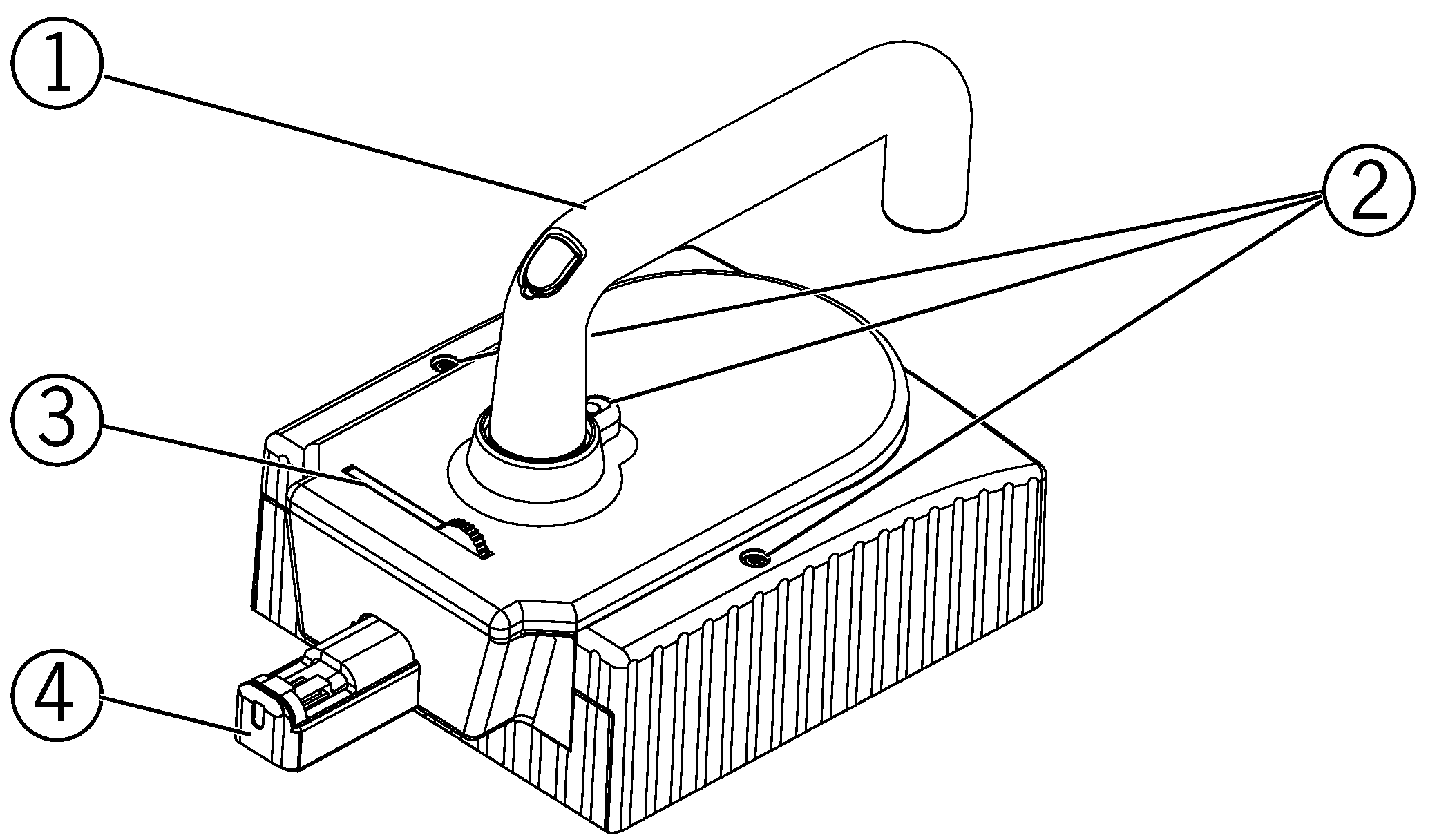

EUCHNER 106049 is a handle module for the MGB multifunctional gate box family that uses an intelligent transponder-detected bolt tongue and an integrated lockout mechanism for safety applications. The module includes a rotatable door handle configurable in 90° steps, convertible actuation direction for left or right hinged doors, and is supplied with a mounting plate. It is IP65 rated and designed for industrial gate box installations.

• Intelligent transponder-detected bolt tongue with lockout mechanism supporting up to three locks for service and cleaning
• Robust door handle rotatable in 90° steps; actuation direction convertible for left or right hinged doors; optional door knob alternative
• Ingress protection IP65; operating temperature -20 to 55 °C; storage temperature -25 to 70 °C; housing of fiber glass reinforced plastic, nickel-plated die-cast zinc, and stainless steel

Product Highlights

Handle module for MGB gate box with transponder detection, lockout for up to three locks, rotatable handle, IP65 protection, and mounting plate included.

Product Information

Standard Information

• Brand: EUCHNER
• Manufacturer Part Number: 106049
• Country of Origin: China

Technical Specifications

• Brand: EUCHNER
• Manufacturer Part Number: 106049
• Alternate Part Number: MGB-H-AA1A2-R-106049
• Item Designation: MGB-H-AA1A2-R-106049
• Type: Gate Box handle module
• Series: Multifunctional Gate Box (MGB) / Spare Part
• Degree of Protection: IP65
• Operating Temperature: -20 to 55 °C
• Storage Temperature: -25 to 70 °C
• Housing Material: Fiber glass reinforced plastic; nickel-plated die-cast zinc; stainless steel
• Includes: Handle module with mounting plate
• Lockout Mechanism: Supports up to 3 locks
• Handle Rotation: Rotatable in 90° steps; actuation direction convertible for left or right hinged doors
• Gross Weight: 1.732 kg
• Weight (lbs): 3.82
• ECLASS: 27-27-24-04 Actuator for safety-related proximity switch
• Customs Tariff Number: 85389099990
• Type of Safety Switch: Gate Box
• Country of Origin: China
