Product Description
Euchner 105745 is a transponder/RFID-based non-contact safety switch (CES-AR-CR2-CH-SA) with Multicode evaluation. It provides door position monitoring via an OUT signal, integrated diagnostic and state LEDs, and is delivered with a 1 m PUR connecting cable with M12 8-pin plug. Designed for surface mounting on metal with right-hinge orientation, it features two redundant semiconductor safety outputs rated to Category 4 / PL e and SIL 3 and IP67 protection.
- Transponder/RFID non-contact sensing with Multicode evaluation and integrated diagnostic/state LEDs
- Two redundant semiconductor safety outputs (p-switching), short-circuit-proof; monitoring output OUT for door position
- Delivered with 1 m PUR connecting cable with M12 8-pin plug; degree of protection IP67, housing plastic (PBT)
Product Highlights
Non-contact transponder safety switch; Category 4 / PL e; SIL 3; IP67; M12 8-pin cable
Product Information
Standard Information
-
Brand: EUCHNER
-
Manufacturer Part Number: 105745
Technical Specifications
-
Brand: Euchner
-
Manufacturer Part Number: 105745
-
Item designation: CES-AR-CR2-CH-SA-105745
-
Series: CES
-
Input Voltage: 24 V DC (-15% ... +15%), regulated, residual ripple <5%
-
Current Consumption: max. 50 mA (without load currents on outputs)
-
Safety Outputs: Two redundant semiconductor outputs (p-switching), short-circuit-proof; rated conditional short-circuit current 100 A
-
Switching Current (per safety output): 1 ... 200 mA
-
Monitoring Output (OUT): p-switching, short-circuit-proof, switching current max. 50 mA
-
Category / PL / SIL: Category 4 / PL e (EN 13849-1); SIL 3 (EN IEC 62061)
-
Rated Insulation Voltage: 75 V
-
Rated Impulse Voltage: 1.5 kV
-
External Fuse (operating voltage): 0.25 ... 8 A (recommended/protection fuse range)
-
Turn-on Time (safety outputs): max. 400 ms
-
Risk Time (EN 60947-5-3): max. 260 ms; extension for each additional device max. 5 ms
-
Degree of Protection: IP67
-

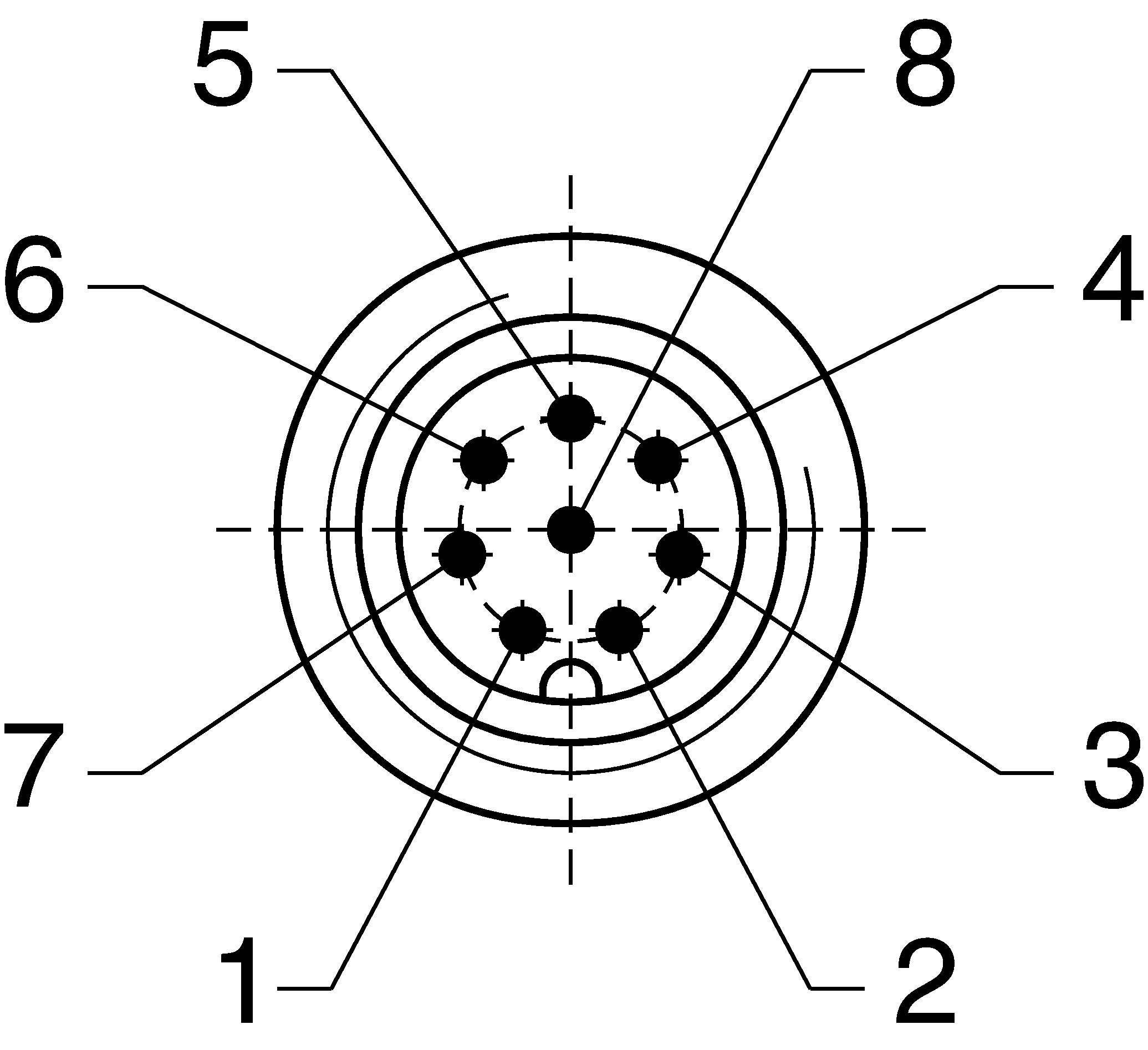

Connection Type: Connecting cable PUR, length 1 m, with M12 8-pin plug connector
-
Cable Ambient Temperature (dynamic/static): -25 ... 65 °C
-
Storage Temperature: -25 ... 70 °C
-

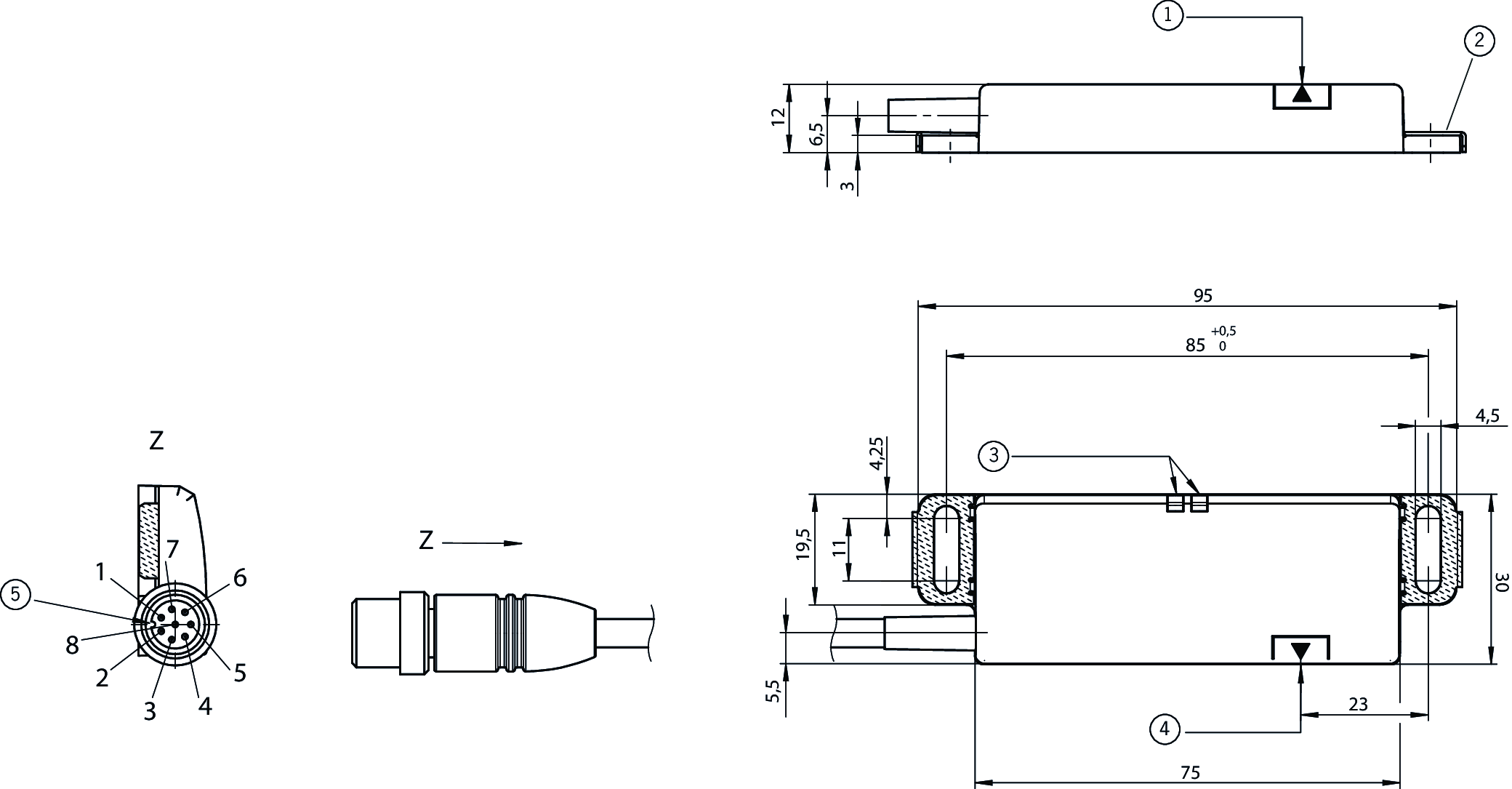

Mounting Type: Surface mounting on metal (right door hinge orientation)
-
Mounting Distance Between Switches: min. 120 mm
-
Switching Frequency: max. 1 Hz
-
Housing Material: Plastic, PBT
-
Fixing Screws Tightening Torque: max. 1 Nm
-
Ready Delay: 10 s
-
Dynamic Bending Radius: 10 x cable diameter
-
Static Bending Radius: 5 x cable diameter
-

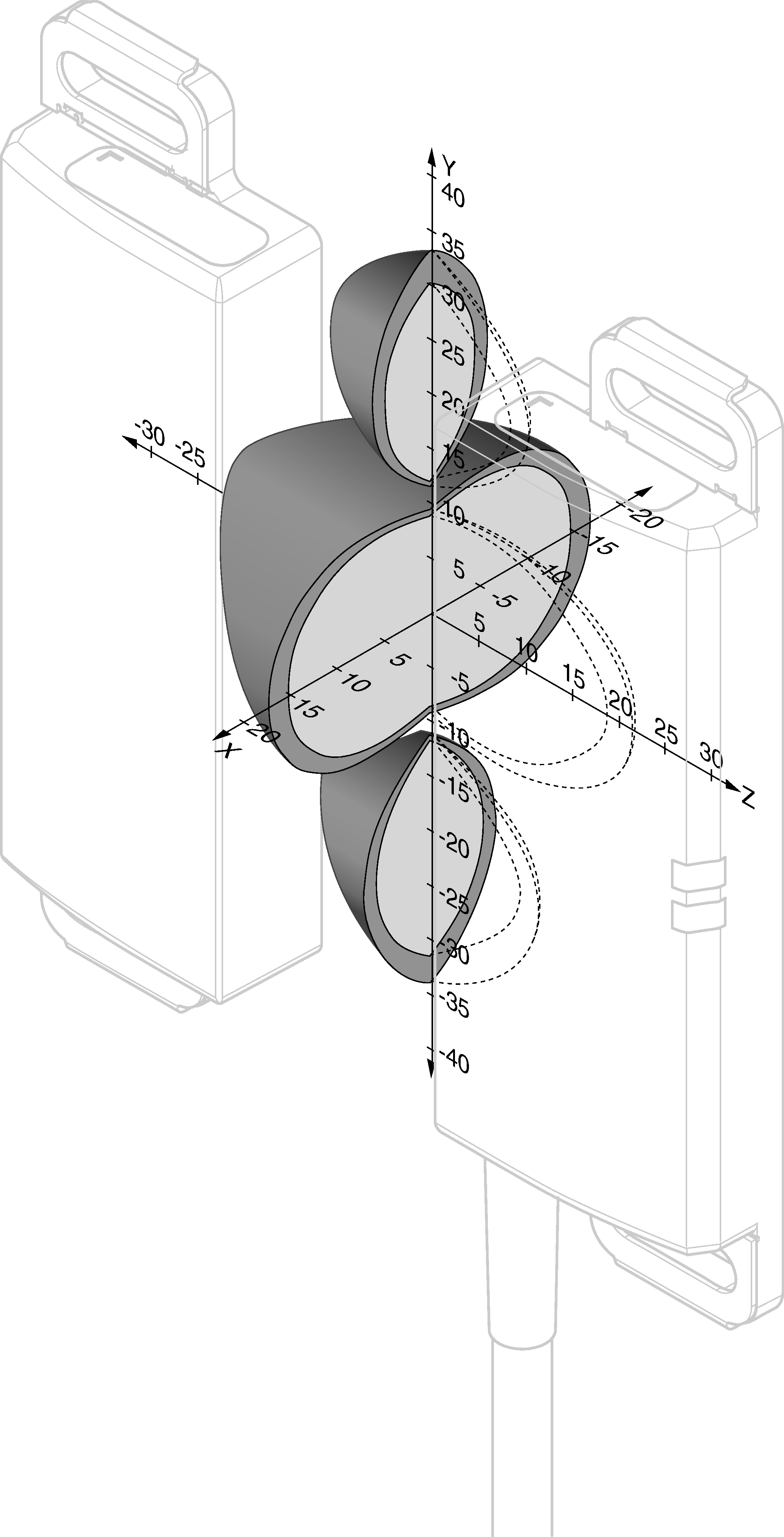

Repeat Accuracy R: 10 % (according to EN 60947-5-2)
-
Gross Weight: 0.11 kg
-
Customs Tariff Number: 85365019000
-
ECLASS: 27-27-24-03 Safety-related transponder switch
