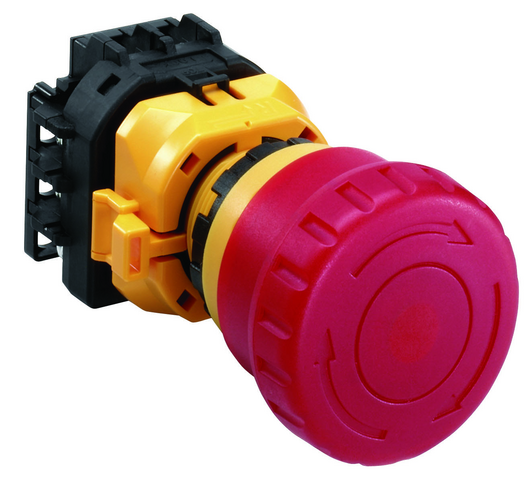

Euchner 105013 ES-XW1E-BV412MFR emergency stop pushbutton 250 V 1 A (22 mm cut-out, 40 mm head)

Product Description

Euchner 105013 (ES-XW1E-BV412MFR) is an emergency stop pushbutton for built-in 22 mm cut-outs with contact block monitoring. It provides two positively driven safety contacts and one normally open contact, resettable by pulling or turning, and connects via screw terminals. Electrical ratings include 250 V insulation voltage and 1 A thermal rated current; mechanical life is 0.25 x 10^6 operations and protection class IP20.

• Contact block monitoring with 2 positively driven (safety) contacts and 1 normally open contact
• Panel-mount for D22 (22 mm) cut-out; button head diameter 40 mm; reset by pulling or turning
• Electrical ratings: 250 V rated insulation voltage, 1 A thermal rated current, minimum switching current 10 mA at 24 V; screw terminal connection

Product Highlights

Panel-mounted emergency stop pushbutton with contact block monitoring, 250 V/1 A rating, D22 cut-out compatibility, IP20 protection

Product Information

Standard Information

• Brand: EUCHNER
• Manufacturer Part Number: 105013

Technical Specifications

• Brand: Euchner
• Manufacturer Part Number: 105013
• Model: ES-XW1E-BV412MFR
• Product Type: Emergency stop pushbutton (built-in / flush-mounted)
• Mounting Cut-out: D22 (22 mm) (EN IEC 60947-5-1)
• Button Head Diameter: 40 mm
• Reset Method: Reset by pulling or turning
• Contact Block Monitoring: Yes
• Contact Configuration: 2 positively driven contacts (safety, NC); 1 normally open contact (NO)
• Connection Type: Screw terminal
• Rated Insulation Voltage (Ui): 250 V
• Thermal Rated Current (Ith): 1 A
• Utilization Category AC-15 (NC): 1.5 A, 250 V
• Utilization Category DC-13 (NC): 1 A, 30 V
• Utilization Category DC-14 (NO): 0.3 A, 250 V
• Minimum Switching Current (at 24 V): 10 mA
• Mechanical Life: 0.25 x 10^6 operations
• Ingress Protection: IP20
• Operating Temperature: -25 ... 60 °C
• Storage Temperature: -25 ... 70 °C
• Contact Material: Silver alloy, gold flashed
• Pushbutton Material: Reinforced thermoplastic
• Housing Material: Polycarbonate
• Standards: EN ISO 13849-1; EN IEC 62061; EN IEC 60947-5-1
• Gross Weight: 0.064 kg
• GTIN: 4047048006058
• Customs Tariff Number: 85365019000
• ECLASS: 27-37-12-44 EMERGENCY-STOP pushbutton, complete device
