Euchner 100184 Connecting Cable M12 5-Pin 60 V 4 A (10 m) C-M12F05-05X034PV10,0-MA-100184

Product Description

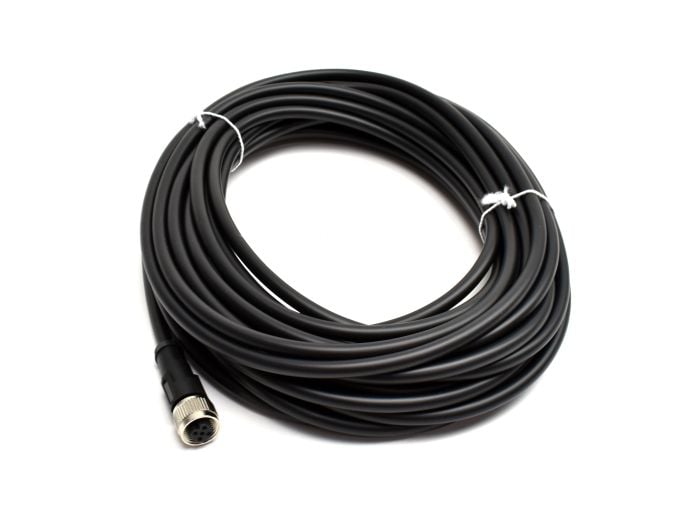

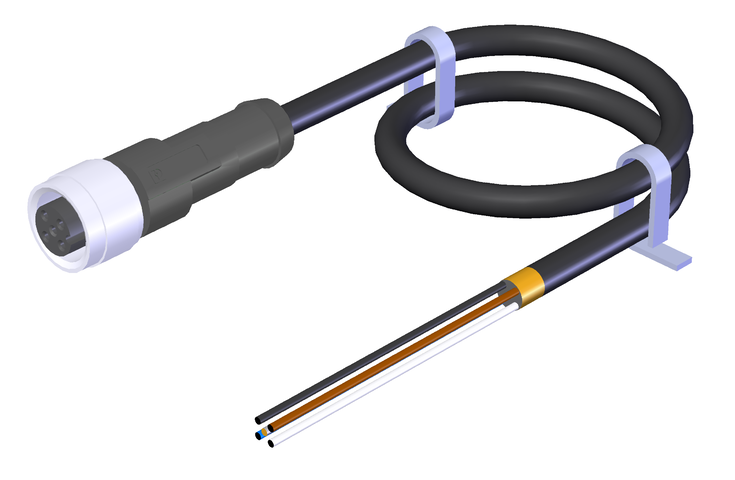

Euchner 100184 is a connecting cable with a straight M12 female 5-pin plug and a 10 m PVC-sheathed flying lead. It is rated for DC voltages up to 60 V and a nominal current of 4 A at 25 C, provides IP67 protection when mated, and uses flame-retardant UL-Style 2464 PVC sheathing. Conductors are flexible bare copper 0.34 mm^2; connector supports about 100 insertion cycles.

• M12x1 female straight plug, 5-pin; plug housing TPU and screw-type CuZn nickel-plated lock
• Electrical ratings: 60 V DC, nominal current 4 A at 25 C; rated impulse voltage 1.5 kV; specific inductance 0.53 mH/km, capacitance 100 nF/km, conductor resistance 58 Ω/km
• Cable: 10 m PVC-sheathed straight cable, approx. 5.9 mm diameter, flame retardant (UL-Style 2464), dynamic temp -5 to 80 C, static temp -25 to 80 C, IP67 when inserted

Product Highlights

10 m M12 5-pin straight cable; 60 V DC, 4 A; IP67 mated; UL-Style 2464 flame retardant

Product Information

Standard Information

• Brand: EUCHNER
• Manufacturer Part Number: 100184

Technical Specifications

• Manufacturer: Euchner
• Brand: Euchner
• Manufacturer Part Number: 100184
• Item designation: C-M12F05-05X034PV10,0-MA-100184
• Product type: Connecting cable with straight plug connector M12, 5-pin, 10 m
• Series: C-M12F05
• Alternate Part Number: C-M12F05-05X034PV10,0-MA-100184
• ASIN: B0G8KXMD7S
• Connector 1: M12x1 female plug, 5-pin
• Connector 2: Flying lead (sheath stripped)
• Number of pins: 5
• Number of conductors: 5
• Conductor cross-section: 0.34 mm^2
• Conductor material: Flexible bare copper
• Conductor insulation material: PVC
• Sheath material: PVC
• Cable length: 10 m
• Cable diameter: approx. 5.9 mm
• Cable type: Straight
• Current rating: 4 A (nominal at 25 C)
• Rated voltage (DC): 60 V
• Rated impulse voltage: 1.5 kV
• Degree of protection: IP67 (in the inserted/mated state)
• Fire behaviour: Flame retardant (UL-Style 2464)
• Plug housing material: TPU
• Plug lock type: Screw connection
• Plug lock material: CuZn, nickel plated
• Insertion cycles: 100
• Specific inductance: 0.53 mH/km
• Specific capacitance: 100 nF/km
• Specific conductor resistance: 58 Ω/km
• Tightening torque: 0.5 Nm
• Dynamic bending radius: 15 x cable diameter
• Static bending radius: 5 x cable diameter
• Storage temperature: -25 to 80 C
• Cable ambient temperature (dynamic): -5 to 80 C
• Cable ambient temperature (static): -25 to 80 C
• UV resistance: Moderately UV resistant
• Drag chain suitability: No
• Insulating material group: I

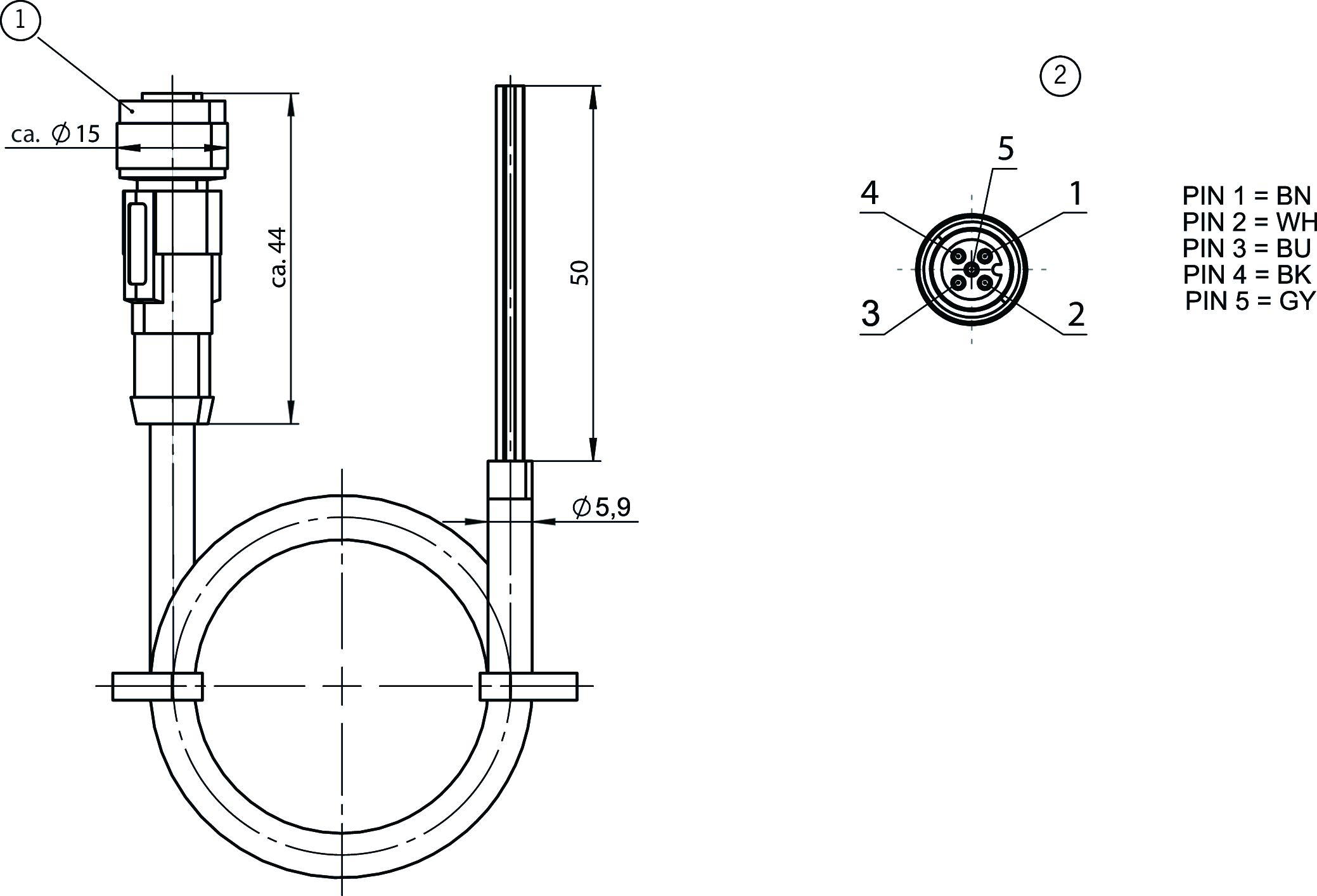

• Conductor identification: Color code
• GTIN: 4047048005525
• Customs tariff number: 85444290900
• ECLASS: 27-06-03-04 Appliance cord (data cable)
