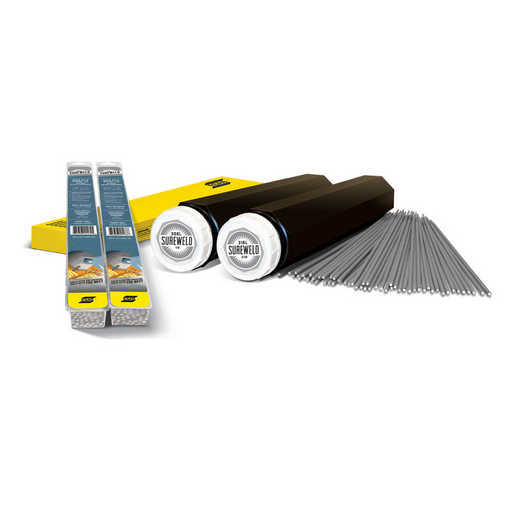

Esab 812000289 Sureweld 7024 Carbon Steel Electrode 1/4 in x 18 in 50 lb Carton ESA812000289

Product Description

Esab 812000289 is a Sureweld 7024 carbon steel stick electrode supplied in a 50 lb carton. This iron-powder, heavy-coated electrode is formulated for high deposition rates on horizontal and downhand welding, providing increased penetration with minimal root porosity. The 1/4 in x 18 in electrode produces equal 45 degree fillets, self-cleaning slag, and good bead appearance for fillet and lap welds on mild and some alloy steels.

• High-deposition, heavy-coated iron powder electrode for horizontal and downhand welding
• Produces equal 45 degree fillets and self-cleaning slag for reduced over-welding and easier slag removal
• Increased penetration with little or no root porosity; meets AWS A5.1 and ASME SFA 5.1 requirements

Product Highlights

Sureweld 7024 E7024 electrode; 1/4 in x 18 in rods; 50 lb carton; suitable for high-speed horizontal fillet and lap welds; AC and DC welding.

Product Information

Standard Information

• Brand: ESAB
• Manufacturer Part Number: 812000289

Technical Specifications

• Brand: Esab
• Manufacturer Part Number: 812000289
• Alternate Part Number: ESA812000289
• Trade Name / Series: Sureweld 7024
• AWS Classification: E7024
• AWS Specification: AWS A5.1
• ASME Specification: ASME SFA 5.1 (A-1, F-2)
• Electrode Diameter: 1/4 in (6.4 mm)
• Electrode Length: 18 in (457 mm)
• Package Weight: 50 lb (22.7 kg)
• Package Type: Carton
• For Welding Position: Horizontal, Downhand
• Welding Current: AC, DC (both polarities)
• Typical Tensile Strength (As Welded): 550 MPa (80 ksi)
• Typical Yield Strength (As Welded): 490 MPa (71 ksi)
• Typical Elongation (As Welded): 26%
• Typical Charpy V-Notch (As Welded): 34 J (25 ft-lb) at -18 C (0 F)
• Typical Weld Metal Analysis (%): C 0.06; Mn 0.80; Si 0.30; S 0.018; P 0.01
• Deposition Data (6.4 x 457 mm / 1/4 x 18 in): Current 350-400 A; Deposition Efficiency 71.7%; Deposition Rate 5.72 kg/h (12.6 lbs/h)
• Deposition Data (3.2 x 356 mm / 1/8 x 14 in): Current 140-180 A; Deposition Efficiency 70.8%; Deposition Rate 2.27 kg/h (5.0 lbs/h)
• Deposition Data (4.0 x 356 mm / 5/32 x 14 in): Current 180-240 A; Deposition Efficiency 69.6%; Deposition Rate 3.18 kg/h (7.0 lbs/h)
• Deposition Data (4.8 x 457 mm / 3/16 x 18 in): Current 245-290 A; Deposition Efficiency 68.1%; Deposition Rate 4.06 kg/h (9.0 lbs/h)
• Deposition Data (5.6 x 457 mm / 7/32 x 18 in): Current 300-340 A; Deposition Efficiency 69.4%; Deposition Rate 5.16 kg/h (11.4 lbs/h)
• Intended Applications: High-speed fillet and lap welds on mild and some alloy steels; earthmoving and construction equipment; truck bodies; ships and barges; railcars
• UNSPSC: 23271810
