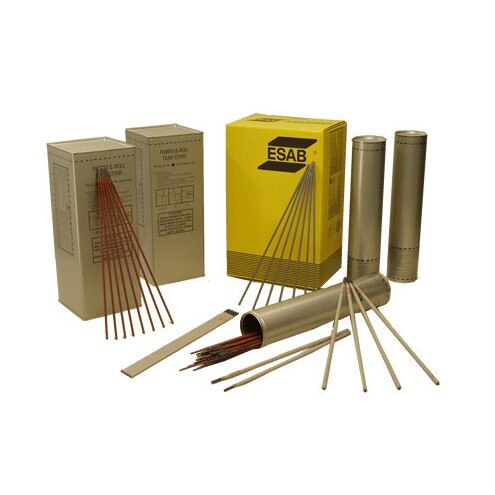

Esab 811070325 Sureweld 810P Stick Electrode 5/32 X 14 in 50-pack

Product Description

The ESAB 811070325 is the Sureweld 810P, an all-position cellulosic stick electrode designed specifically for welding high-strength pipe. Measuring 5/32 inches in diameter and 14 inches in length, it delivers the consistent, deep penetration needed to maintain a proper keyhole during vertical-down welding in open root pipe joints. X-ray quality welds can be produced in flat, horizontal, overhead, vertical-up, and vertical-down positions, making it a versatile choice for demanding pipeline work. Licensed welders and certified pipe welders rely on this electrode where weld integrity and inspection compliance are non-negotiable.

The Sureweld 810P is intended for pipeline construction and maintenance applications involving high-strength pipe. It is recommended for welding API grades X60, X65, and X70 pipe. This electrode is well suited to field welding scenarios where open root joint procedures are standard, including cross-country pipeline projects and industrial piping systems. The all-position capability allows crews to maintain consistent weld quality regardless of joint orientation encountered on the job.

Key Features

• All-position cellulosic electrode — qualified for flat, horizontal, overhead, vertical-up, and vertical-down welding
• Consistent deep penetration maintains proper keyhole geometry in open root pipe joints
• Produces X-ray quality joints meeting pipeline inspection standards
• Recommended for API grade X60, X65, and X70 high-strength pipe
• 5/32-inch diameter by 14-inch length suits common pipe welding procedures
• Sold in a 50-electrode pack, matching standard minimum order quantities for field use

Compatibility

Designed for welding API grades X60, X65, and X70 high-strength pipe in open root joint applications using vertical-down and other all-position procedures.

Installation Notes

Installation and use of stick electrodes on pipeline systems should be performed by certified welders following applicable welding procedure specifications (WPS) and codes such as API 1104 or ASME B31.8. Power down and de-energize the welding circuit before changing electrodes or adjusting connections. Store electrodes in a dry environment and follow manufacturer conditioning guidelines to prevent moisture pickup, which can affect arc performance and weld quality. Inspection requirements for the applicable pipeline specification should be confirmed before beginning any weld procedure.

Technical Specifications

• Electrode Diameter: 5/32 inches
• Electrode Length: 14 inches
• Electrode Type: Cellulosic, All-Position
• Compatible Pipe Grades: API X60, X65, X70
• Pack Quantity: 50 electrodes
• Weight: 1 pound
• UPC: 662303028015

Standard Information

• Brand: ESAB
• Manufacturer Part Number: 811070325
