Product Description

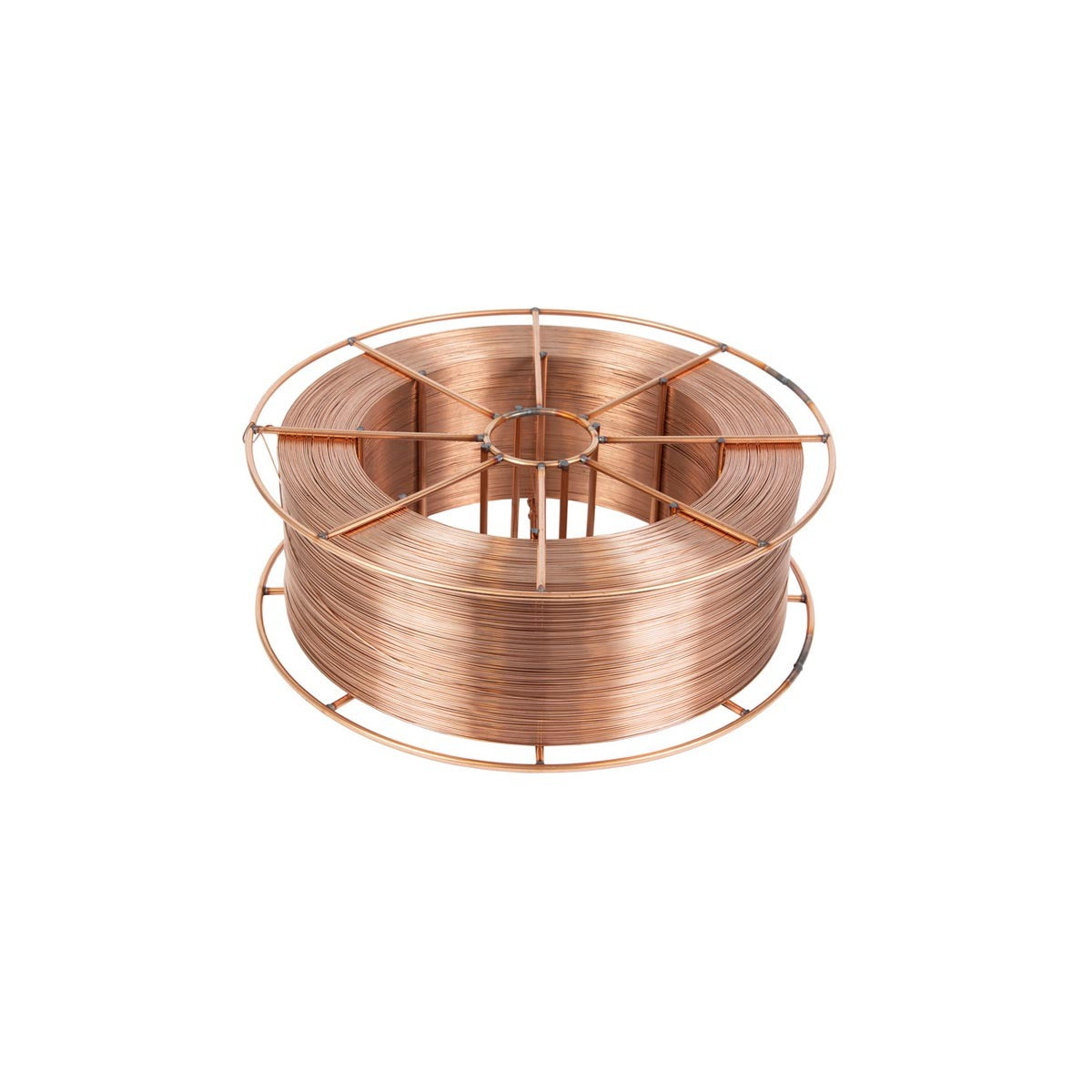

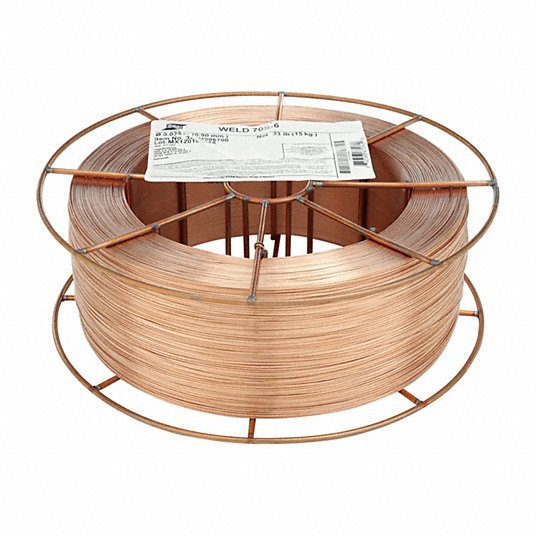

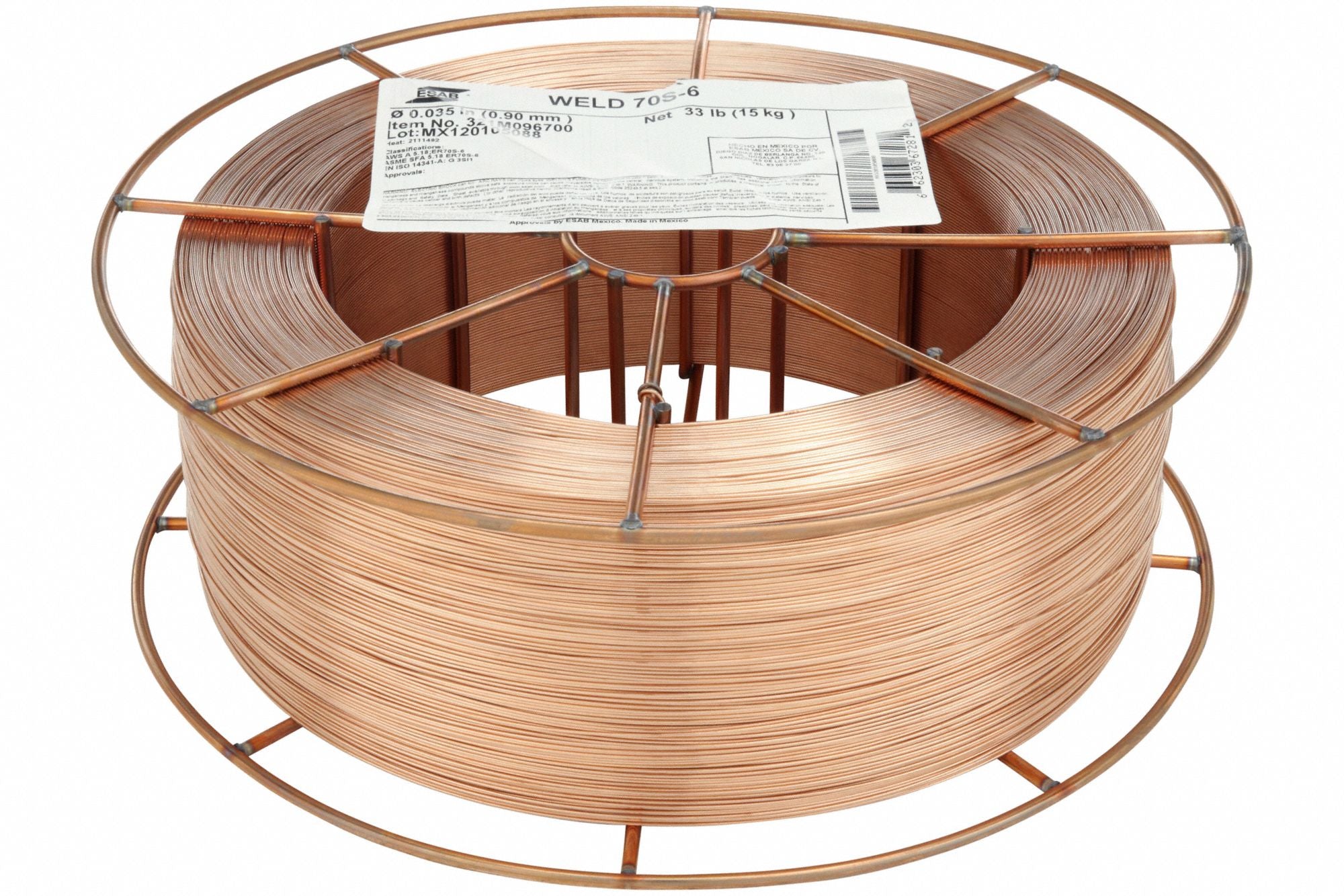

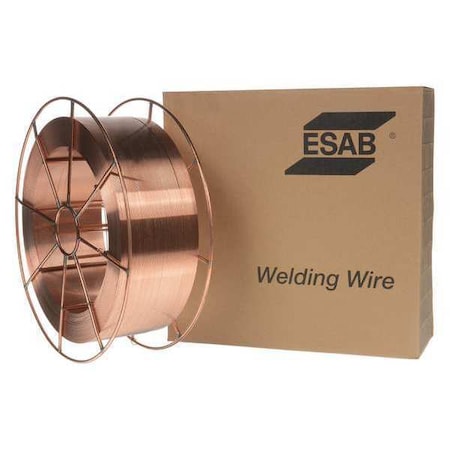

ESAB 321M096700 is a copper-coated AWS ER70S-6 .035 in solid MIG welding wire supplied on a 33 lb, 12 in spool. The wire is intended for general-purpose manual and semiautomatic GMAW (MIG) applications on carbon steel and is manufactured to meet AWS standards. Documented welding parameters support spray and short-arc transfer modes and compatibility with CO2 and argon/carbon dioxide shielding gases.
- Copper-coated solid wire, AWS classification ER70S-6 for MIG welding
- Supplied on a 33 lb (approximately 15 kg) 12 in spool / wire basket for workshop use
- Suitable for GMAW (MIG) with DCEP polarity; compatible with 100% CO2 or 75% Ar/25% CO2 shielding gases
Product Highlights
0.035 in ER70S-6 copper-coated solid MIG wire on 33 lb, 12 in spool; for carbon steel GMAW; meets AWS A5.18 and EN ISO 14341-A.
Product Information
Standard Information
-
Brand: ESAB
-
Manufacturer Part Number: 321M096700
-
Country of Origin: Mexico
Technical Specifications
-
Brand: ESAB
-
Manufacturer Part Number (MPN): 321M096700
-
Product Name: Weld 70S-6
-
Series: Weld 70S-6
-
AWS Classification: ER70S-6
-
Standards: AWS A5.18; EN ISO 14341-A
-
Wire Diameter: 0.035 in (0.9 mm)
-
Wire Type: Solid
-
Finish/Coating: Copper-coated
-
Material: Carbon steel (mild steel)
-
Process: MIG welding (GMAW)
-
Welding Current Designation: DCEP
-
Shielding Gas Compatibility: 100% CO2; 75% Ar / 25% CO2
-
Welding Positions: Flat, Horizontal, Overhead, Vertical-Down, Vertical-Up
-
Weight: 33 lb (15 kg)
-
Spool Type: Wire basket / steel spool (12 in)
-
Spool Diameter: 12 in
-
Spool Width: 4 in
-
Spool Arbor Hole Diameter: 2 in
-
Tensile Strength (As Welded): 75 ksi (100% CO2); 84 ksi (75% Ar/25% CO2)
-
Yield Strength (As Welded): 61 ksi (100% CO2); 70 ksi (75% Ar/25% CO2)
-
Yield Strength (Minimum Required): 58 ksi
-
Elongation (As Welded): 28% (100% CO2); 26% (75% Ar/25% CO2)
-
Tensile Strength (Minimum Required): 70 ksi
-
Typical Deposition Data (0.035 in): Current: 80-175 A; Voltage: 17-22 V; Wire feed speed: 2.5-6.4 m/min (98-252 in./min)
-
UPC: 662303672812
-
Country of Origin: Mexico
