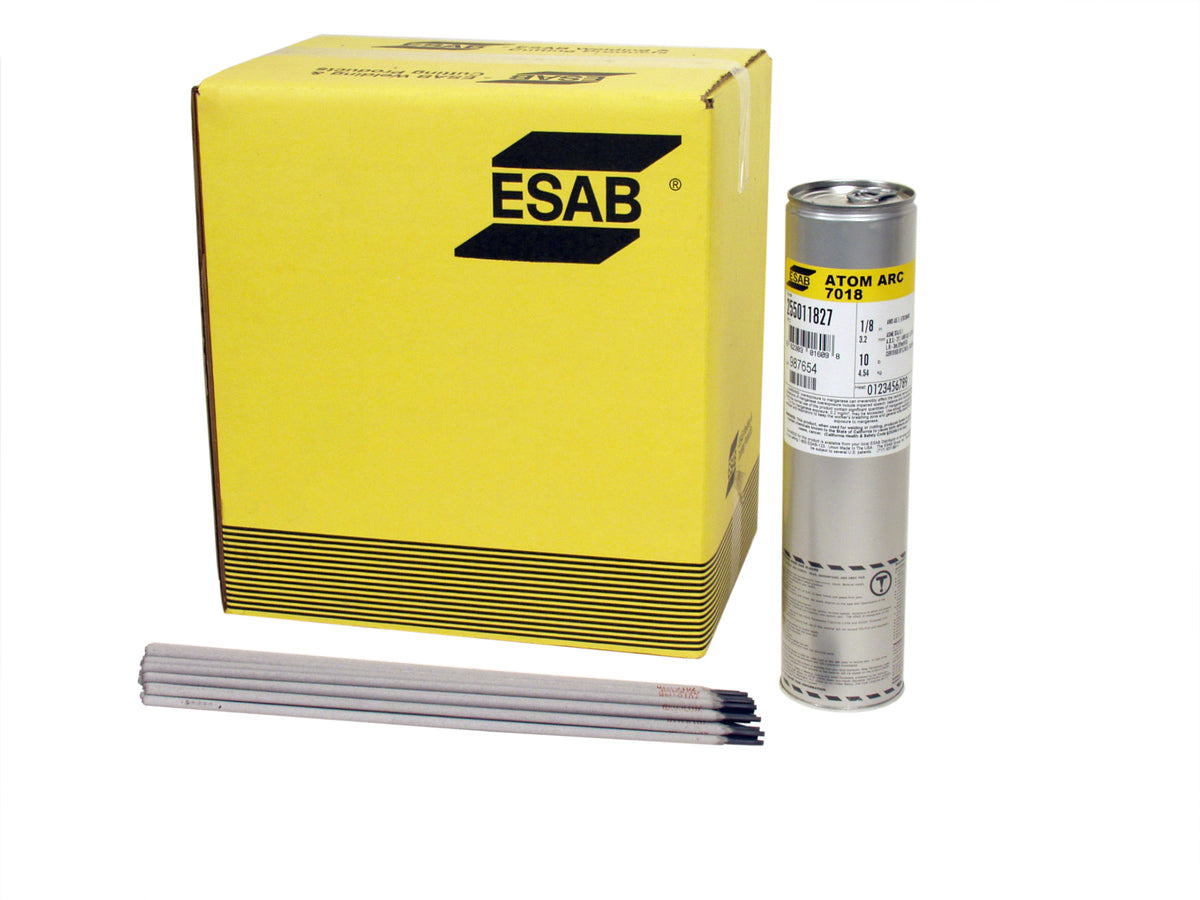

Esab 255011850 Atom Arc E7018-1 Carbon Steel Electrode 1/8 inches x 14 inches 10 lb

Product Description

The ESAB 255011850 Atom Arc E7018-1 carbon steel electrode comes in a 10 lb hermetically sealed container. This all-position, low hydrogen iron powder electrode is designed for welding carbon and low alloy steels, including higher strength steels when under matching welds are specified. The electrode provides smooth metal transfer and easy slag removal.

• Smooth metal transfer minimizes spatter, and complete slag coverage allows for easy removal.
• Excellent for welding higher strength steels when under matching welds are specified.
• Provides exceptional impact toughness at low service temperatures.

Product Highlights

This electrode is an excellent choice for welders of all skill levels, delivering tough mechanical properties in challenging environments.

Product Information

Standard Information

• Brand: ESAB
• Manufacturer Part Number: 255011850

Technical Specifications

• AWS Classification: E7018-1
• Electrode Length: 14"
• Diameter: 1/8"
• Trade Name: Atom Arc®
• Brand: ESAB
• MPN: 255011850
• Classifications ASME SFA 5.1: E7018-1H4R
• AWS A5.1: E7018-1H4R
• ABS: E7018-1 (H4R)
• CWB: E4918-1-H4
• DNV-GL: 3 YH5
• LR: 3Y H10
• Welding Current: AC, DC+
• Diffusible Hydrogen: < 4.0 ml/100g
• Alloy Type: Carbon Manganese
• Yield Strength As Welded: 467 MPa ( 68 ksi )
• Tensile Strength As Welded: 551 MPa ( 80 ksi )
• Elongation As Welded: 30 %
• Yield Strength Stress Relieved 8 hour(s) 621 °C ( 1150 °F ): 415 MPa ( 60 ksi )
• Tensile Strength Stress Relieved 8 hour(s) 621 °C ( 1150 °F ): 510 MPa ( 74 ksi )
• Elongation Stress Relieved 8 hour(s) 621 °C ( 1150 °F ): 33 %
• Impact Value As Welded -46 °C ( -51 °F ): 123 J ( 91 ft-lb )
• Impact Value Stress Relieved 8 hour(s) 621 °C ( 1150 °F ) -46 °C ( -51 °F ): 224 J ( 166 ft-lb )
• C: 0.04
• Mn: 1.30
• Si: 0.30
• S: 0.015
• P: 0.014
• Deposition Efficiency (%) 2.4 x 356 mm ( 3/32 x 14.0 in. ): 69.01 %
• Burn-off Time/Electrode 2.4 x 356 mm ( 3/32 x 14.0 in. ): 60 sec
• Deposition Rate @ 90% I max 2.4 x 356 mm ( 3/32 x 14.0 in. ): 0.92 kg/h ( 2.0 lbs/h )
• Deposition Efficiency (%) 3.2 x 356 mm ( 1/8 x 14.0 in. ): 72.23 %
• Burn-off Time/Electrode 3.2 x 356 mm ( 1/8 x 14.0 in. ): 70 sec
• Deposition Rate @ 90% I max 3.2 x 356 mm ( 1/8 x 14.0 in. ): 1.36 kg/h ( 3.0 lbs/h )
• Deposition Efficiency (%) 4.0 x 356 mm ( 5/32 x 14.0 in. ): 72.06 %
• Burn-off Time/Electrode 4.0 x 356 mm ( 5/32 x 14.0 in. ): 75 sec
• Deposition Rate @ 90% I max 4.0 x 356 mm ( 5/32 x 14.0 in. ): 1.89 kg/h ( 4.2 lbs/h )
• Deposition Efficiency (%) 4.8 x 356 mm ( 3/16 x 14.0 in. ): 71.04 %
• Burn-off Time/Electrode 4.8 x 356 mm ( 3/16 x 14.0 in. ): 74 sec
• Deposition Rate @ 90% I max 4.8 x 356 mm ( 3/16 x 14.0 in. ): 2.53 kg/h ( 5.6 lbs/h )
• Deposition Efficiency (%) 5.6 x 457 mm ( 7/32 x 18.0 in. ): 75.80 %
• Burn-off Time/Electrode 5.6 x 457 mm ( 7/32 x 18.0 in. ): 100 sec
• Deposition Rate @ 90% I max 5.6 x 457 mm ( 7/32 x 18.0 in. ): 3.28 kg/h ( 7.2 lbs/h )
• Deposition Efficiency (%) 6.4 x 457 mm ( 1/4 x 18.0 in. ): 77.06 %
• Burn-off Time/Electrode 6.4 x 457 mm ( 1/4 x 18.0 in. ): 103 sec
• Deposition Rate @ 90% I max 6.4 x 457 mm ( 1/4 x 18.0 in. ): 4.22 kg/h ( 9.3 lbs/h )
• ASME SFA 5.1: ASME SFA 5.1
• ABS-3,3Y(H10): ABS-3,3Y(H10)
• Certified By: CWB-CSA W48
• DNV-3Y (H10): DNV-3Y (H10)
• LR-3m, 3Ym (H10): LR-3m, 3Ym (H10)
• Weight: 10 lb
• Package: Hermetically Sealed Can
• Nominal Diameter: 1/8 in
• Nom. Length: 14 in
• Container Size: 10 lb
• Container Type: Can
• Finish/Coating: Low-Hydrogen Iron Powder Coated
• For Welding Position: All
• Overall Length: 14 in
• Series: 7018-1
• Tensile Strength: 81 ksi
• Yield Strength: 69 ksi
• MFG: 255011850
• Subcategory: Welding Consumables
• UNSPSC: 23271810
• Part #: 255011850
