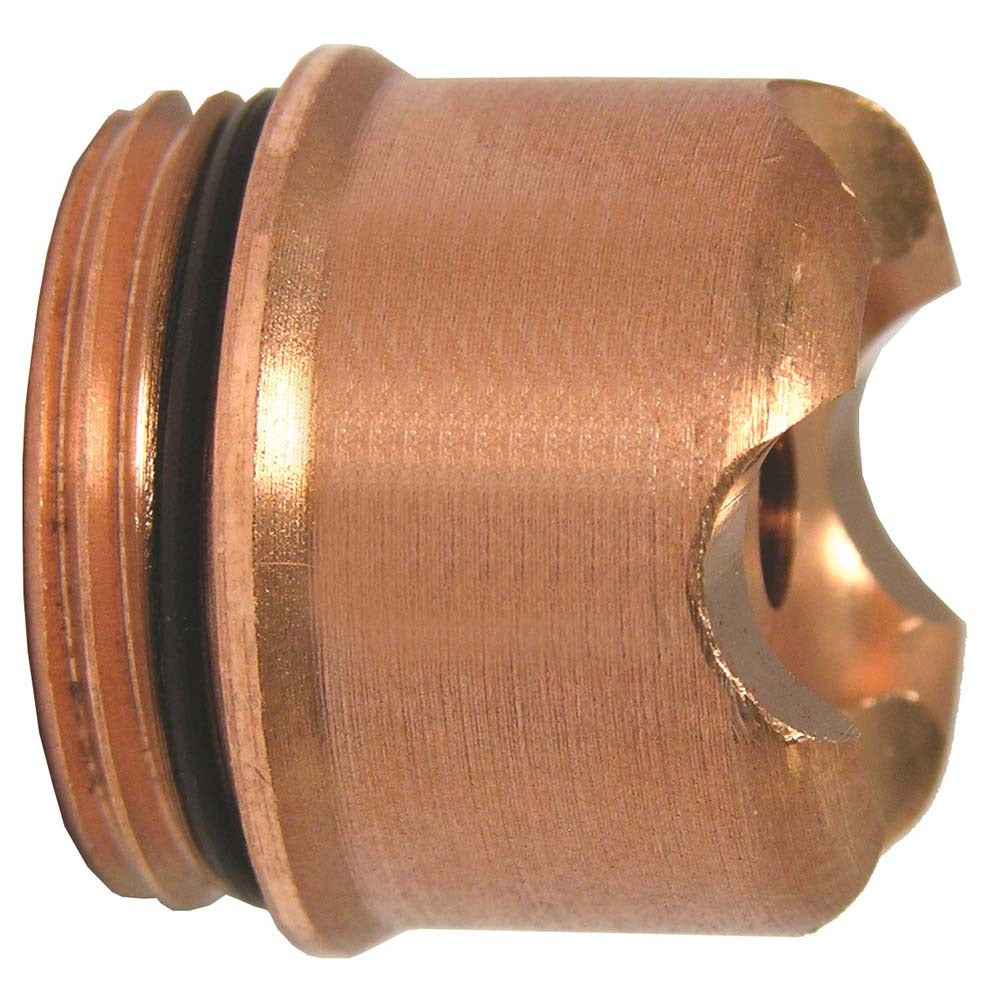

Esab 2314056 Drag Shield Cup SL60 SL100

Product Description

The ESAB 2314056 is a drag shield cup designed for plasma cutting torch service on Thermal Dynamics 1 Torch SL60 and SL100 systems. The shield cup mounts at the front end of the torch body and provides standoff contact guidance during drag-cutting operations, protecting the nozzle and electrode from direct workpiece contact while maintaining consistent arc-to-work distance. It is a consumable replacement part installed by plasma cutting technicians and fabricators performing routine torch maintenance or rebuilding a cutting head assembly.

This drag shield cup is suited for manual plasma cutting applications in fabrication shops, metal service centers, and field cutting environments where the SL60 or SL100 torch is in regular use. Drag-cutting technique allows the torch tip to rest directly on the workpiece, making this cup a high-wear item that requires periodic replacement to maintain cut quality and protect upstream torch components.

Key Features

• Drag shield cup design allows direct contact with workpiece during cutting passes
• Protects nozzle and electrode from premature wear during drag-cutting technique
• OEM-style replacement for Thermal Dynamics 1 Torch SL60 and SL100 platforms
• Single-unit packaging supports per-job or as-needed consumable restocking
• Lightweight at 0.5 pounds for easy handling during torch rebuilds

Compatibility

Designed for use with the Thermal Dynamics 1 Torch SL60 and SL100 plasma cutting torches, as specified by the manufacturer.

Installation Notes

Installation is performed by a qualified plasma cutting technician. Always power down the plasma cutting system and disconnect it from the power source before servicing any torch consumables. Thread or seat the shield cup according to the torch manufacturer's assembly sequence to avoid cross-threading or improper seating. Inspect the nozzle and electrode condition whenever replacing the shield cup, as these consumables typically wear in tandem.
