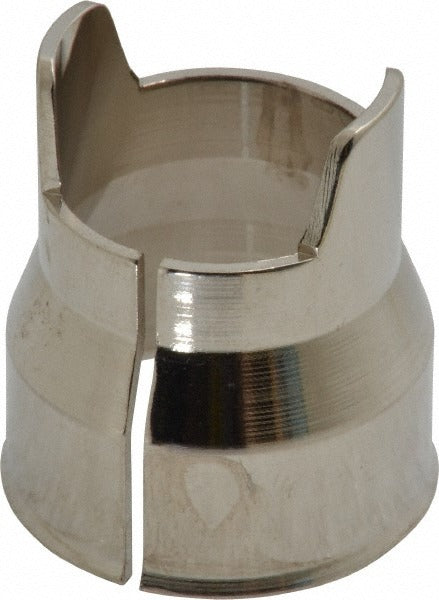

Esab 21420 Plasma Cutter Standoff Guide PT-23-XT

Product Description

The ESAB 21420 is a standoff guide accessory designed for plasma cutting applications. It mounts to the torch tip to maintain a consistent, fixed distance between the torch nozzle and the workpiece surface during cutting. This consistent standoff distance improves cut quality by stabilizing arc characteristics and reducing tip wear from direct contact with the metal. The part weighs 0.03 pounds, making it a lightweight addition to the torch assembly. It is intended for use with PT-23-XT consumables. Plasma cutting technicians and fabrication professionals working with ESAB PT-23-XT torch setups will find this guide useful for repetitive cutting tasks requiring uniform kerf and edge quality.

This standoff guide is suited for use in fabrication shops, metal service centers, and field cutting environments where the PT-23-XT torch is in service. It is particularly useful when running straight cuts or working on flat stock where maintaining a precise torch-to-work distance is critical to achieving consistent results. The guide reduces operator fatigue by eliminating the need to manually gauge travel height during extended cutting runs.

Key Features

• Maintains fixed torch-to-work distance for consistent cut quality
• Reduces tip wear by preventing direct nozzle contact with the workpiece
• Lightweight construction at 0.03 pounds adds minimal mass to the torch assembly
• Designed specifically for use with PT-23-XT consumables
• Helps reduce operator fatigue during extended straight-line cutting operations

Compatibility

Designed for use with PT-23-XT consumables as specified by ESAB.

Installation Notes

Installation is performed by a qualified plasma cutting technician or welder-fabricator. Disconnect and power down the plasma cutting unit before attaching or removing any torch accessories. Verify that the standoff guide is fully seated and secured before resuming cutting operations. Consult the PT-23-XT torch documentation for any torch-specific assembly guidance.
