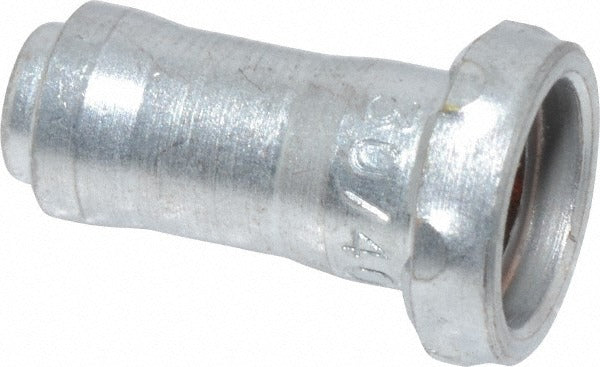

Esab 20860 Plasma Cutter Xt Tip 30 Amp PT-31XL

Product Description

The ESAB 20860 is a 30-amp XT-style replacement tip designed for plasma cutting torches. It functions as a consumable electrode contact point, channeling the plasma arc during the cutting process to produce a clean, focused cut. Rated at 30 amps, this tip is suited for light to medium-duty plasma cutting work on sheet metal and thin plate. Licensed welding and cutting professionals as well as experienced fabricators install and replace these consumables as part of routine torch maintenance to maintain cut quality and prevent torch damage from worn contact surfaces.

This tip is designed for use with PT-31XL consumables, making it a direct-fit replacement for systems running that torch configuration. It is commonly found in both shop and field service settings where plasma cutting is performed on steel, stainless, and other electrically conductive materials. The 30-amp rating positions this tip for thinner material applications typical in light fabrication, HVAC sheet metal work, and maintenance cutting tasks.

Key Features

• 30-amp rating suited for light to medium-duty plasma cutting applications
• XT-style tip design for use with PT-31XL consumable torch systems
• Single-piece consumable for straightforward field replacement
• Maintains arc focus and cut quality when replaced at proper service intervals

Compatibility

Designed for use with PT-31XL consumables at a 30-amp operating level. Confirm torch model and amperage rating before installation to ensure proper fitment.

Installation Notes

Plasma cutter tips are replaced by trained welding and cutting technicians familiar with torch consumable service procedures. Before replacing the tip, power down the plasma cutter and disconnect it from its power source to prevent accidental arc initiation. Use the appropriate consumable wrench or removal tool as recommended for the torch model to avoid thread damage. Inspect the electrode and shield cup during the same service interval, as consumables typically wear together.
