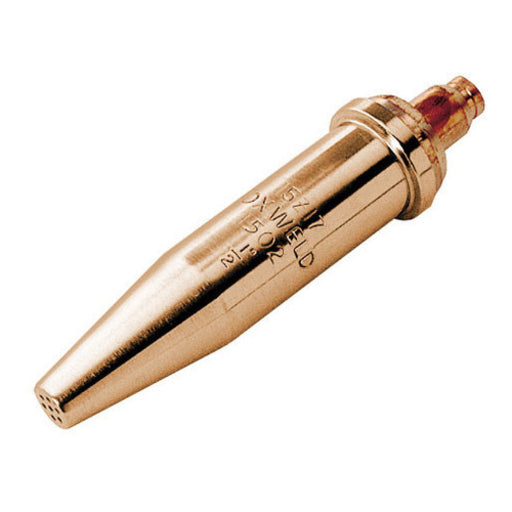

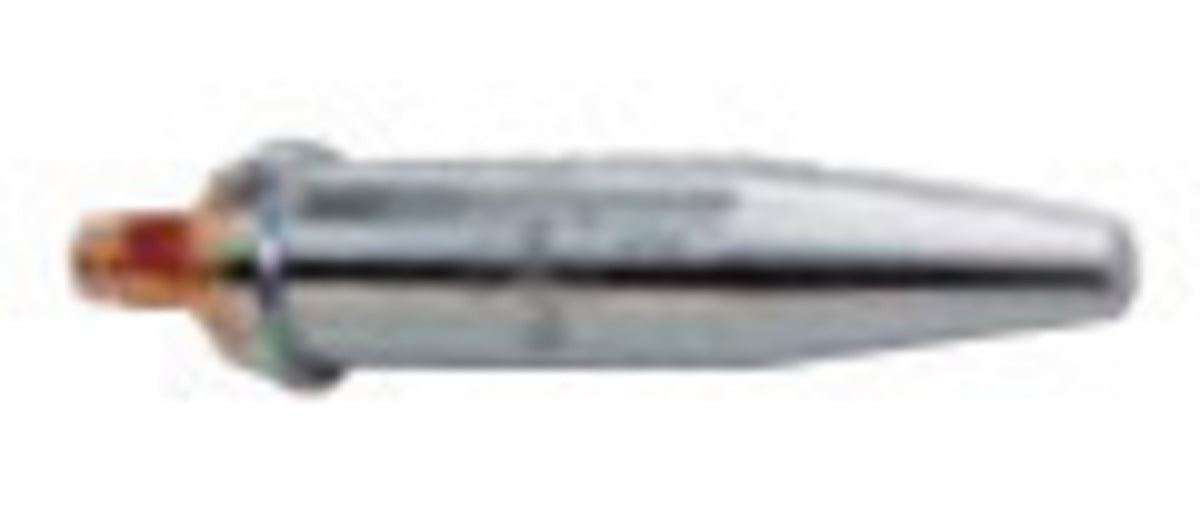

Esab 15Z17 Oxweld 1502 One Piece Cutting Tip Size 4

Product Description

The Esab 15Z17 is a Size 4 Oxweld-style 1502 one-piece cutting tip for oxy-fuel cutting that cuts up to 1/2 inch metal thickness. It is a medium preheat nozzle with six preheat holes, a cutting speed of 15–23 inches per minute and an average kerf width of 0.065 inch. Recommended gas pressures and consumption are specified for cutting oxygen, preheat oxygen, and acetylene for hand or machine cutting and beveling.

• Medium preheat one-piece 1502 tip with 6 preheat holes for concentrated preheat flames
• Cuts up to 1/2 inch thick metal; cutting speed 15–23 in/min; average kerf width 0.065 inch
• Recommended pressures: cutting oxygen 35–40 PSIG, preheat oxygen 20–25 PSIG, acetylene 5–7 PSIG; oxygen 65–75 CFH, acetylene 8–10 CFH

Product Highlights

Size 4 1502 one-piece cutting tip; medium preheat with 6 preheat holes; cuts up to 1/2 inch; specified gas pressures, consumption, and cutting speed

Product Information

Standard Information

• Brand: ESAB
• Manufacturer Part Number: 15Z17
• Country of Origin: United States

Technical Specifications

• Brand: ESAB
• MPN: 15Z17
• Part Number / SKU: ESA15Z17
• Series: 1502
• Tip Size: 4 (1/2 inch cut)
• Tip Type: One Piece
• Torch Manufacturer: Oxweld
• Fuel Gas: Acetylene
• Preheat: Medium (6 preheat holes)
• Preheat Holes: 6
• Cutting Capacity: Up to 1/2 inch
• Cutting Speed: 15 - 23 inches per minute
• Kerf Width (average): 0.065 inch
• Oxygen Cutting Pressure: 35 - 40 PSIG
• Preheat Oxygen Pressure: 20 - 25 PSIG
• Acetylene Pressure: 5 - 7 PSIG
• Oxygen Consumption: 65 - 75 CFH (total oxygen)
• Acetylene Consumption: 8 - 10 CFH
• Applications: Beveling; cutting dirty plate; general-purpose hand and machine cutting
• Tip Material: Copper
• Dimensions: 3.4 x 0.9 x 0.7 inches
• ASIN: B00HMZZ30I
• UNSPSC: 23271711
