Esab 13N25 Tig Torch Collet Body 0.5mm HW-20 HW-9 HW-25

Product Description

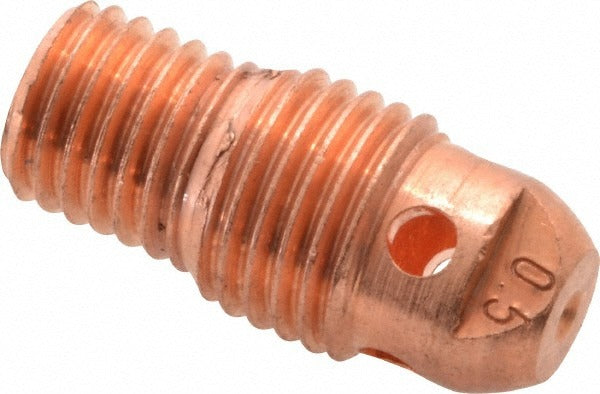

The ESAB 13N25 is a 0.5mm collet body designed for TIG welding torch applications. The collet body seats and aligns the tungsten electrode within the torch head, maintaining consistent electrode positioning during the weld. It is a direct consumable replacement used in production and repair welding environments across fabrication shops, pipe welding, and precision manufacturing. Licensed welders and certified welding technicians install this component as part of routine torch maintenance. At 0.5mm, this collet body is suited for fine-detail TIG work where precise arc control and electrode stability are critical.

The 13N25 collet body is compatible with HW-20, HW-9, and HW-25 series TIG torch bodies. These torches are commonly found in both light industrial and professional fabrication settings. The 0.5mm sizing makes it appropriate for applications requiring small-diameter tungsten electrodes, including thin-gauge stainless, aluminum, and exotic alloy welding where heat input control is important.

Key Features

• 0.5mm bore size for small-diameter tungsten electrode use
• Designed as a replacement consumable for HW-20, HW-9, and HW-25 TIG torches
• Industry standard part number 13N25 for cross-reference sourcing
• Lightweight construction at 0.01 pounds for easy handling during torch assembly
• Sold individually; minimum order quantity is 5 units

Compatibility

Compatible with HW-20, HW-9, and HW-25 series TIG torch collet assemblies as stated by the manufacturer.

Installation Notes

Installation is performed by a qualified welder or welding equipment technician. Disconnect the torch from the power source and allow it to cool completely before disassembling the torch head. Thread the collet body into the torch head by hand to avoid cross-threading, then snug with appropriate torch tooling. Do not overtighten, as collet body threads are precision-machined and susceptible to damage from excessive force.
