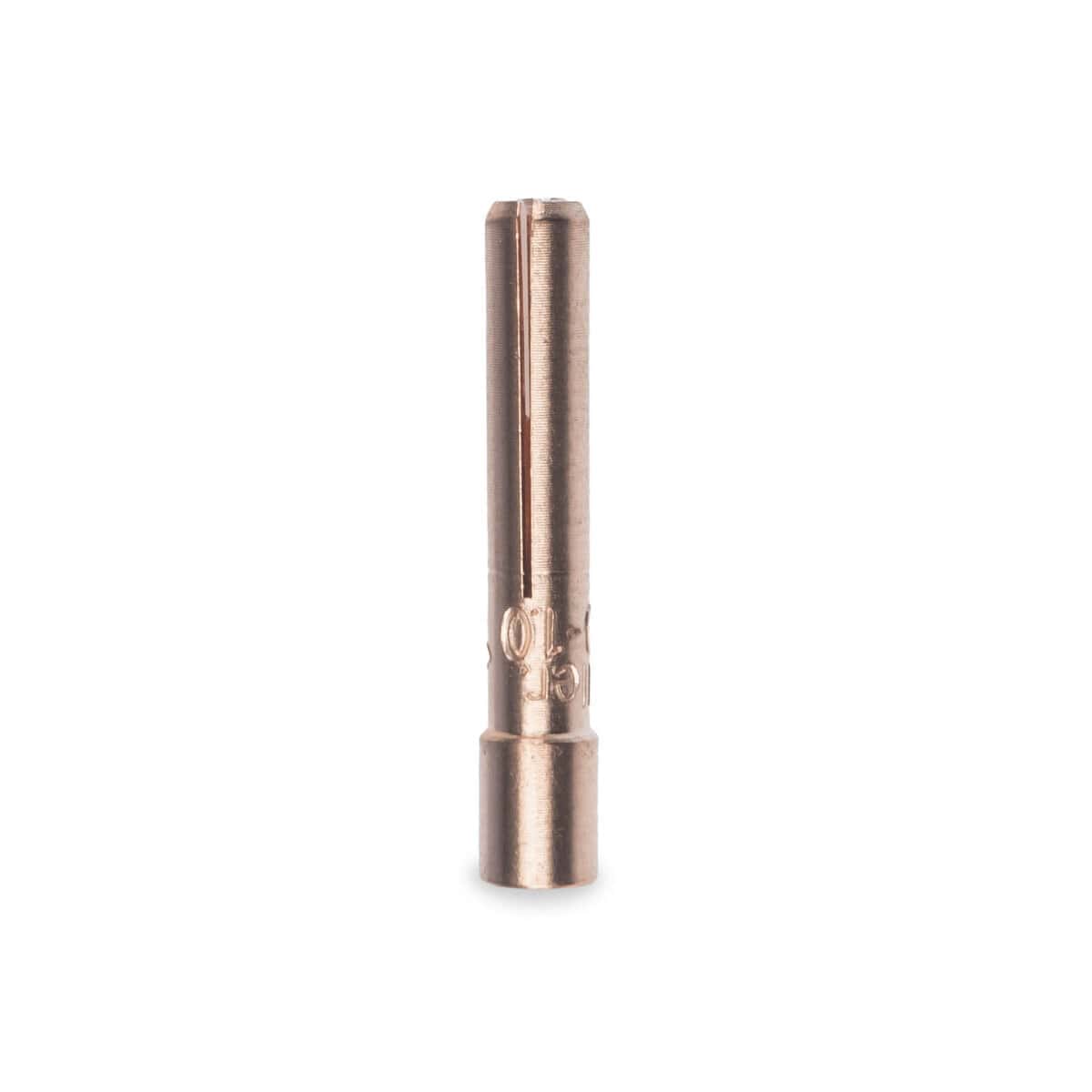

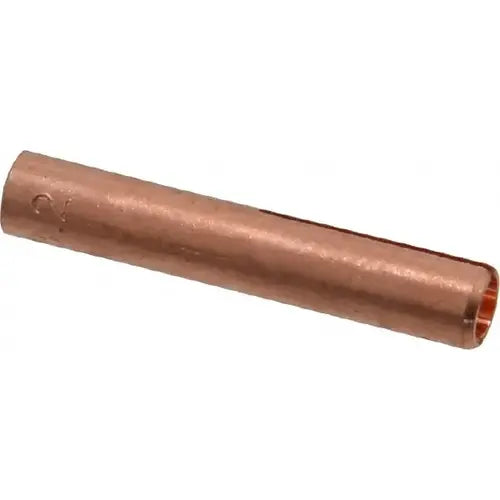

Esab 13N24 Standard Collet 300 A (1/8 inch) 13N24-XCP1

Product Description

The ESAB 13N24 collet is a consumable designed to secure 1/8 inch (3.2 mm) tungsten electrodes in water-cooled TIG torches, rated for use up to 300 A. It fits Genuine Heliarc HW-9, HW-20, and HW-25 torch models and is compatible with 9/20/25 series collet bodies. Constructed from a copper alloy, the collet provides electrical contact, thermal dissipation, and concentric electrode clamping for GTAW/TIG applications.

• Holds 1/8 inch (3.2 mm) tungsten electrodes with a radial compression split-sleeve design for concentric clamping
• Rated for up to 300 A and designed for use in water-cooled TIG torches; fits HW-9, HW-20, and HW-25 models
• Copper alloy construction for electrical conductivity and thermal dissipation; available individually or in 5-pack packaging

Product Highlights

1/8 inch collet for HW-9/HW-20/HW-25 torches; 300 A rating; copper alloy; sold each or in 5-pack

Product Information

Standard Information

• Brand: ESAB
• Manufacturer Part Number: 13N24

Technical Specifications

• Brand: ESAB
• MPN: 13N24
• Alternate Part Numbers: 13N24-XCP1
• Product Type: Collet (consumable)
• Tungsten Diameter: 1/8 inch (3.2 mm)
• Amperage Rating: 300 A
• Cooling Method: For use in water-cooled TIG torches (also compatible with air-cooled 9/20/25 series torch bodies)
• Compatible Torch Models: Genuine Heliarc HW-9, HW-20, HW-25; compatible with 9/20/25 series including WP-9, WP-20, WP-25
• Material: Copper alloy
• Packaging: Each; pack of 5
• For Use With: HW-20, HW-9, HW-25
• UPC (variant 13N24-XCP1): 662067000982
