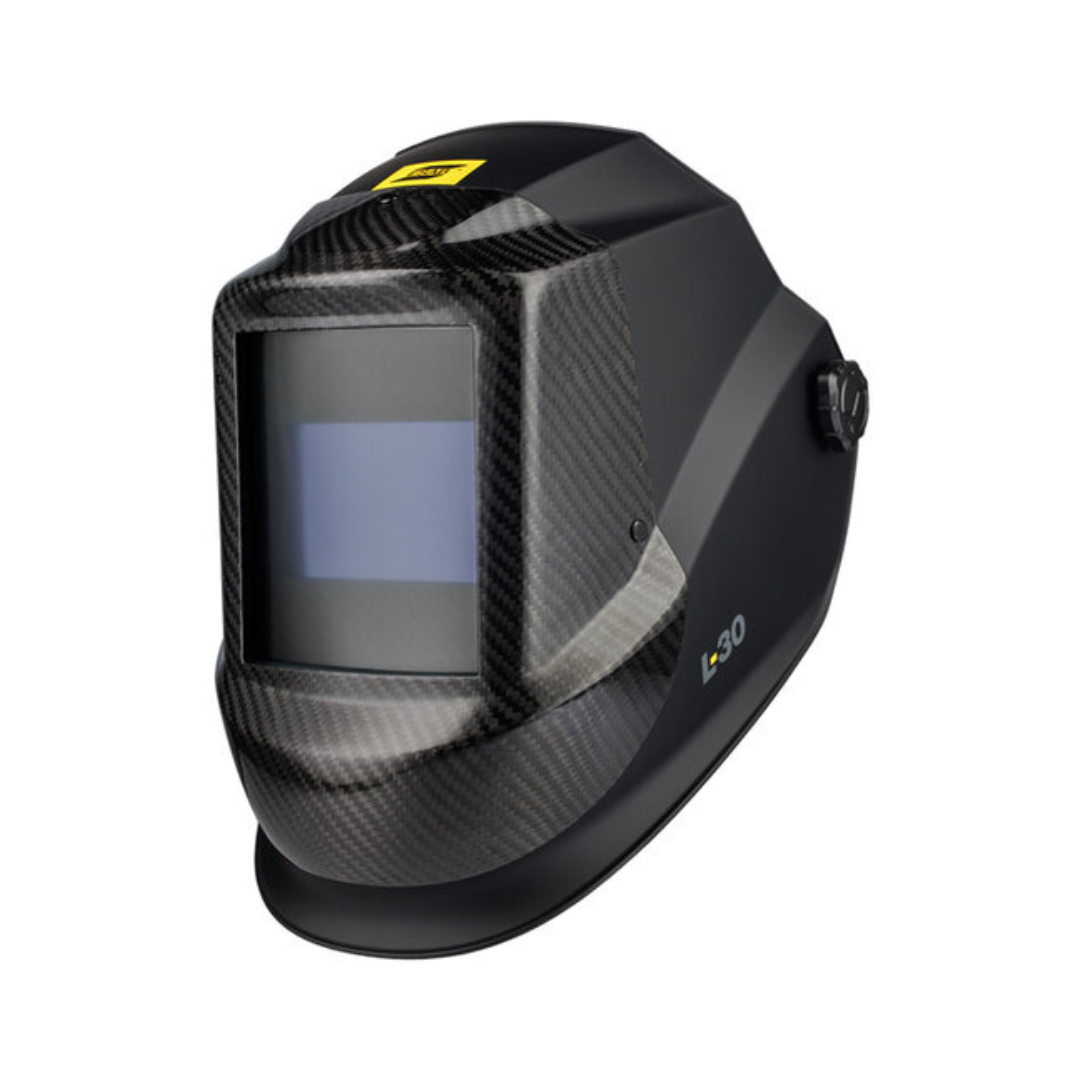

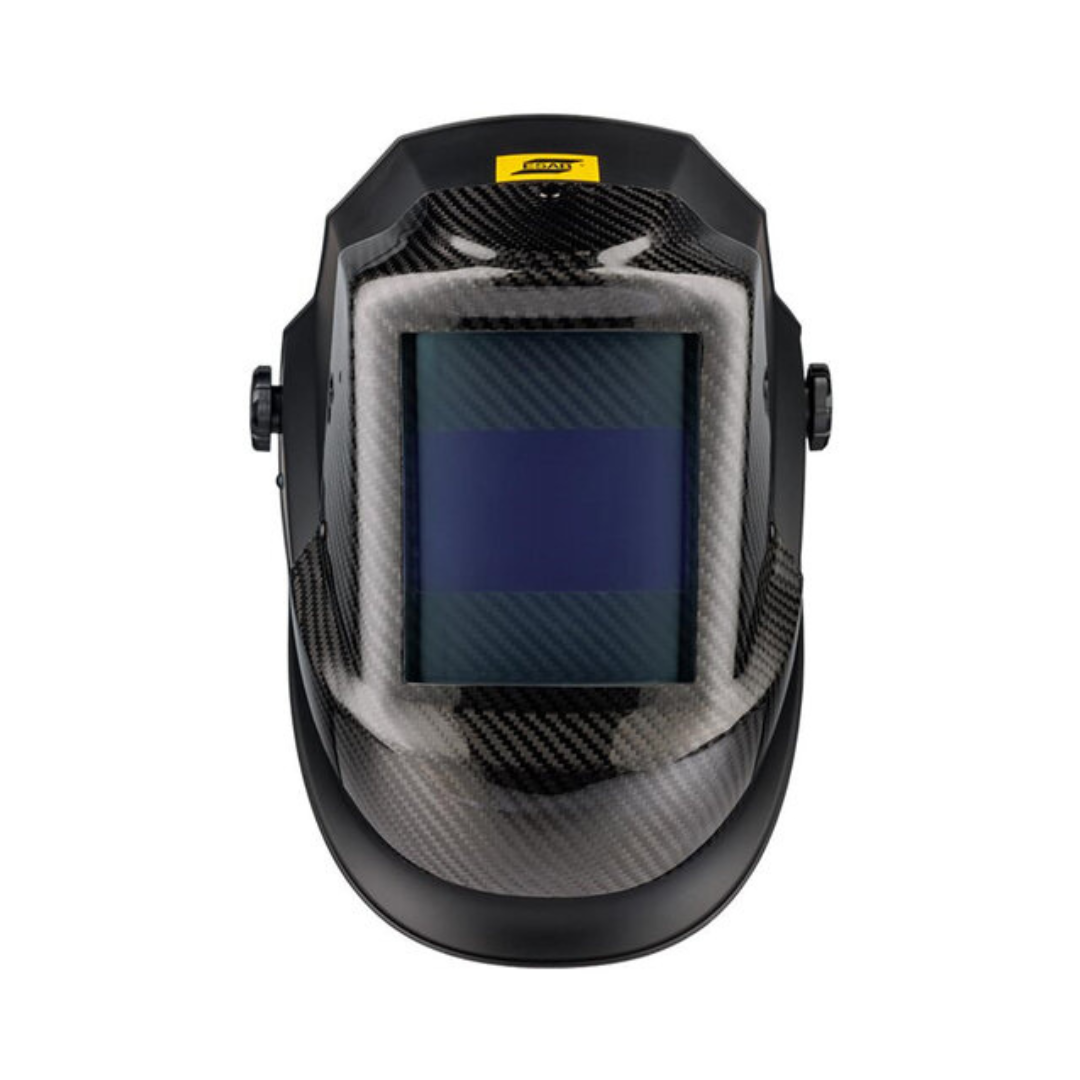

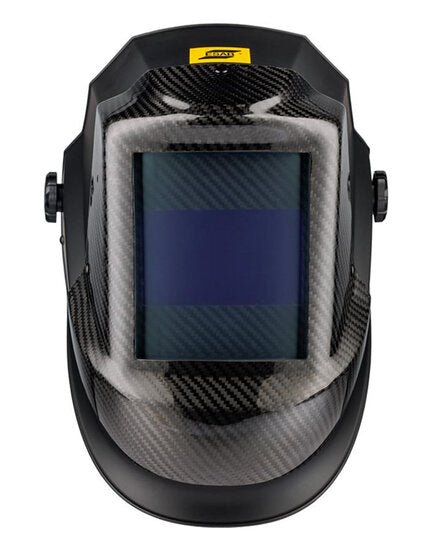

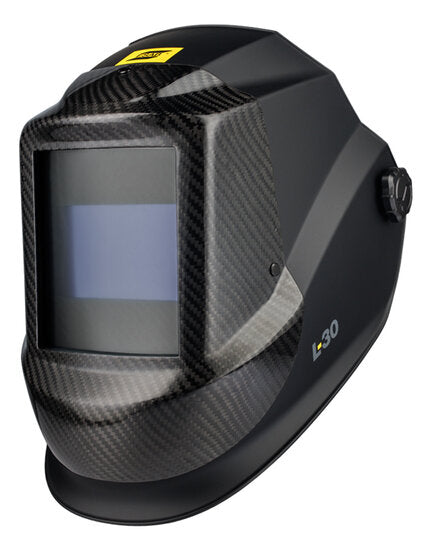

Esab 0700700100 L-30 Laser Welding Helmet 100 x 60 mm

Product Description

Esab 0700700100 is the L-30 laser welding helmet designed for handheld laser welding, featuring an EN 207 certified optical filter and shell for protection at 900–1100 nm. The helmet provides a large 100 x 60 mm viewing area and five adjustable shade settings (DIN 2.5–5) controlled via a digital interface. An intuitive digital interface enables fast shade adjustments for varying welding conditions. A lightweight carbon fiber front shell reduces fatigue; listed weight is 648 g.

• EN 207 certified optical filter and shell providing protection for 900–1100 nm wavelengths

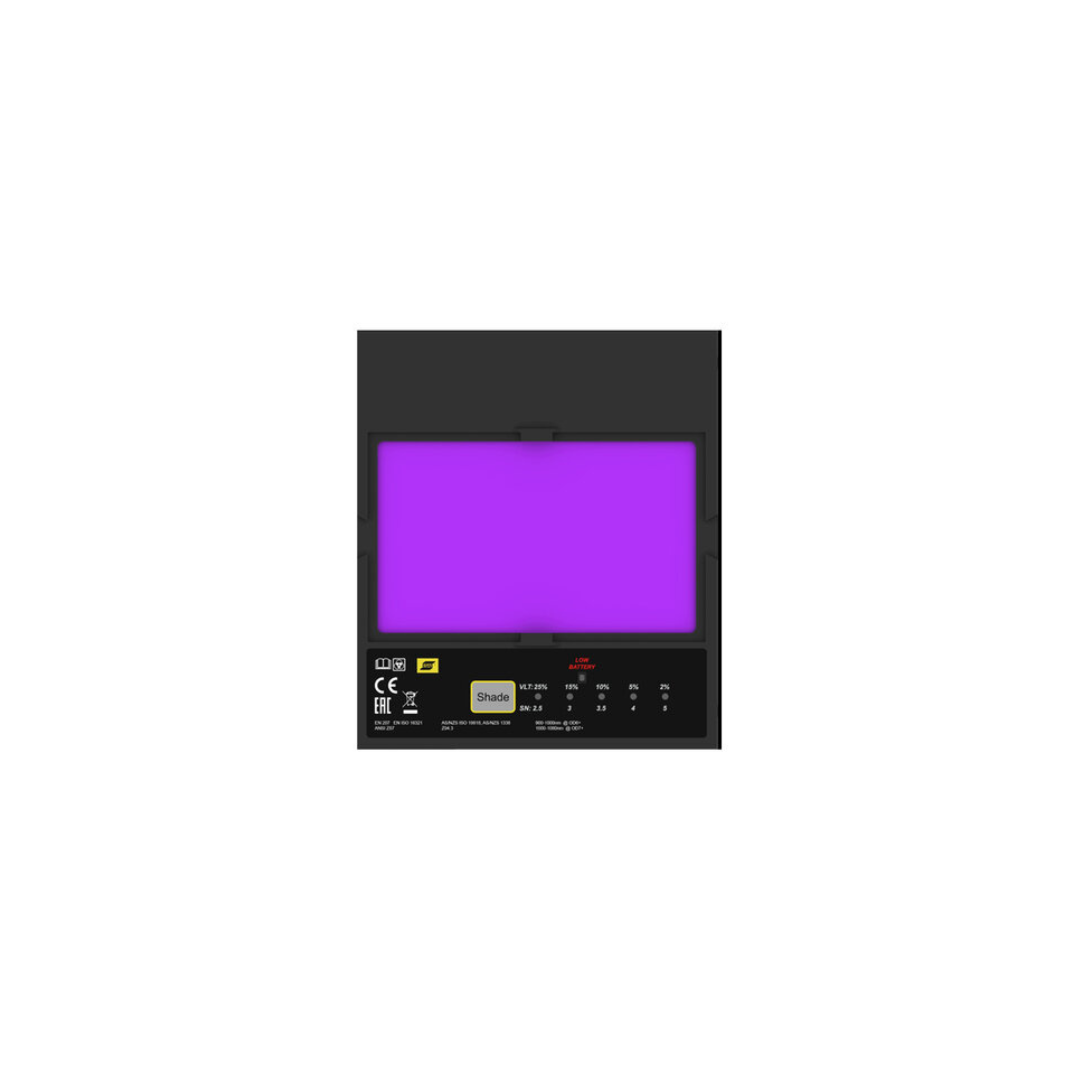

• Five adjustable shade settings (DIN 2.5–5) with digital user interface for quick adjustments
• Large 100 x 60 mm viewing area and lightweight carbon fiber front shell (weight 648 g)

Product Highlights

EN 207 certified protection; 100 x 60 mm viewing area; DIN 2.5–5 variable shade; carbon fiber front shell

Product Information

Standard Information

• Brand: ESAB
• Manufacturer Part Number: 0700700100
• Country of Origin: China

Technical Specifications

• Brand: Esab
• MPN: 0700700100
• Product Name: L-30 Laser Welding Helmet
• Series: Laser
• Viewing Area: 100 x 60 mm (3.94 x 2.36 in.)
• Shade Settings: Adjustable DIN 2.5–5 (five settings)
• Shade Type: Variable shade
• Certifications: EN 207 (optical filter and shell); EN ISO 16321 (as listed)
• Suitable Wavelength: 900–1100 nm
• Front Shell Material: Carbon fiber front shell
• Filter Bracket Material: Carbon fiber (filter bracket listed in sources)
• Weight: 648 g
• Lens Speed: 0.090 ms
• Digital Interface: Intuitive digital interface for shade adjustments
• Headgear: Multi-point adjustable headgear
• Package Contents: One L-30 helmet, two replacement outer lenses, storage bag
