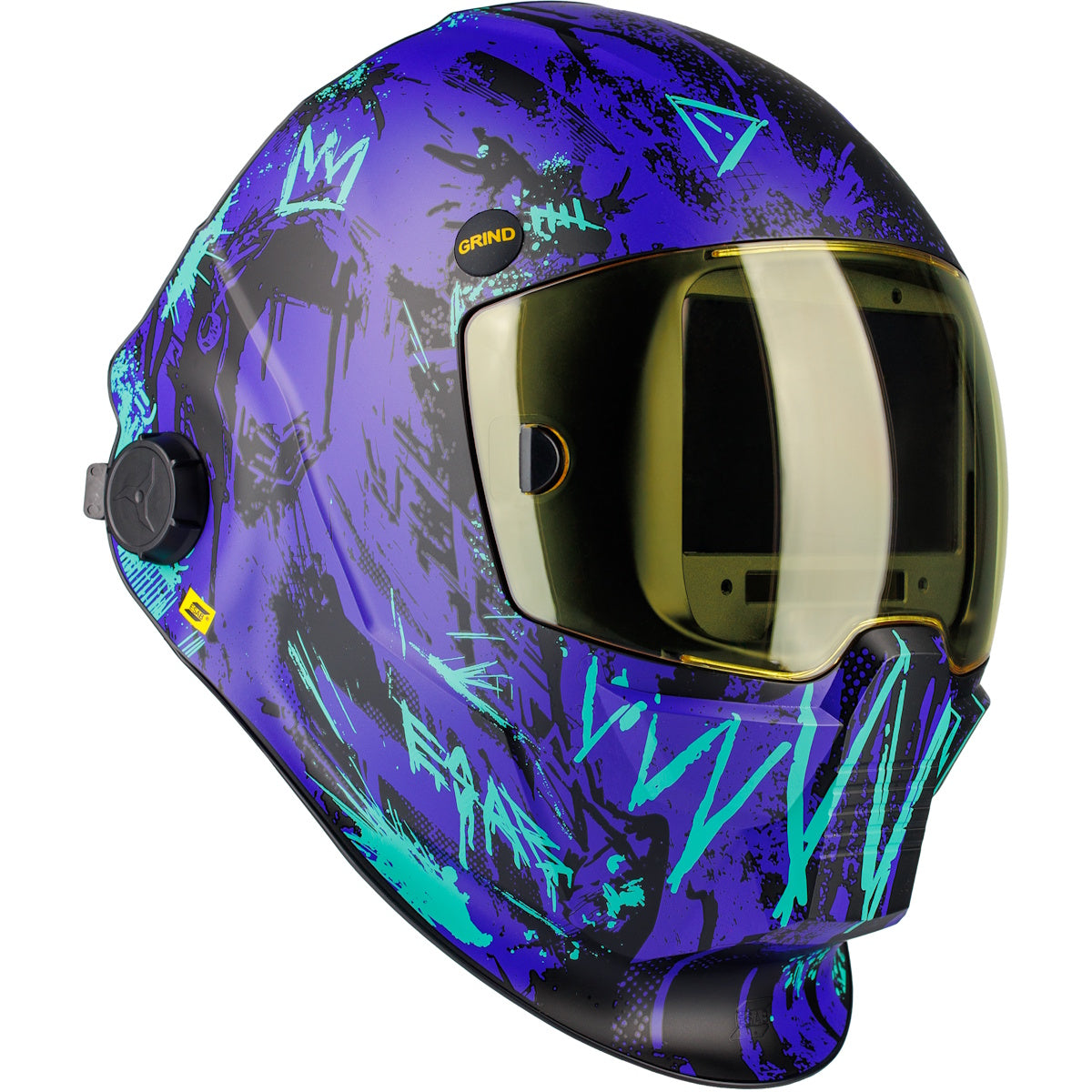

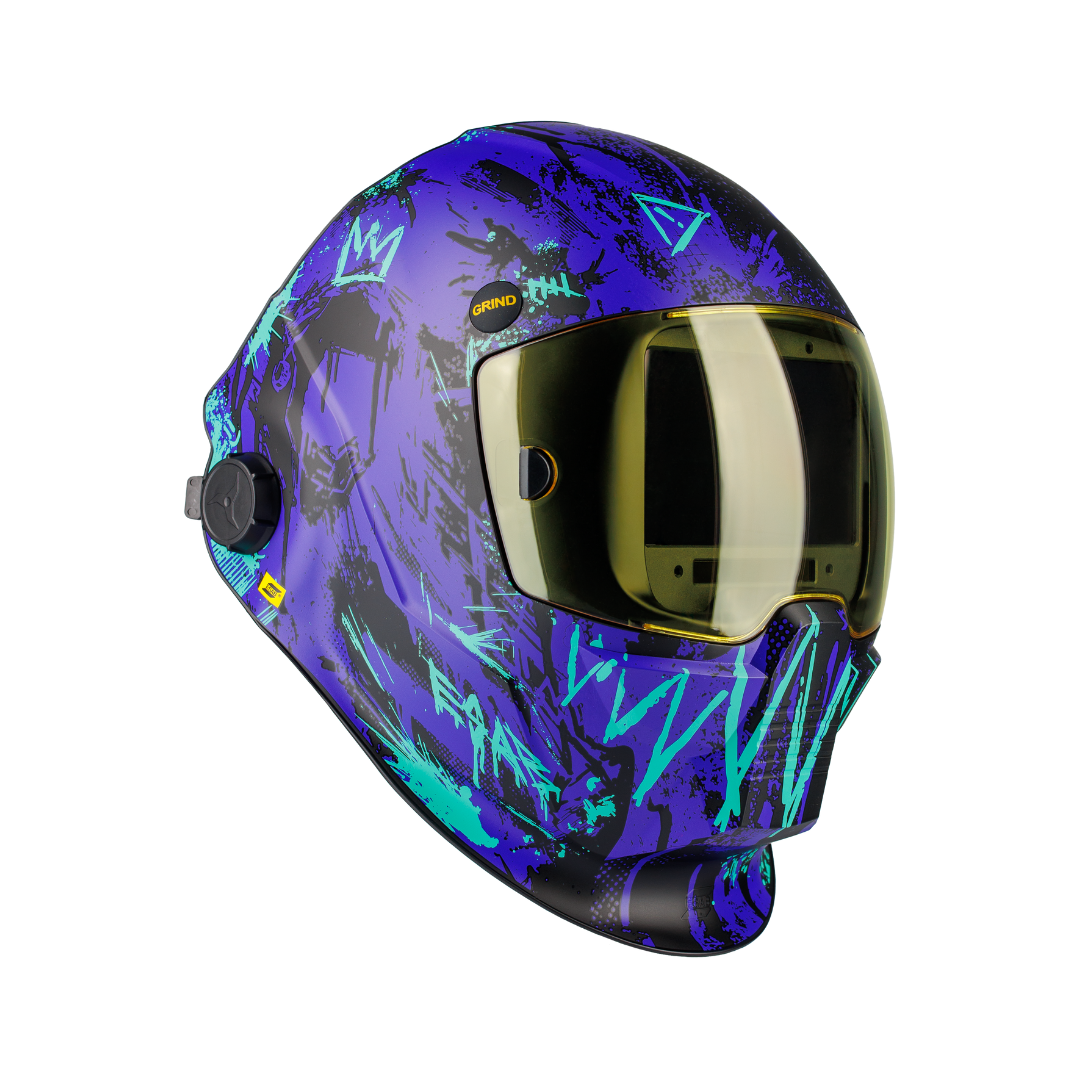

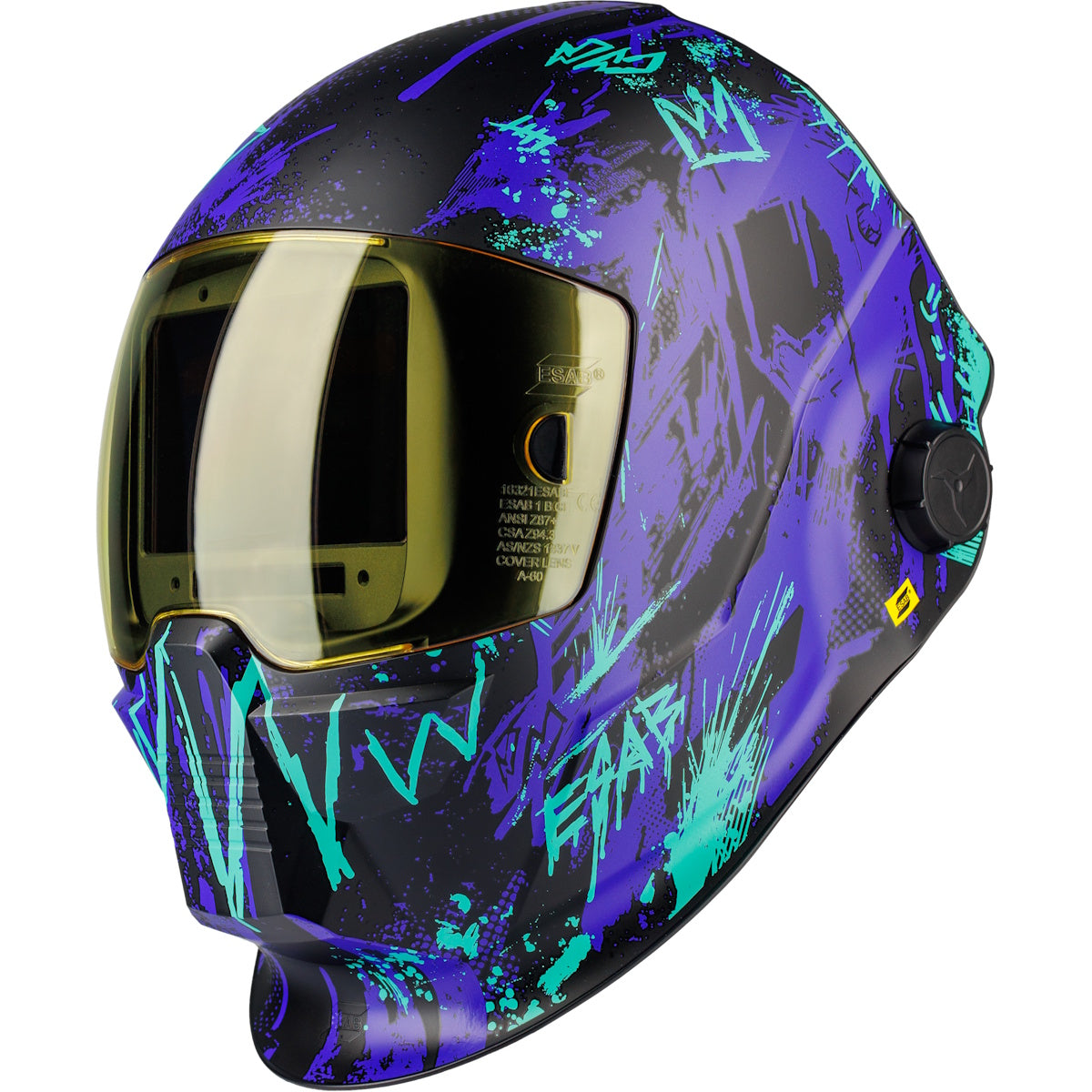

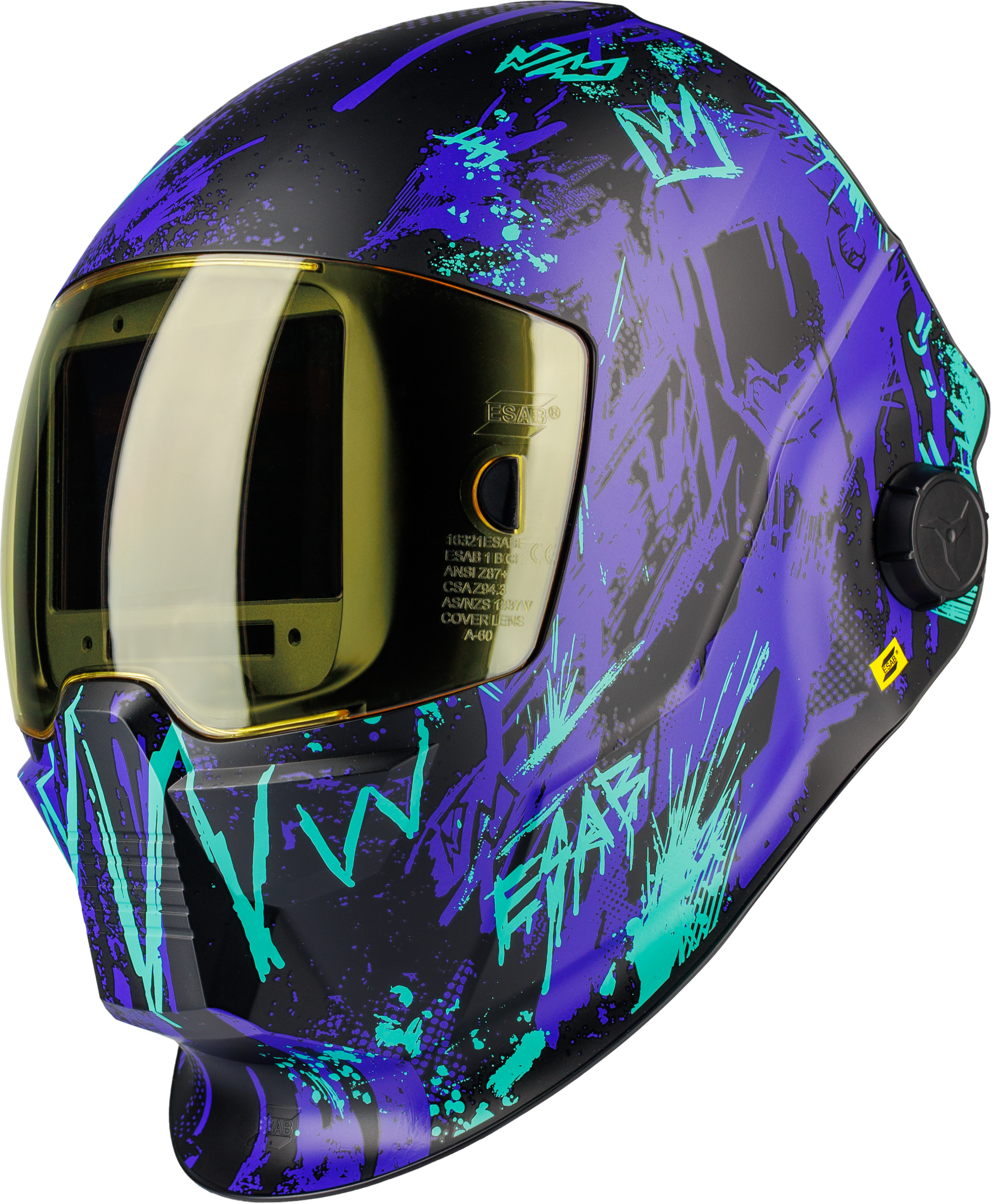

Esab 0700600895 Sentinel A60 Havoc Auto-darkening Welding Helmet Solar CR2450 (118 x 71 mm viewing area)

Product Description

ESAB 0700600895 is the Sentinel A60 Havoc auto-darkening welding helmet providing a large panoramic ADF viewing area (118 x 71 mm) with 1/1/1/1 EN optical clarity and ESAB OpTCS True Color lens technology. The ADF offers an adjustable shade range DIN 3/5–13 in 0.5 increments with shade-lock, four arc-detection sensors, up to nine memory settings, a replaceable CR2450 battery with solar backup, and infinitely adjustable HALO headgear.

• 118 x 71 mm panoramic ADF; optical clarity 1/1/1/1 EN and OpTCS True Color lens technology
• Shade DIN 3/5–13 adjustable in 0.5 increments with shade-lock, four arc sensors, switching time 0.04 ms
• Replaceable CR2450 battery with solar backup, up to nine on-board memory settings, infinitely adjustable HALO headgear

Product Highlights

Large panoramic viewing area, true-color auto-darkening filter, adjustable shade and programmable memory settings

Product Information

Standard Information

• Brand: ESAB
• Manufacturer Part Number: 0700600895

Technical Specifications

• Brand: ESAB
• MPN: 0700600895
• Product Name: Sentinel A60 Havoc Auto-darkening Welding Helmet
• ADF viewing area: 118 x 71 mm (4.65 x 2.80 in) (panoramic viewing area)
• Viewing area (square inches): 13.02 sq in
• Optical clarity: 1/1/1/1 EN
• Shade range: DIN 3/5–13, adjustable in 0.5 increments (shade lock available)
• Lens technology: ESAB OpTCS True Color Lens Technology
• On-board memory: Up to 9 settings
• Arc sensors: 4
• Switching time (Light to Dark): 0.04 millisecond
• Reaction time (Dark to Light): 0.08 millisecond
• Battery: Replaceable CR2450 with solar backup
• Indicators: Low battery, grind mode and shade lock LEDs
• Headgear: Infinitely adjustable HALO headgear (five-point adjustability referenced in some kits)
• Weight: 644 g (1.4 lbs)
• Certifications: ANSI Z87.1; AS/NZS 1338.1; CE: EN175, EN379, EN166; CSA Z94.3; ISO 16321 +TIG
• Processes: GMAW (MIG/MAG), Grinding, GTAW (TIG), Oxy-Fuel Cutting, PAW, SMAW/MMA (Stick)
• Low amperage TIG capability: Down to 2 amps
• Shell material / features: High-impact resistance nylon; spherical shell shape; anti-scratch coating
• Included accessories: Helmet storage bag; 1 outside amber cover lens (installed); 2 outside clear cover lenses; 2 inside clear lenses; 2 CR2450 batteries
