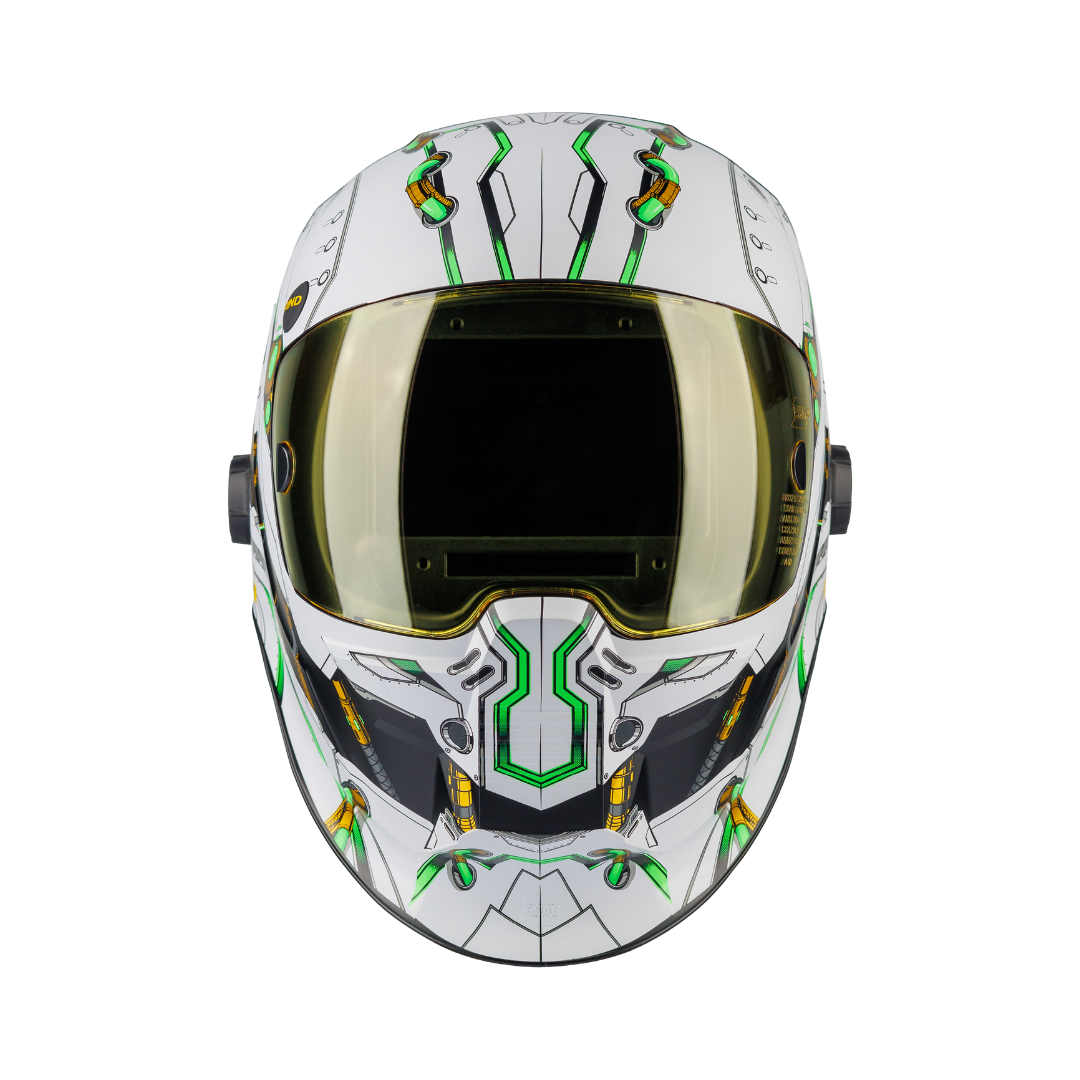

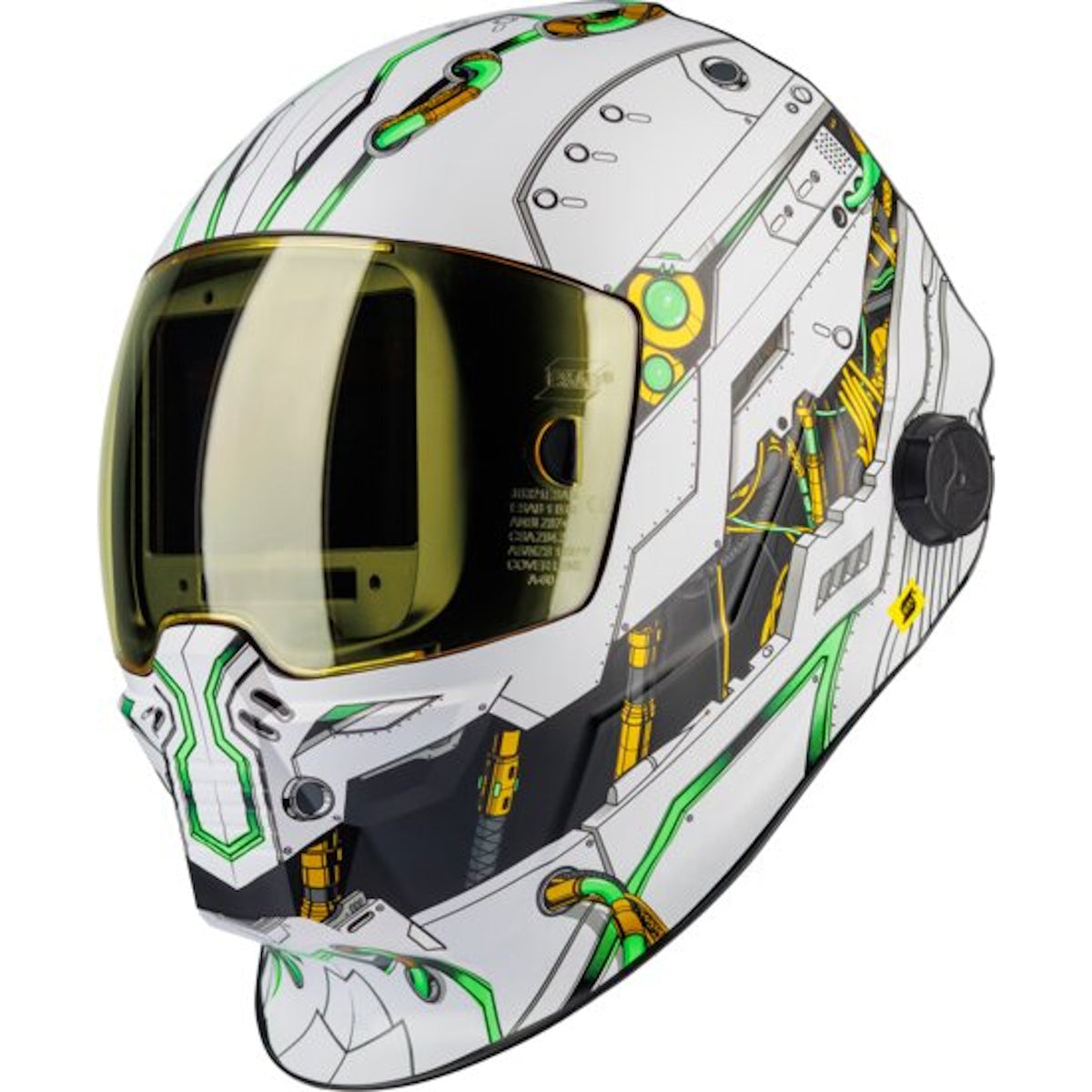

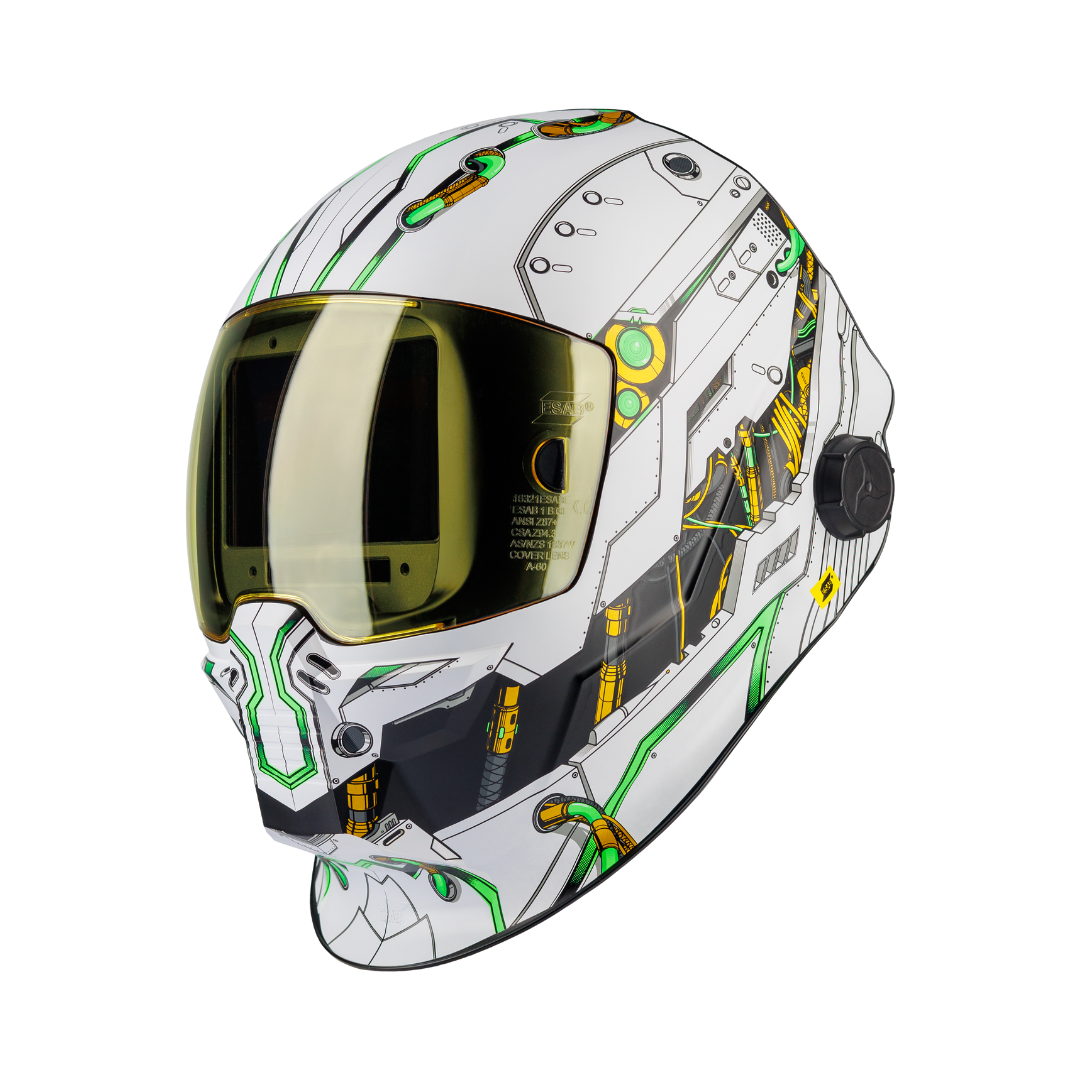

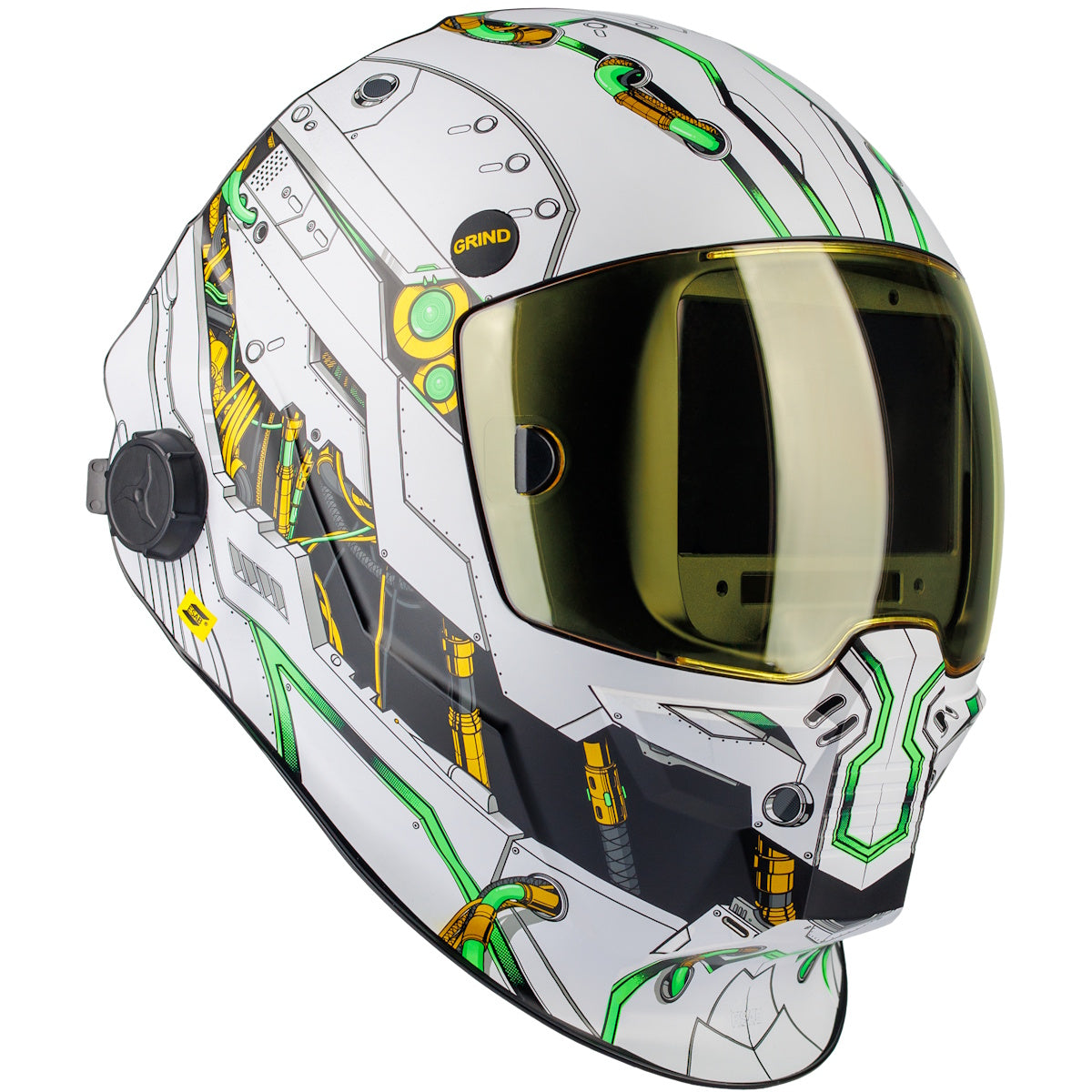

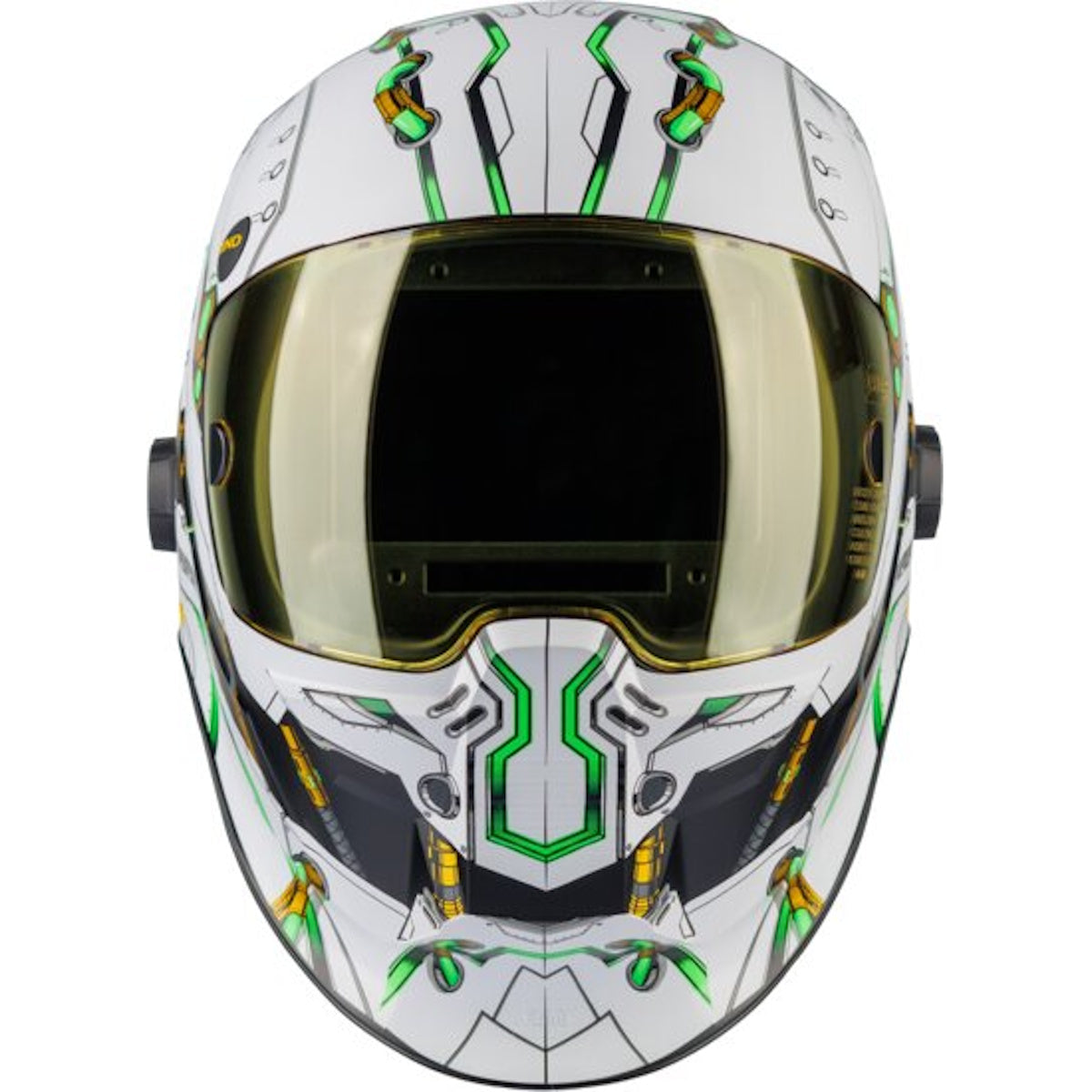

ESAB 0700600893 is the Sentinel A60 Ghost auto-darkening welding helmet that provides a large panoramic viewing area with 1/1/1/1 optical clarity and OpTCS True Color lens technology. The fully digital ADF offers DIN shade 5-13 in 0.5 increments, four arc sensors, fast 0.08 millisecond switching, and a five-point Halo headgear. The helmet supports low-amperage TIG welding down to 2 amps and includes replaceable CR2450 batteries.
ADF viewing area: 4.65 x 2.80 in (118 x 71 mm) with 1/1/1/1 optical class and OpTCS True Color lens
Shade DIN 5-13 adjustable in 0.5 increments, external grind (shade 3), four arc sensors, 0.08 ms switching time
Five-point adjustable Halo headgear, replaceable CR2450 batteries (included), multiple cover lenses and storage bag included
Product Highlights
Large panoramic viewing area, OpTCS True Color ADF, DIN 5-13 shade range, four arc sensors, 0.08 ms switching, five-point Halo headgear
Product Information
Standard Information
Brand: ESAB
Manufacturer Part Number: 0700600893
Technical Specifications
Brand
ESAB
MPN
0700600893
Model Name
Sentinel A60 Ghost
Series / Edition
Sentinel A60 Ghost (Special Edition)
ADF Viewing Area
4.65 x 2.80 in (118 x 71 mm)
Viewing Area (square inches)
13.02
Optical Class
1/1/1/1
ADF Technology / Lens Technology
ESAB OpTCS True Color
Shade Range
DIN 5-13
Shade Adjustment Increment
0.5
Grind Mode
External grind button (shade 3 grind)
Memory Settings
Up to 9 on-board memory settings
Arc Sensors
4
Switching Time (Light to Dark / Reaction Time)
0.08 millisecond
Low Amperage TIG Range
Down to 2 amps
Sensitivity Control
Adjustable
Delay Control
Digitally adjustable (0.1 to 0.9 second)
Indicators
Low battery, grind mode, and shade lock LEDs
Power Source
Replaceable CR2450 battery (included); solar cell referenced in some sources
Headgear
Five-point adjustable Halo headgear
Shell Material
High-impact resistance nylon with anti-scratch coating
