Esab 0700504100 Savage A41 Black Welding Helmet 8-13

Product Description

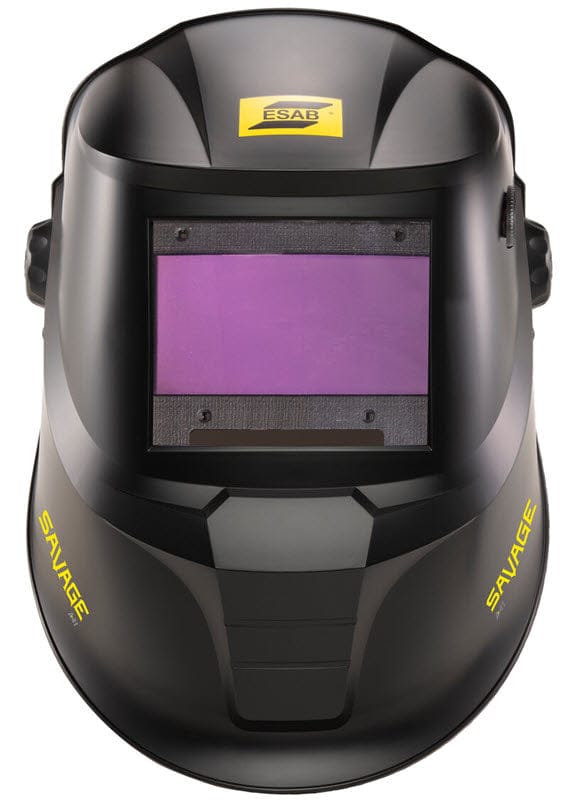

The ESAB 0700504100 Savage A41 Black Shade 8-13 auto-darkening welding hood comes with digital controls and a streamlined external weld/grind button. It features true color view with a 1/1/1/2 optical rating. The 7.70 square inch viewing area allows a natural view of the work area for welding, cutting, or grinding. Operates in shade 8-13 welding mode and shade 4 grind mode.

• Digital controls
• Streamlined external weld/grind button
• True color view with a 1/1/1/2 optical rating

Product Highlights

The Savage A41 welding helmet provides a broad spectrum true color view through the lens, whether in the welding state or Shade 4 light state.

Product Information

Standard Information

• Brand: ESAB
• Manufacturer Part Number: 0700504100
• Country of Origin: China

Technical Specifications

• ADF viewing area: 100 x 50 mm (3.93 x 1.96 in.)
• Shade range: DIN 4/8–13
• Grind mode: via external control
• CE Optical class: 1/1/1/2
• Arc sensors: 4
• Fast switching time: 0.07 millisecond
• User interface: Fully digital with adjustable delay and sensitivity settings
• Battery: Replaceable 1 x CR2450
• Indicator: Low battery LED
• Lens Shade: 8 - 13
• Lens Type: Variable Shades
• Trade Name: ESAB® Savage A41
• Cut Mode: Welding
• Welding Shade: 4, 8-13
• Number of Sensors: 4
• Delay Control: Yes
• Helmet Weight (Oz.): 17.6
• Lens Speed (Seconds): 1/25,000 s from light to dark
• Series: Savage
• Shade Type: Variable Shade
• Viewing Area: 3.93 x 1.96 in.
• Sensitivity Control: Yes
• Magnifier Capable: Yes
• Helmet Type: Auto-Darkening
• Helmet Material: Polypropylene
• Switching Speed: 9/10 sec
• Suspension Adjustment Type: Pinlock
• Helmet ADF Controls: Digital
• Welding Light State: 4
• Power Source: Battery
• Includes Batteries: Yes
• Battery Type: Solar Cell, Replaceable
• Battery Chemistry: Lithium Ion
• Battery Life: 2,000 hr
• Compatible Suspension Brand Name: Savage
• Compatible Suspension Manufacturer Part Number: 0700000483
• EN379 Classification: 1/1/1/2
• Hat Size Maximum: 8
• Hat Size Minimum: 6-7/8
• Head Diameter Maximum: 7-4/5 in
• Head Diameter Minimum: 6-17/20 in
• Helmet Width: 9 in
• Lens Color: Clear
• Lens Material: Glass
• Magnification: Yes
• Magnifying Power: 1.5x; 1x; 2.5x; 2x
• Number of Suspension Points: 2
• Standards: ANSI: 787.1+; CE; CSA: Z94.3; EN ISO 16321 W4/8-13 V2
• TIG AMP Rating: 20 A
• Welding Shade Designation: W8-13
• Manufacturer Part Number: 0700504100
• Sub-brand: Savage A41
• Model: Savage A41
• Features: Variable Shade Lenses
• Country of Origin: Mexico
• UPC: 7330725080074
• MFG: 0700504100
