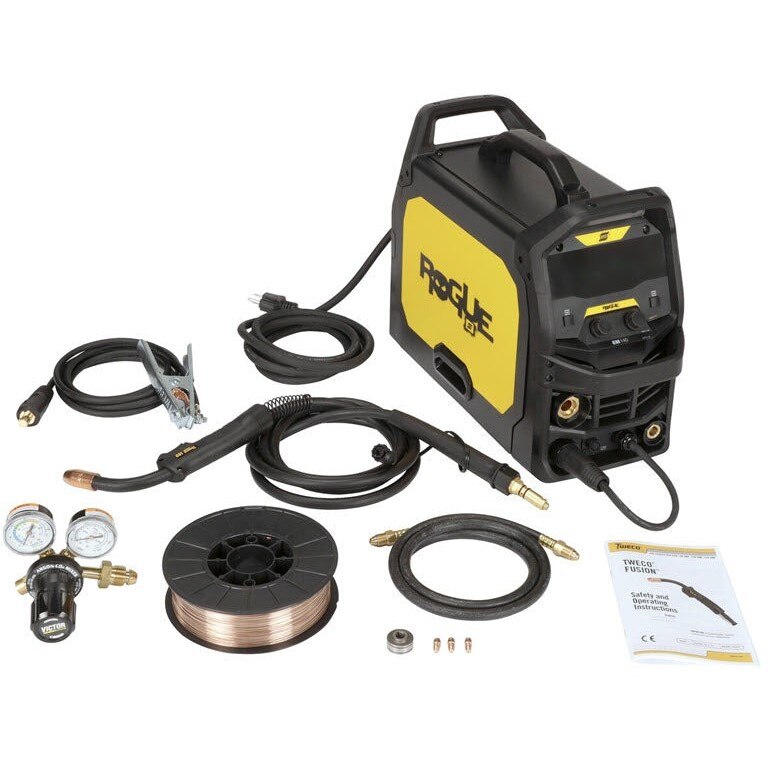

Esab 0700301082 Rogue EM140 Mig Welder 120 Vac

Product Description

The ESAB 0700301082 Rogue EM140 is an inverter-based MIG/MAG welding system built for light fabrication, repair, and maintenance work. Operating on a single-phase 120-volt input, it draws on industrial-grade arc technology to deliver consistent weld performance across a range of material thicknesses up to 0.25 inches. The unit weighs 28.8 pounds, making it a genuinely portable option for technicians and fabricators who move between shop and field environments. A 14-segment LED display provides real-time feedback on voltage and wire feed speed, and the Arc Dynamics control lets the operator fine-tune arc characteristics to match the base material being welded.

The Rogue EM140 suits a broad range of applications including automotive body work, civil construction, mechanical contracting, agricultural equipment repair, and general light fabrication. Its 120-volt single-phase input and compatibility with 6 kVA (4.8 kW) generators make it practical for job sites without dedicated welding circuits. The system is appropriate for both experienced trade welders and skilled hobbyists who require reliable arc performance from a compact, portable platform.

Key Features

• 14-segment LED display shows voltage and wire feed speed simultaneously for at-a-glance monitoring
• Arc Dynamics control allows fine-tuning of arc characteristics based on material type
• Welds material thicknesses up to 0.25 inches
• Spool gun ready — unit automatically reconfigures setup when a spool gun is connected
• Adjustable pre- and post-flow, burn back control, creep start, and 2T/4T trigger latch for advanced process control
• Energy Save Mode activates after 2 minutes of inactivity to reduce power draw
• Multiple lift points and integrated cable management built into the industrial chassis

Compatibility

Designed as an OEM MIG/MAG welding system compatible with standard MIG consumables and spool guns that support the Rogue EM140 platform. Generator compatibility rated at 6 kVA (4.8 kW) minimum.

Installation Notes

Installation and operation should be performed by a qualified welder or electrician familiar with applicable codes including NFPA 70 (NEC) for electrical connections. Verify the supply circuit is rated for the unit's input requirements and is properly grounded before connecting. Always power down and disconnect from the supply before performing any maintenance or consumable changes. Follow the manufacturer's operator manual for wire loading, drive roll selection, and shielding gas connection procedures.

Technical Specifications

• Input Voltage: 120 volts, single-phase
• Generator Compatibility: 6 kVA (4.8 kW)
• Maximum Weld Thickness: 0.25 inches
• Unit Weight: 28.8 pounds
• Package Weight: 51.5 pounds
• Display: 14-segment LED
• UPC: 7330725079993

Standard Information

• Brand: ESAB
• Manufacturer Part Number: 0700301082
