Esab 0700102043 Swarm A20 (93 x 43 mm)

Product Description

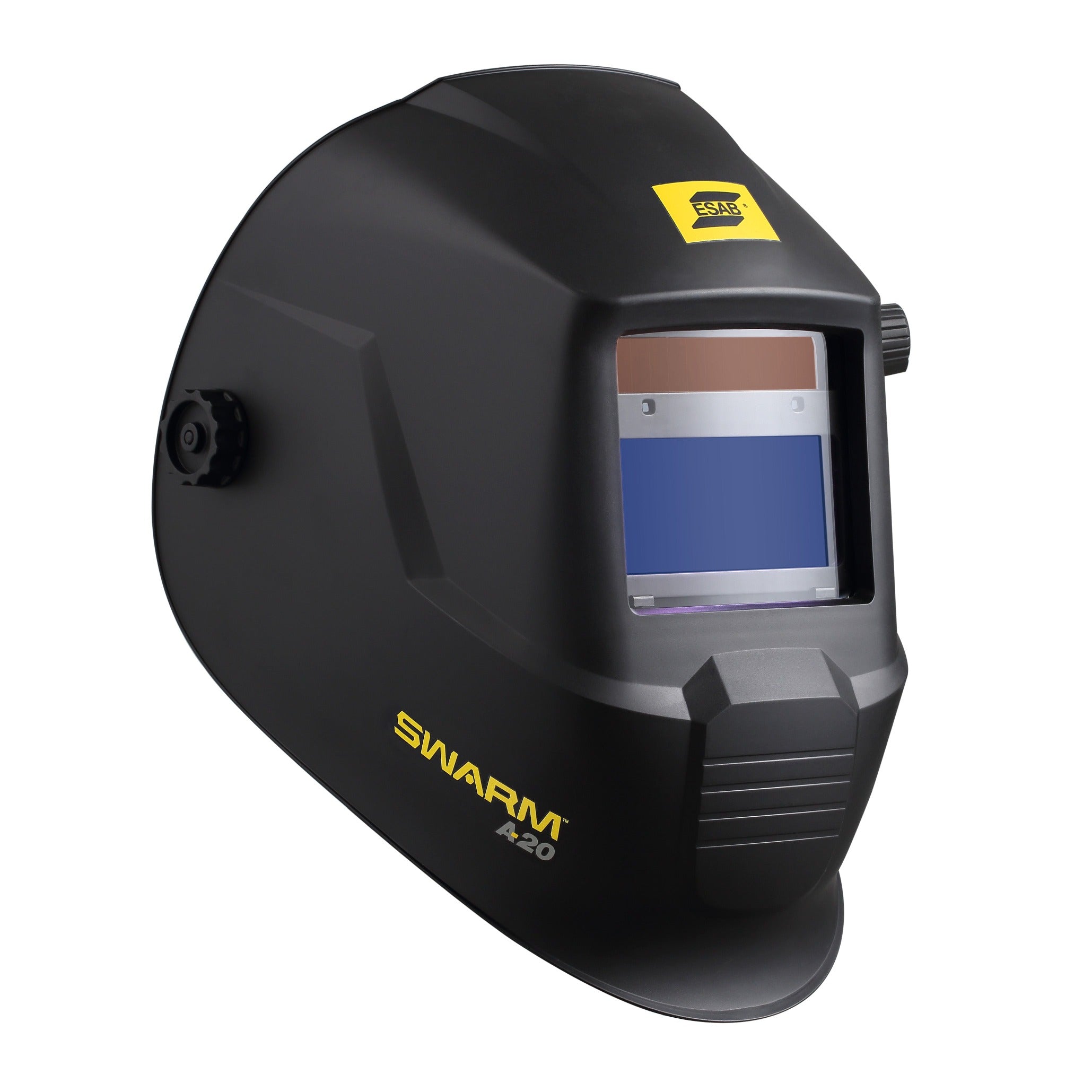

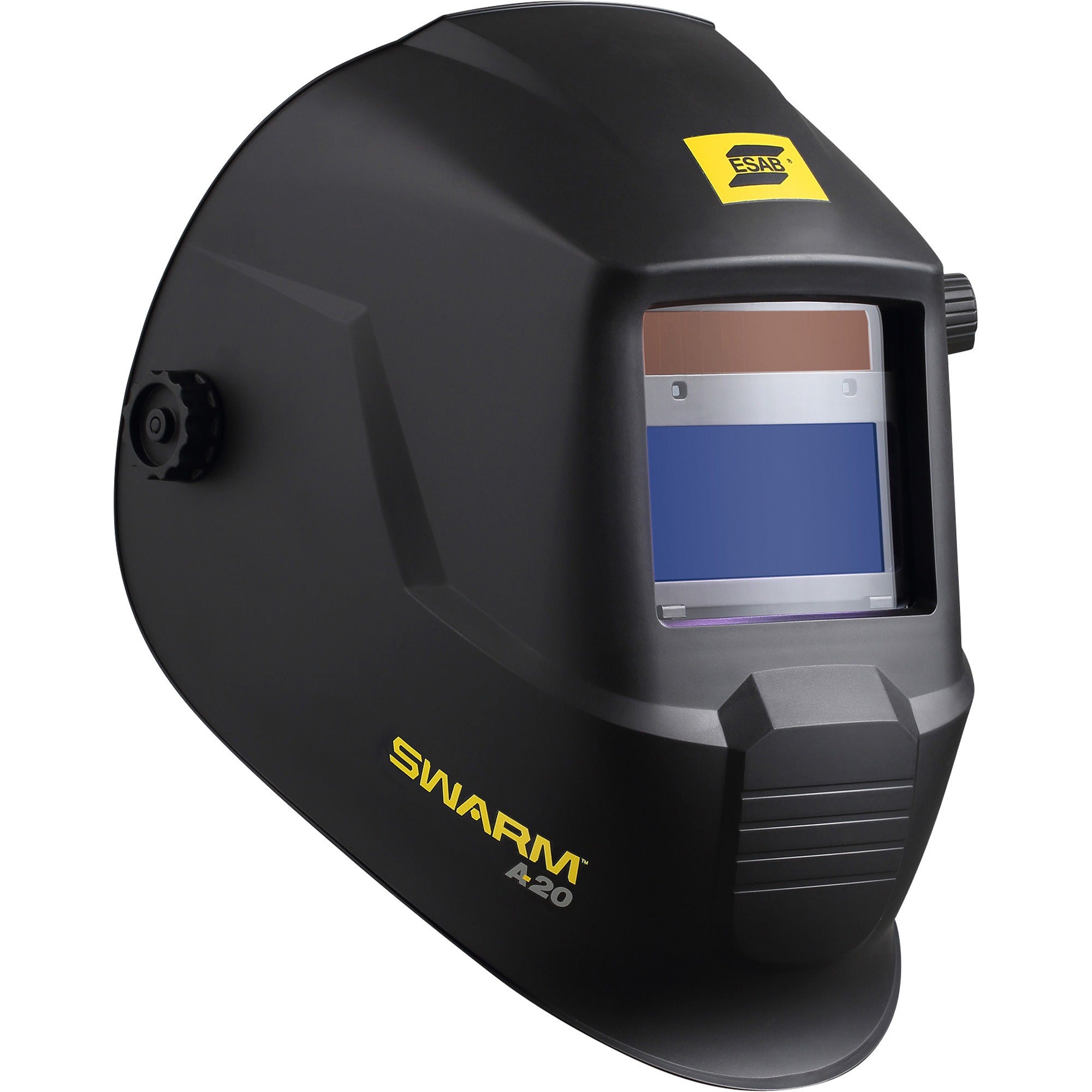

ESAB 0700102043 Swarm A20 is an auto-darkening welding helmet that combines an advanced ADF with an externally selectable DIN 9-13 shade range and a 93 x 43 mm viewing area. The helmet provides CE optical class 1/1/1/2 clarity, an external grind setting, internal delay and sensitivity dials, two arc sensors, a replaceable CR2032 battery and a fast 0.1 millisecond switching time. Weight is 520 g (1.1 lbs).

• Advanced auto-darkening filter (ADF) with externally selectable DIN 9-13 shade range and 93 x 43 mm viewing area
• CE optical class 1/1/1/2, two arc sensors, and 0.1 ms switching time for arc detection
• External grind setting, fully adjustable delay and sensitivity (internal dials), replaceable CR2032 battery and low battery LED

Product Highlights

Auto-darkening helmet with DIN 9-13 ADF, 93 x 43 mm viewing area, two arc sensors, adjustable controls and replaceable CR2032 battery.

Product Information

Standard Information

• Brand: ESAB
• Manufacturer Part Number: 0700102043
• Country of Origin: China

Technical Specifications

• Brand: ESAB
• Manufacturer Part Number: 0700102043
• Product Name: Swarm A20
• ADF viewing area: 93 x 43 mm (3.66 x 1.69 in) - viewing window size
• Shade range: DIN 9-13 (externally selectable)
• CE optical class: 1/1/1/2
• Arc sensors: 2
• Grind setting: External knob (grind mode)
• Delay and sensitivity: Fully adjustable (internal dials)
• Battery: Replaceable 1 x CR2032
• Low battery indicator: LED
• ADF test button: Yes
• Switching time: 0.1 millisecond (0.0001 s)
• Weight: 520 g (1.1 lbs)
• Certifications: CE: EN175, EN379, EN166; CSA: Z94.3; Brazil CA; ANSI: Z87.1
• Supported processes: SMAW/MMA (Stick); MIG/MAG (GMAW); Manual plasma cutting; Air carbon arc cutting (CAC-A); Plasma cutting; Oxy-fuel cutting; Grinding
• Included items: Full helmet assembly; 2 replacement inner lenses; 4 replacement outer lenses; carry bag; durag; safety manual
