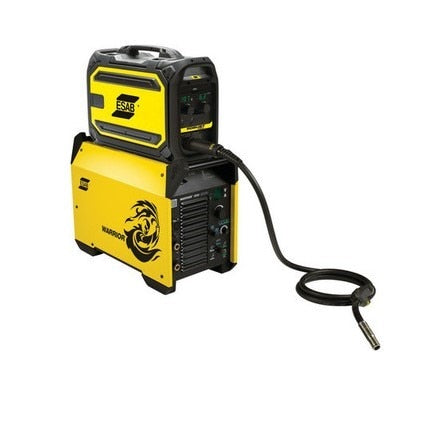

Esab 0558-102697 Warrior 500i Multi-process Welder 460V

Product Description

The ESAB 0558-102697 is an inverter-based, multi-process CC/CV welding machine rated at 500 amps, designed for heavy-duty industrial and fabrication work. The Warrior 500i supports MIG, stick, and TIG-compatible processes in a single unit, delivering consistent arc performance with the energy efficiency characteristic of inverter topology. At 60% duty cycle, the machine outputs 500 A, making it suitable for long continuous runs on demanding applications. The compact inverter platform reduces weight and footprint compared to transformer-based equivalents, without sacrificing output stability. This machine is intended for installation and operation by qualified welding professionals in industrial, construction, and maintenance environments.

The Warrior 500i is built for heavy-duty productivity in both indoor and outdoor settings. Its IP23 environmental protection rating makes it appropriate for use in rough conditions where exposure to dust and limited moisture contact is a factor. The glove-friendly front-panel controls and clear user interface reduce setup time on the job site. The 460V, three-phase input configuration suits commercial and industrial facilities with standard three-phase power infrastructure. This basic package provides the core welding unit without accessory bundles, allowing experienced welders and contractors to supply their own torches, cables, and consumables.

Key Features

• Inverter technology delivers improved arc stability and energy efficiency over transformer-based machines
• 500 A output at 60% duty cycle supports extended, high-current welding runs
• CC/CV multi-process capability covers stick, MIG, and related welding processes
• IP23 rating qualifies the unit for both indoor and outdoor use in rough environments
• Glove-friendly controls and intuitive interface reduce operator setup time
• 460V three-phase input for industrial and commercial power infrastructure

Compatibility

Designed as an OEM multi-process inverter welding machine for use with standard industrial 460V three-phase power supplies. Compatible accessories and consumables should be selected to match CC or CV process requirements based on application.

Installation Notes

Installation and electrical connection should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and local jurisdiction requirements. Confirm that the supply circuit is rated for the input voltage and amperage draw of the machine before energizing. Power down and lockout/tagout the supply circuit before making or changing any wiring connections. The IP23 rating permits outdoor use but does not qualify the unit for direct rain exposure or submersion.

Technical Specifications

• Output Current: 500 amps
• Duty Cycle: 60% at 500 A
• Process Type: CC/CV Multi-Process
• Input Voltage: 460V, 3-phase
• Environmental Protection Rating: IP23
• Package Configuration: Basic Package
• UPC: 662067218585
• Unit of Measure: Each
• Minimum Order Quantity: 1

Standard Information

• Brand: ESAB
• Manufacturer Part Number: 0558-102697
