Esab 0558-102564 Tig Stick Welder 300A Multi-voltage

Product Description

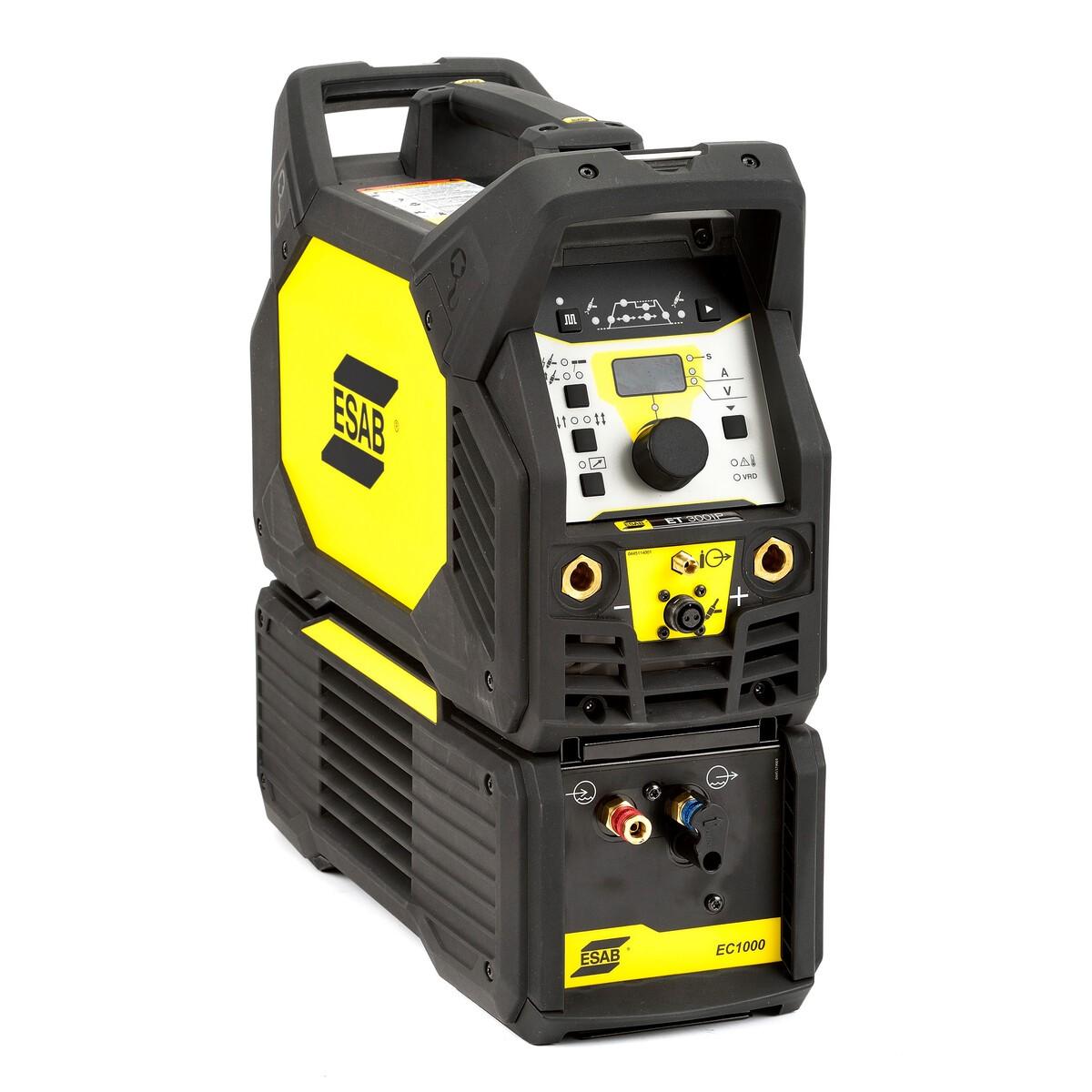

The ESAB 0558-102564 Renegade ET 300iP is a multi-process TIG and Stick welder built for trade professionals who need serious output in a portable package. Weighing 33 pounds, it delivers up to 300 amps at 40 percent duty cycle. The unit automatically accepts single- and three-phase input power from 208 to 460 volts, making it adaptable to shop and field power sources without manual switching. Output range runs from 5 to 300 amps. This package includes the power supply, a 10-foot input cable, shoulder strap, two male 50mm OKC connectors, and a THX 201 TIG torch on a 13-foot lead.

The Renegade ET 300iP is suited for industrial maintenance, construction, pipeline, and fabrication work in both shop and field environments. Its three-handle design allows movement through confined spaces such as manholes and tight service corridors. The unit supports pulse HF TIG welding with a frequency range of 0.1 to 1000 Hz, giving welders precise arc control for thin materials and critical joints. Both air-cooled and water-cooled torch packages are available depending on the application demands.

Key Features

• 300 amps output at 40 percent duty cycle from a 33-pound unit
• Automatic multi-voltage input: single- and three-phase, 208 to 460 volts
• Pulse HF TIG with 0.1 to 1000 Hz frequency range for precise arc control and improved travel speeds
• Three-handle design for transport and access through confined entry points
• Digital readout display with large, tactile buttons for parameter setting and remote readability
• Compatible with air-cooled and water-cooled torch setups

Compatibility

Designed for use with the ESAB Renegade ET 300iP power supply platform. Packaged with the THX 201 TIG torch on a 13-foot lead and includes two male 50mm OKC connectors for electrode and work cable connections.

Installation Notes

Installation and operation should be performed by a qualified welding professional familiar with TIG and Stick processes. Before connecting or changing input power leads, de-energize the supply circuit and verify it is locked out per applicable electrical codes. Confirm input voltage and phase configuration at the power source before connecting to the machine to take advantage of its automatic voltage sensing. Inspect torch connections and input cable for damage prior to each use.

Technical Specifications

• Output Range: 5 to 300 amps
• Duty Cycle: 40 percent at 300 amps
• Input Voltage: 208 to 460 volts
• Input Phase: Single-phase and three-phase
• Pulse TIG Frequency Range: 0.1 to 1000 Hz
• Weight: 33 pounds
• Input Cable Length: 10 feet
• Torch Lead Length: 13 feet
• Connector Type: 50mm OKC male (quantity: 2)

Standard Information

• Brand: ESAB
• Manufacturer Part Number: 0558-102564
