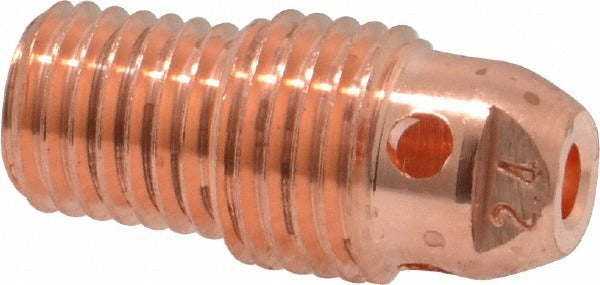

Esab 0365310039 Tig Torch Collet Body 3/32 Inch

Product Description

The ESAB 0365310039 is a 3/32 inch collet body designed for TIG welding torches. The collet body secures the tungsten electrode in place within the torch head, maintaining proper alignment and electrical contact during the welding arc. It is a precision consumable component that wears with use and requires periodic replacement to maintain weld quality. Licensed welding technicians and fabricators install this part as a standard consumable swap during torch maintenance. Industry standard designation 13N28 applies to this collet body.

This collet body is suited for use in light-duty to medium-duty TIG welding applications across fabrication shops, maintenance and repair operations, and field welding environments. It is designed for use with HW-20, HW-9, and HW-25 series TIG torch collets. These torch series are commonly found in both shop and portable welding setups where 3/32 inch tungsten electrodes are standard.

Key Features

• 3/32 inch bore size matches standard tungsten electrode diameter for consistent electrode retention
• Compatible with HW-20, HW-9, and HW-25 collet series
• Meets industry standard designation 13N28 for cross-reference and replacement sourcing
• Lightweight consumable at 0.01 pounds for minimal torch weight addition
• Sold individually with a minimum order quantity of 5 units per order

Compatibility

Designed for use with HW-20, HW-9, and HW-25 TIG torch collets. Corresponds to industry standard part number 13N28.

Installation Notes

Installation is performed by qualified welding technicians or experienced fabricators. Before replacing the collet body, shut off the welding power source and allow the torch to cool completely. The collet body threads or seats into the torch head and must be fully seated before inserting the tungsten and tightening the back cap. Do not overtighten the collet assembly, as this can damage the collet body threads or deform the collet.
