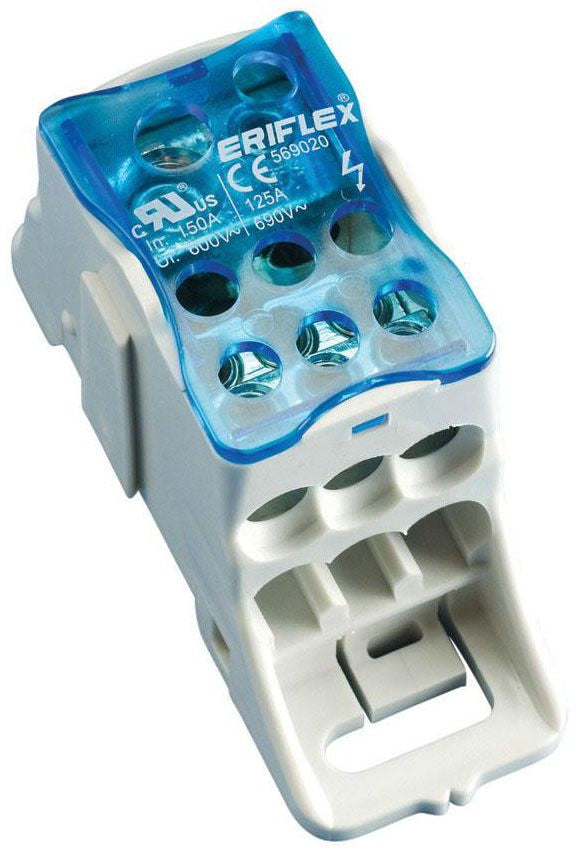

Eriflex UDJ-125A Distribution Block 125A

Product Description

The Eriflex UDJ-125A is a distribution block designed for a single pole with a capacity of one hundred twenty-five amps. This product facilitates copper or aluminum conductor connections. The tinned copper or aluminum block supports direct connections or connections using ferrules.

• Hinged cover for easy access
• Modular design for customizable setups
• Visual inspection capabilities for conductor safety

Product Highlights

Designed for easy installation and maintenance, suitable for various electrical applications.

Product Information

Standard Information

• Manufacturer: Eriflex
• UPC: 78285659418

Technical Specifications

• Approval: UL 1059, CSA, CE
• Conductor Material: Copper/Thermoplastic
• Cover Type: Hinged
• Number of Poles: 1
• Number of Primary Openings per Pole: 1
• Number of Secondary Openings per Pole: 7
• Primary Opening Wire Size: 8 to 1/0 AWG
• Secondary Opening Wire Size: 14 to 4 AWG
• Size: 1.16 inches x 1.82 inches x 3.04 inches
• Temperature Rating: 185 degrees F
• Type: Modular
