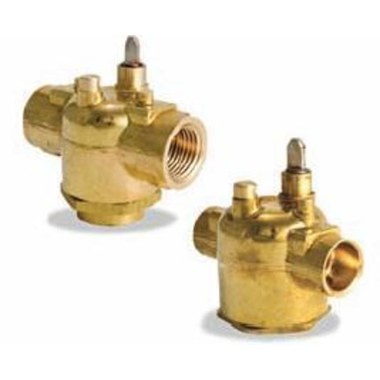

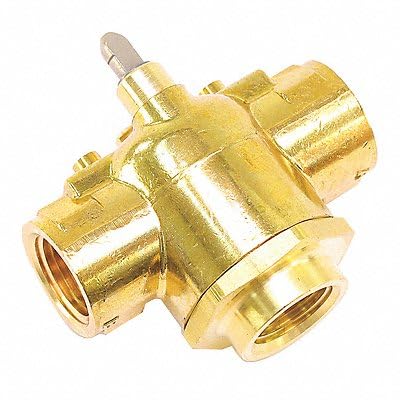

Erie VT3223 3-Way Valve 1/2 NPT 4.0 CV

Product Description

The Erie VT3223 is a 3-way valve designed for 1/2 NPT connections and features a flow capacity of 4.0 CV. This product is ideal for a variety of heating and cooling applications, specifically within hydronic systems. The valve allows for efficient control of fluid flow, ensuring reliable operation in demanding environments.

• 3-way design for flexible flow management
• 1/2 NPT connection for straightforward installation
• 4.0 CV capacity suited for industrial systems

Product Highlights

The Erie VT3223 valve is part of the PopTop series, which allows for easy actuator installation and removal, making maintenance straightforward.

Product Information

Standard Information

• Brand: Schneider Electric (Erie)
• Item Number: VT3223
• Application: Hydronic Heating & Cooling
• Connection Size: 1/2
• Max Pressure: 50 psi

Technical Specifications

• Dimensions: 3.75 inches (Length) x 3.45 inches (Width) x 2.45 inches (Height)
• Weight: 0.87 pounds
• Body Pattern: 3-Way
• Control Connection: NPT
• Flow Capacity (Cv): 4.0
