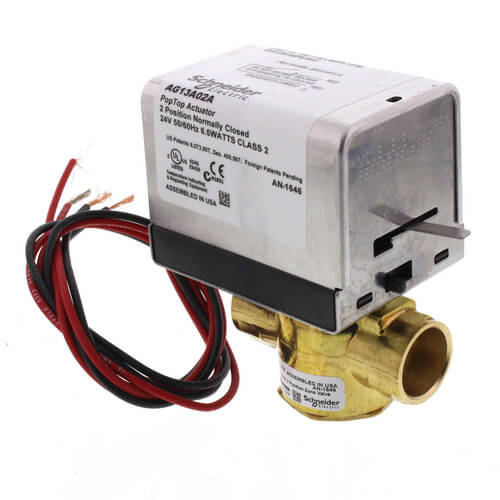

Erie VT2317G13A02A 3/4 Sweat 2 Way PopTop Zone Valve 24 Volts

Product Description

The Erie VT2317G13A02A is a 3/4 sweat 2-way PopTop zone valve designed for various industrial applications. This valve operates at 24 volts and comes with an end switch and a spring return mechanism. The Erie VT2317G13A02A is suitable for HVAC systems, refrigeration, and industrial machinery applications.

• 3/4 inch sweat connection
• 24 volts operation
• Spring return mechanism

Product Highlights

This zone valve is equipped with a removable actuator, making installation and maintenance simple. It provides reliable fluid control for heating and cooling systems.

Product Information

Standard Information

• Brand: Erie
• MPN: VT2317G13A02A

Technical Specifications

• Connection Size: 3/4 inch
• Connection Type: Sweat
• Flow Co-Efficient: 7.5 Cv
• Frequency Rating: 50/60 Hz
• Material: Forged Brass
• Pressure Rating: 300 psig
• Voltage Rating: 24 VAC
• Sub Brand: PopTop
• Type: 2-Way
• Operator Type: GCO Actuator
• Standards/Certifications: UL listed
