ERIE VT2222 POPTOP 2-POSITION ZONE VALVES VALVE BODY 2.5CV 2-WAY 1/2 INCH NPT

Product Description

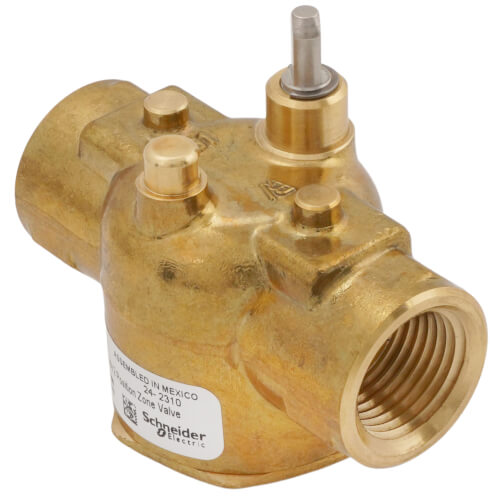

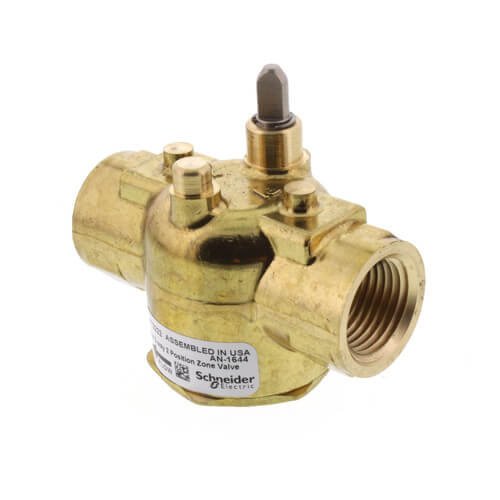

The Erie VT2222 is a robust 2-way zone valve body designed for hydronic heating and cooling applications. Manufactured by Schneider Electric, it features a PopTop design for easy actuator attachment and removal. This model is optimal for on/off control of fluid flow within temperatures ranging from 32 to 200 degrees Fahrenheit.

• Direct replacement for existing 2-position PopTop applications
• Equipped with a hysteresis synchronous motor for extended durability
• Spring return operation ensures fail-safe functionality

Product Highlights

Featuring a forged brass body, this valve is engineered to withstand up to 300 psi of static pressure, making it suitable for various robust applications. Its threaded NPT connections ensure a secure and leak-proof fit.

Product Information

Standard Information

• Brand: Erie
• MPN: VT2222

Technical Specifications

• Type: 2-Way, On-Off General
• Material: Forged Brass Body
• End Style: NPT
• Dimensions: 3-3/4 Inch H x 3-1/2 Inch W x 2-3/4 D
• Pressure Rating: 300 psig
• Water Temperature: 32 - 200 deg F
• Coefficient of Volume: 2.5 Cv
