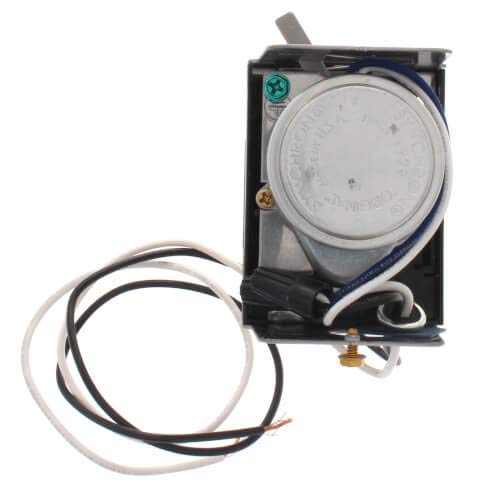

Schneider Electric VS2342G14A020 3/4 Inch 2-Way Inverted Flare Steam Zone Valve 24V 2.5 Cv

Product Description

The Schneider Electric VS2342G14A020 is a 3/4 inch two-way inverted flare steam zone valve with a 2.5 Cv flow capacity, aimed at providing efficient flow control in heating and cooling applications. This zone valve is equipped with a 24V electric actuator and is designed for systems requiring precise control.

• Designed for reliability in HVAC systems.
• Easy installation on fan coils, baseboards, or air handlers.
• Spring return, normallyclosed function ensures fail-safe operation.

Product Highlights

The VS2342G14A020 features a robust design with brass trim and a rotary stem movement actuator. It is ideal for applications requiring high temperature and pressure settings.

Product Information

Standard Information

• Brand: Schneider Electric
• Model: VS2342G14A020

Technical Specifications

• Body Size: 3/4 inches
• Type: 2-Way Zone Valve
• Connection Type: Inverted Flare
• Flow Capacity: 2.5 Cv
• Operating Pressure: 20 PSI close-off
• Electrical Rating: 24 VAC
• Cable Length: 18 inches
• Location Rating: NEMA 1
• Actuator Type: Electric, 2-Position, Normally Closed
