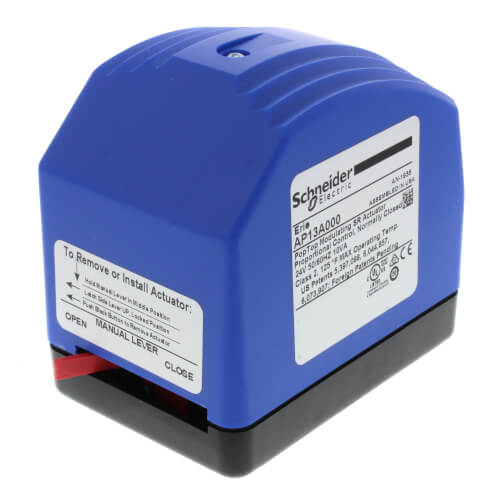

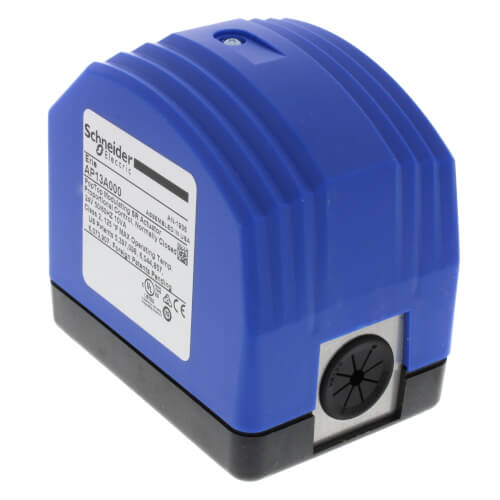

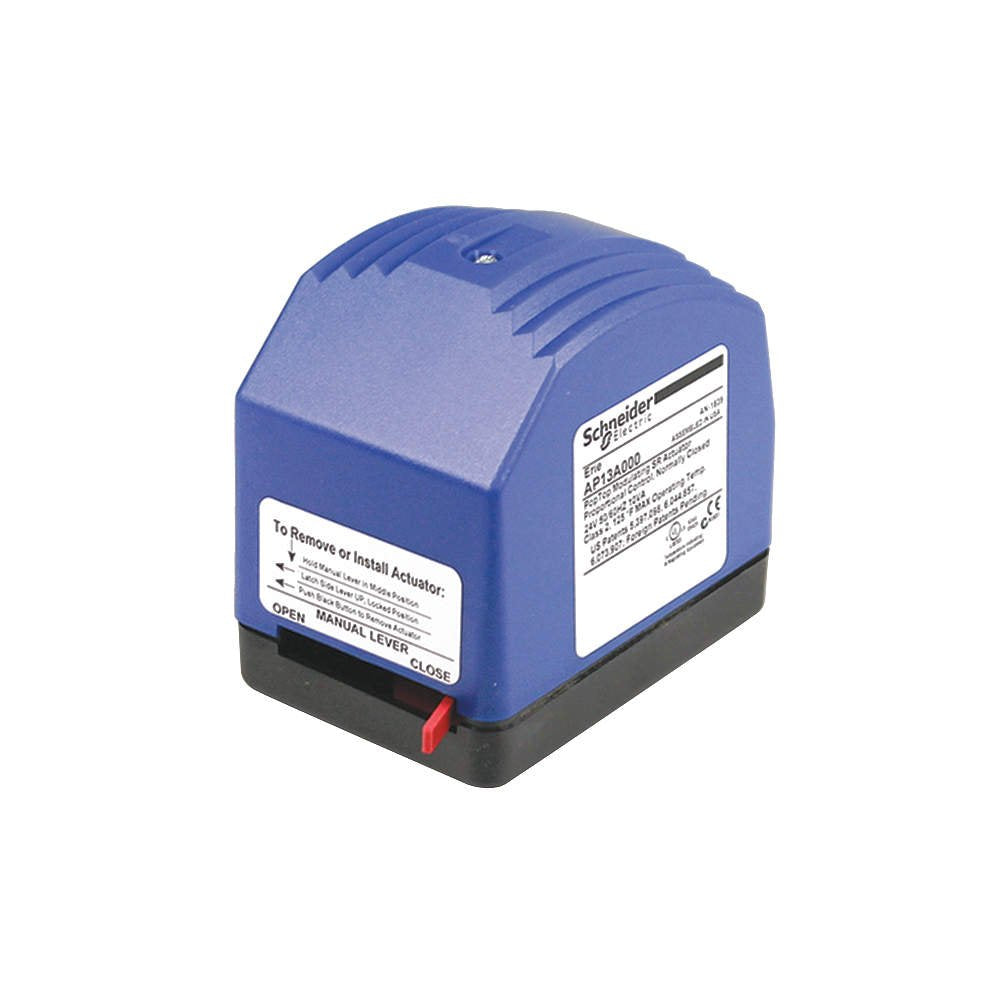

Schneider Electric AP13A000 Tac Erie Spring Return Floating and Proportional Actuator, 24V, Normally Closed

Product Description

The Schneider Electric AP13A000 Tac Erie Spring Return Floating and Proportional Actuator is designed for precise temperature control in HVAC and fluid flow applications. Compatible with any 24VAC three-wire signal, this actuator is perfect for heating and cooling systems.

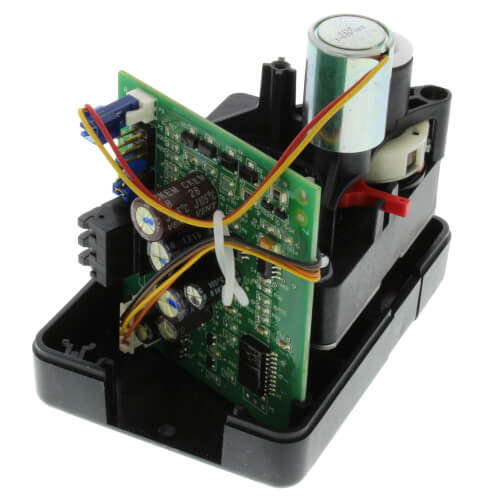

• Microprocessor controlled for precise operation
• Spring return logic for emergency power loss situations
• Manual operating lever for easy setup and control

Product Highlights

This actuator offers proportional and floating control for 1/2 to 1-1/4 inch VM series valves, enhancing flow characteristics in heating and cooling applications. Its magnetic clutch maximizes motor and gear train life.

Product Information

Standard Information

• Brand: Schneider Electric
• Model: AP13A000
• Type: Proportional and Floating Actuator

Technical Specifications

• Voltage: 24V
• Current: 300 O
• Power: 4-20mA or 0-10Vdc
• Position: Normally Closed
• Weight: 0.9 lbs
• Length: 5.75 inches
• Width: 5.4 inches
• Height: 3.45 inches
