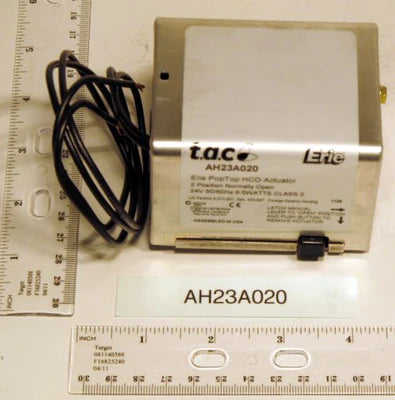

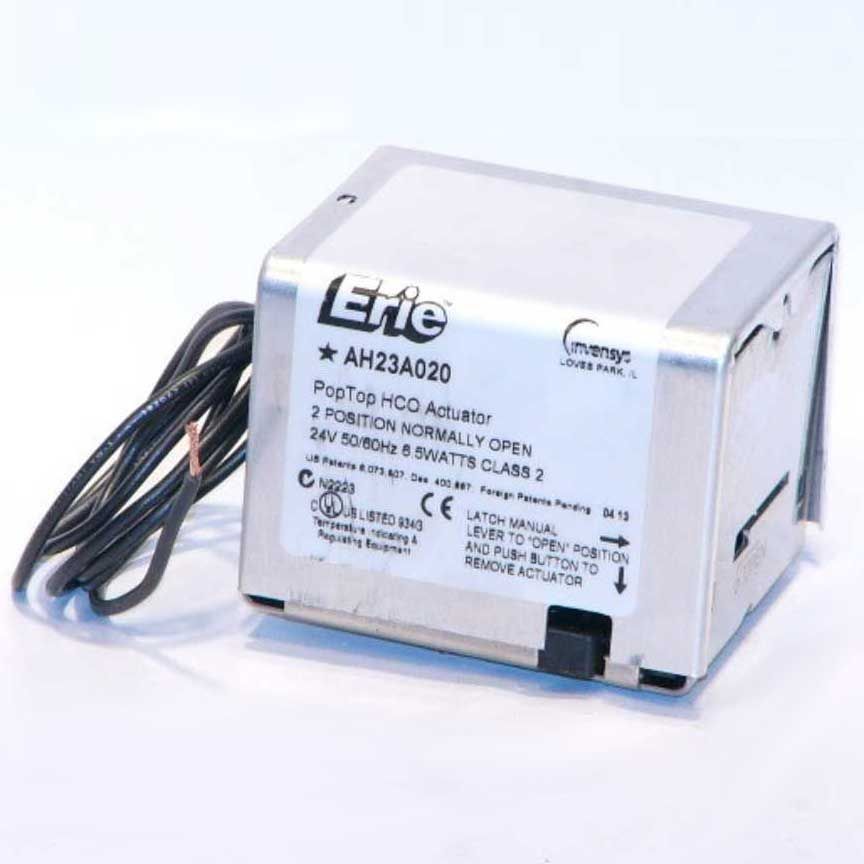

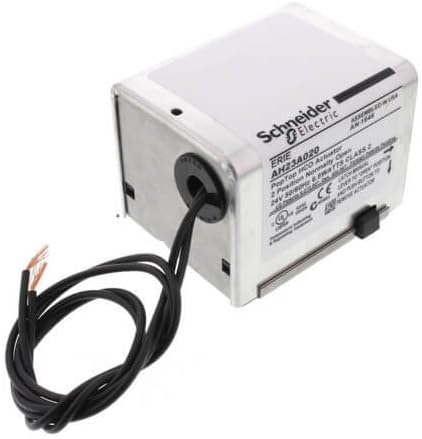

Erie AH23A020 24V Normally Open PopTop Actuator w/ 18 Leads

Product Description

The Erie AH23A020 24V Normally Open PopTop Actuator is designed for industrial and commercial applications. This actuator provides efficient operation for controlling valves, dampers, and other devices. It is constructed to ensure long-lasting performance in demanding environments.

• Voltage: 24V
• Actuator Type: High Close-Off
• Position: Normally Open

Product Highlights

This actuator is spring-return and normally open, with an integral limit switch for position feedback. Its compact design makes it easy to install and integrate with various control systems.

Product Information

Standard Information

• Brand: Erie
• MPN: AH23A020
• Model: PopTop

Technical Specifications

• Voltage: 24V
• Actuator Type: High Close-Off
• Position: Normally Open
• Wiring: 18 Leads
• Close-off Pressure: Up to 75 psi
• Temperature Range: 32°F to 200°F (fluid) at 104°F (ambient)
• Weight: 1.065 lbs
• Dimensions: 3.05 inches L x 5.55 inches W x 2.95 inches H
