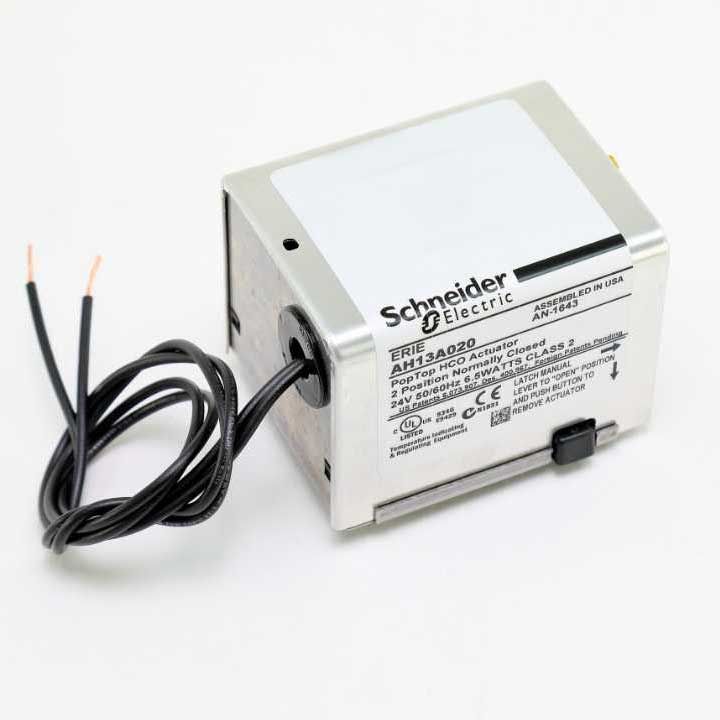

Erie AH13A020 24V Normally Closed High Close-Off PopTop Actuator with 18 Leads

Product Description

The Erie AH13A020 PopTop actuator provides efficient control for heating and cooling applications. Suitable for use with fan coils, baseboards, and air handlers, this actuator offers simple installation after the valve body is secured. This ensures ease of use and reliability.

• Voltage: 24V
• High Close-Off Actuator
• Normally Closed Position

Product Highlights

Erie AH13A020 is a 24V normally closed high close-off PopTop actuator with 18 lead wires. Ideal for various HVAC applications, this actuator features a synchronous motor drive with spring return. It mounts directly onto the valve body without the need for linkages or calibration. The manual override lever offers added control in normally closed actuators.

Product Information

Standard Information

• Item Number: AH13A020
• Brand: Erie
• Model: PopTop

Technical Specifications

• Voltage: 24V
• Actuator Type: High Close-Off
• Position: Normally Closed
• Ratings: General Temperature
• Wiring: 18 Leads
• Spring Return (Open or Close): 4 to 5 Seconds
• Power (Open or Close): 9 to 11 Seconds
• Weight: 1.10 pounds
• Temperature Range: 32°F to 200°F (fluid) at 104°F (ambient)
