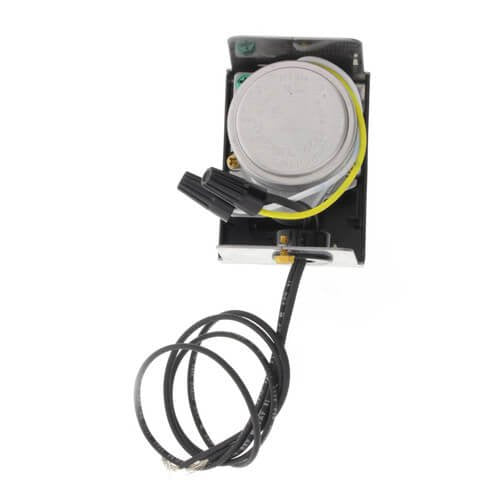

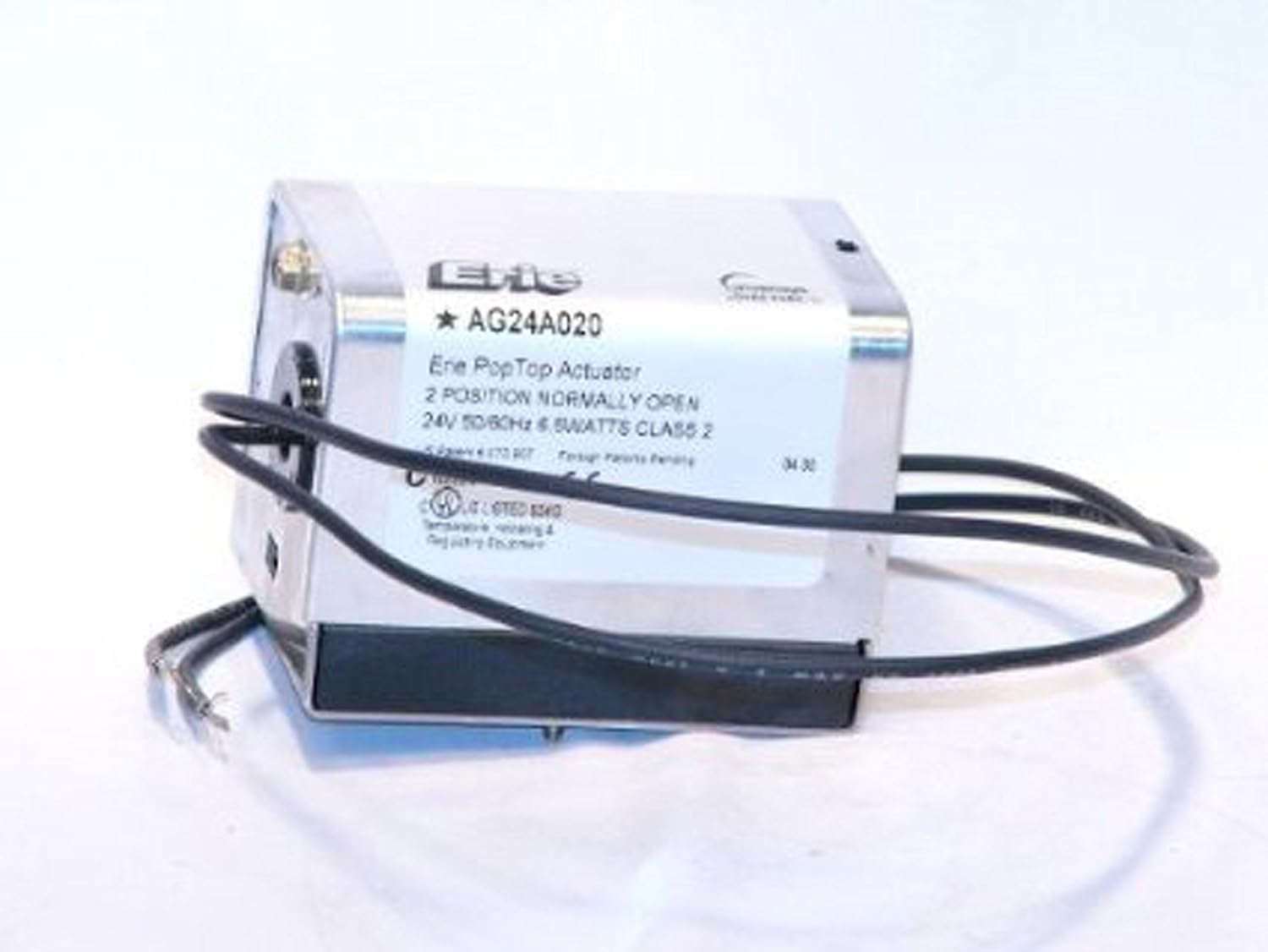

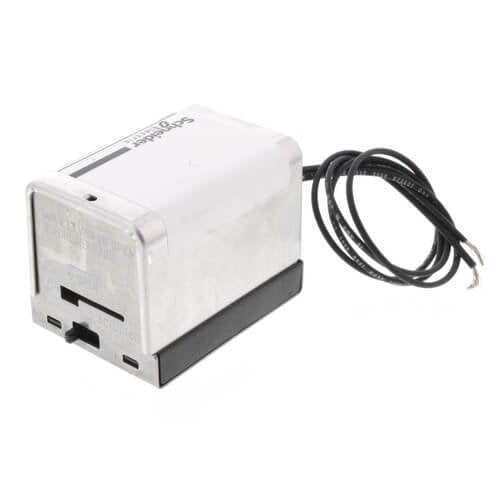

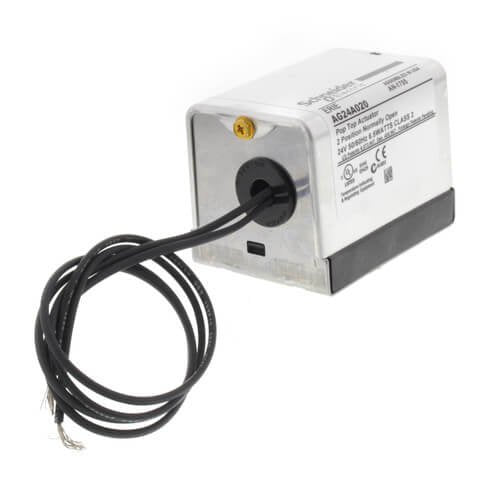

Schneider Electric AG24A020 Tac Erie Spring Return Two-Position General Close-Off Actuator Without End Switch, Normally Open

Product Description

The Schneider Electric AG24A020 Tac Erie Spring Return Two-Position General Close-Off Actuator is designed for efficient and reliable performance in various industrial applications. This actuator, model AG24A020, is manufactured by Schneider Electric and is part of the Erie PopTop AG series.

• Voltage: 24 VAC
• Operation Mode: Electric, Manual
• Connectivity Protocol: X-10

Product Highlights

This actuator features a high-temperature capability, making it suitable for demanding applications. It has a normally open (N/O) position and is designed for two-position (on/off) control. The spring return function ensures reliable performance in various environments, and the device is rated for 24 amps. It is compliant with Coil specifications and has an IP54 rating for protection.

Product Information

Standard Information

• Brand: Schneider Electric (Erie)
• MPN: AG24A020
• Model: PopTop
• Weight: 1.00 pounds
• Replaces: JG24A020

Technical Specifications

• Voltage: 24 VAC
• Current Rating: 24 Amps
• Operation Mode: Electric, Manual
• Number of Positions: 2
• Connectivity Protocol: X-10
• International Protection Rating: IP54
• Wiring: 18 Leads
• Temperature Range: 32°F to 250°F (Fluid), 169°F (Ambient)
