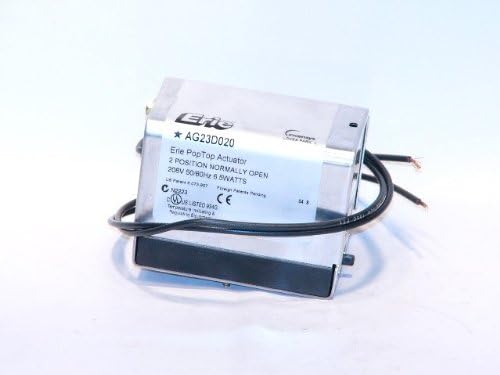

ERIE AG23D020 208V Two Position N.O. Actuator

Product Description

The Erie AG23D020 is a 208-volt two-position normally open actuator known for its reliable performance in industrial settings. This actuator ensures efficient operation and is highly suitable for various industrial processes and equipment.

• Efficient synchronous motor with spring return mechanism.
• Manual override feature for emergency operations.
• Direct mounting capability simplifies installation.

Key Features

This actuator is designed to perform under demanding conditions, offering a spring return functionality that allows for fast action and reliability. It is engineered to mount directly onto equipment without the need for additional linkages, offering a simplified installation process. The manual override lever facilitates easy manipulation during maintenance or unexpected operational conditions.

Product Specifications

• Power Specifications: 208V, two-position, normally open configuration.
• Operational Speed: Opens and closes between nine to eleven seconds; spring return in four to five seconds.
• Installation: Direct body-mounted with no need for linkages or calibration.
• Dimensions: Length: 4.14 inches, Width: 2.12 inches, Height: 2.12 inches.
• Weight: Approximately 1 pound.
