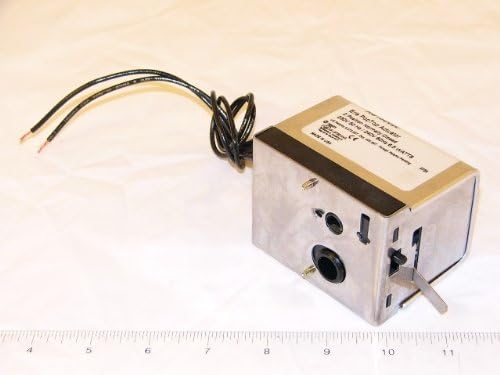

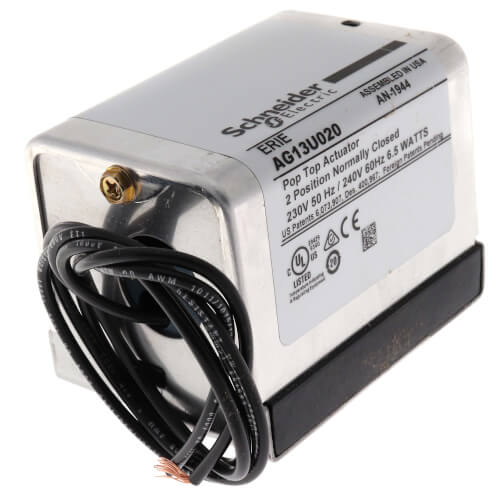

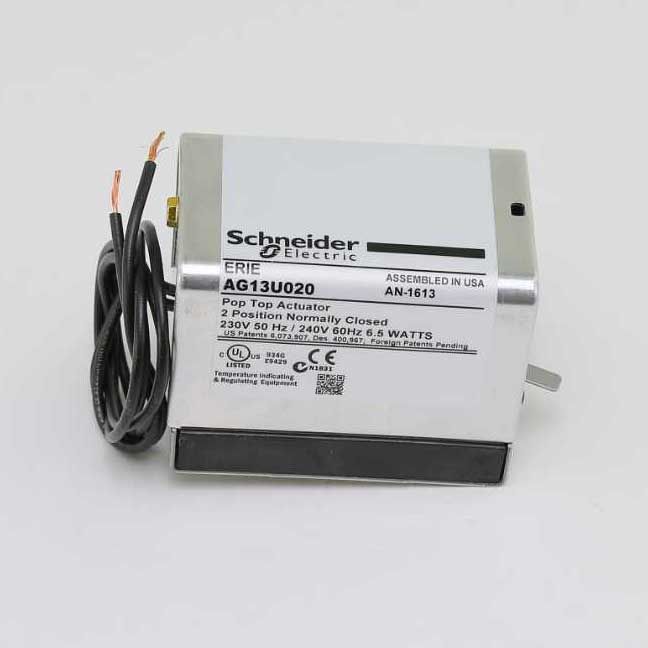

Erie AG13U020 240V 60Hz/230 50Hz Actuator 2 Position Spring Return

Product Description

The Erie AG13U020 Actuator, operating at 230-240V, is designed for use with 2 and 3 way valves. This two-position (On/Off) actuator features a spring return mechanism.

• Operational Voltage: 230-240V
• Spring return for dependable performance
• Designed for 2 and 3 way valves

Product Highlights

The Erie AG13U020 Actuator is ideal for managing the open and close functions of 2 and 3 way valves in HVAC systems. Its 18-wire leads make installation straightforward. The actuator also operates efficiently within a temperature range of 32°F to 200°F for fluid and up to 104°F for ambient temperature.

Product Information

Standard Information

• Brand: Erie
• Model: PopTop
• MPN: AG13U020
• Weight: 1.04 lbs

Technical Specifications

• Voltage: 230-240V
• Position: Normally Closed
• Type: On/Off, 2-Position
• Connection: Spring Return
• Leads: 18 wire
• Use: 2 and 3 way valves
• Temperature Range: 32°F to 200°F (fluid), 104°F (ambient)
• Dimensions: 5.55 inches x 3.15 inches x 2.9 inches
