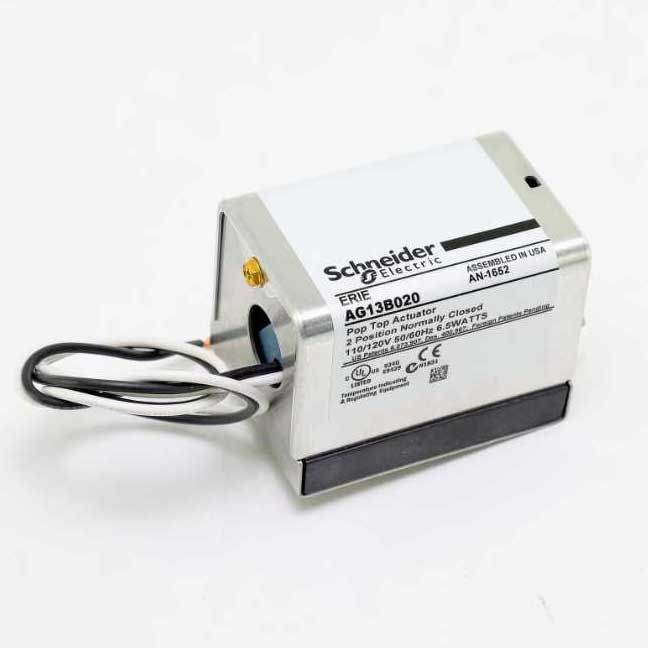

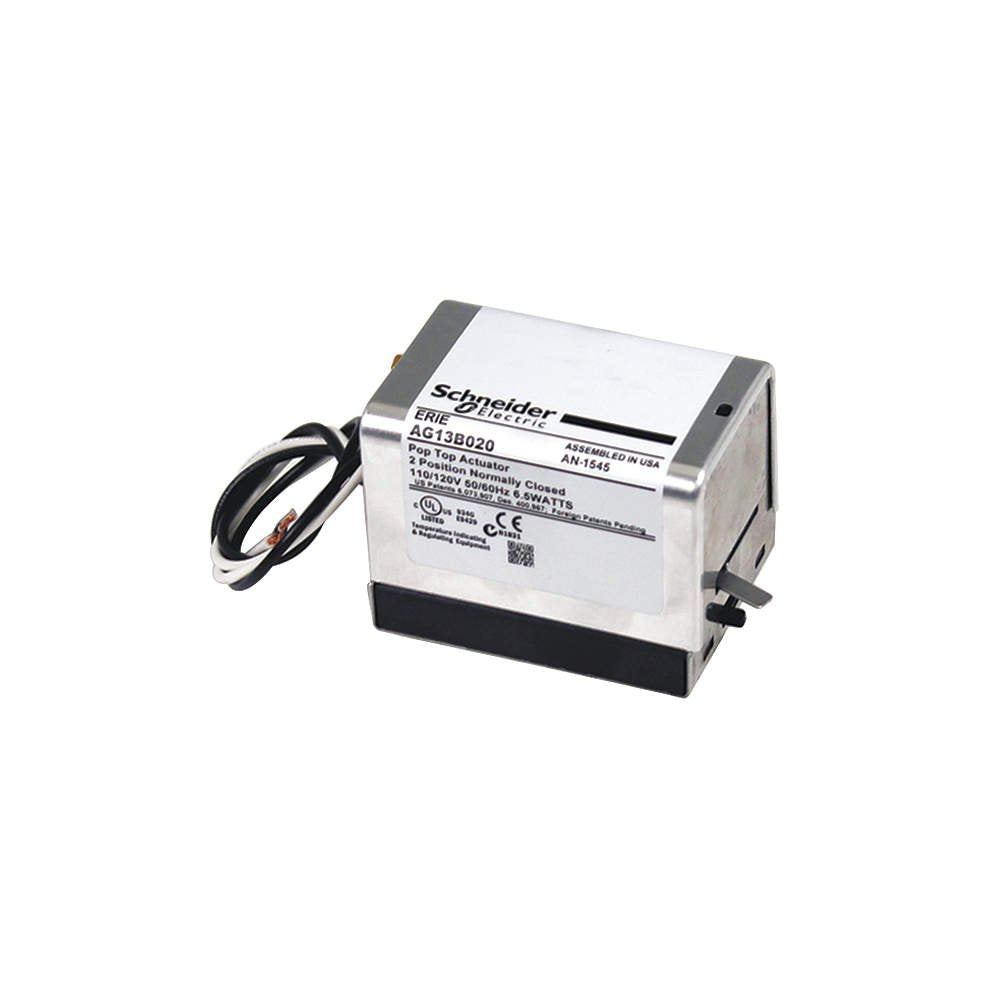

Schneider AG13B020 Tac Erie Spring Return Two-Position General Close-Off Actuator Without End Switch, Normally Closed

Product Description

The Schneider Electric AG13B020 Tac Erie actuator is a two-position, normally closed actuator without an end switch. This actuator operates with a spring return mechanism, making it suitable for various industrial applications. Ideal for HVAC systems, it mounts directly onto the valve body, enabling easy installation and ensuring reliable performance.

• Suitable for HVAC systems
• Operates with a spring return mechanism
• Direct mounting for easy installation

Product Highlights

This actuator is designed to control the flow of fluids in HVAC systems. Its spring return mechanism ensures the actuator returns to its default position when power is cut off. Its two-position operation allows for precise control in on/off applications. The direct mounting feature eliminates the need for additional linkages or calibration.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: AG13B020

Technical Specifications

• Operating Voltage: 120 Volts
• Operation Mode: ON-NONE-OFF
• Contact Type: Normally Closed
• International Protection Rating: IP54
• Number of Positions: 2
• Connectivity Protocol: X-10
• Technical Features: Synchronous motor drive, spring return, manual override lever, 18 wire leads, 9-11 sec power cycle, 4-5 sec spring return.
