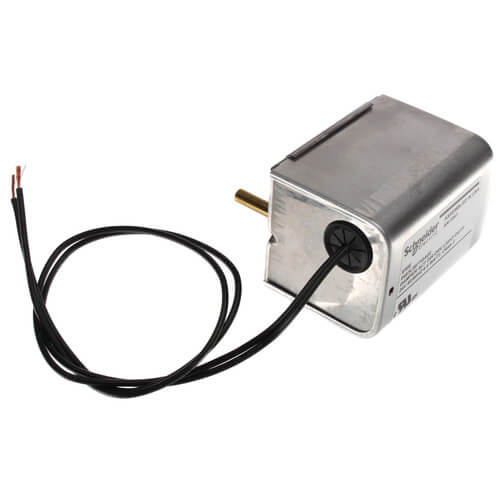

Erie 0453L0077GA00 24V L-Series Light Duty 2-Position Damper Actuator Direct CW

Product Description

The Erie 0453L0077GA00 is a light duty damper actuator designed for efficient, two-position, spring return damper applications in HVAC systems. Engineered for direct drive operation with a clockwise rotation, this unit ensures reliable performance under standard conditions.

• Designed for two-position, spring return functionality enhancing HVAC system efficiency.
• Simple 2-wire thermostat control enables straightforward operation and integration.
• UL recognized, assuring compliance with quality and safety standards.

Product Highlights

This durable Erie actuator operates with a 24V input and provides quiet operation, making it suitable for a variety of residential and commercial settings. Features include optional end switch and quick mounting capabilities.

Technical Specifications

• Voltage: 24V
• Rotation: Clockwise (CW)
• Action: Spring Return
• Wiring: 18 inch Leads
• Weight: 1.14 lbs
• Temperature Range: 0°F - 120°F
• Body Pattern: 2-Way
• Actuator Type: On/Off
