Product Description

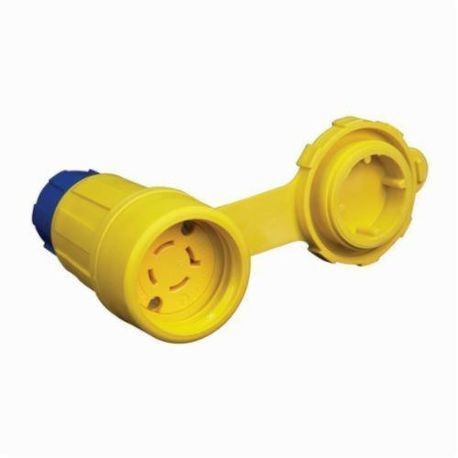

The Ericson® 2410-CW6P is a Perma-Tite® 1-Phase grounding locking blade connector, designed for reliability in various applications. This connector operates at a voltage of 125 VAC and supports an amperage rating of 20 A with two poles and three wires. It is well-suited for use in food processing, marine, and industrial environments.
- Tongue and groove sealing system for environmental protection
- Resists high-pressure wash-down of 1,000 psi
- Corrosion-resistant nickel-plated blade for durability
Product Highlights
This connector's design features easy alignment and assembly, making it an efficient choice for professionals. The color-coded sealing bushings fit various cord diameters, and a removable sealing cap keeps contaminants out when the connector is not in use.
Product Information
Standard Information
-
Brand: Ericson®
-
Manufacturer: Ericson Manufacturing
Technical Specifications
-
Number of Poles: 2
-
Amperage Rating: 20 A
-
Voltage Rating: 125 VAC
-
Color: Blue/Safety Yellow
-
Material: PBT
-
Enclosure: IP67
-
Dimensions: 2.56 inches diameter x 5.05 inches length
-
NEMA Rating: NEMA L5-20R/4/4X/6/6P
-
GTIN: 00782862824931
-
UPC: 782862824931
-
UNSPSC: 39121421
-
Application: Food Processing, Pulp and Paper Mills, Refineries, Marine, Utilities
-
Standard & Approvals: CSA Certified, RoHS Compliant, UL Listed
