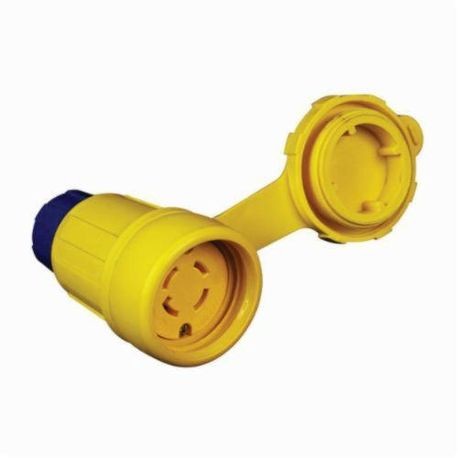

Ericson 1620-CW6P Perma-Tite 1-Phase Grounding Locking Blade Connector 125 VAC 15 A

Brand: ERICSON
SKU: 1620-CW6P
Availability: In Stock
truck-svgrepo-com

Ships in 1-2 business days

$75.80
$75.80
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Ericson 1620-CW6P is a Perma-Tite locking blade connector designed for reliable electrical connections. It operates at 125 volts AC with a current rating of 15 amps, suitable for various applications. Its robust design meets the needs of challenging environments.

  • Tongue and groove sealing system ensures environmental protection
  • Resistant to high-pressure hose downs up to 1,000 psi
  • Corrosion resistant nickel plated solid brass blade

Product Highlights

This connector is built with PBT for moisture resistance and high voltage performance. It features color-coded sealing bushings and a transparent back-plate for easy visual checks. The grounding design enhances safety in industrial applications.

Product Information

Standard Information

  • Brand: Ericson
  • Manufacturer: Ericson Manufacturing

Technical Specifications

  • GTIN: 00782862824870
  • UPC: 782862824870
  • NEMA Rating: NEMA L5-15R/4/4X/6/6P
  • Voltage Rating: 125 VAC
  • Amperage Rating: 15 A
  • Number of Poles: 2
  • Number of Wires: 3
  • Dimensions: 1.81 inches Diameter x 4.01 inches Length
  • Material: PBT
  • Enclosure: IP67
  • Application: Food Processing, Pulp and Paper Mills, Refineries, Ship Yards, Utilities and Marine
  • Standard & Approvals: CSA Certified, RoHS Compliant, UL Listed
