Ericson 1620-C Perma-Grip Perma-Link Perma-Tite 2 1-Phase Grounding Locking Blade Connector 125 VAC 15 A

Product Description

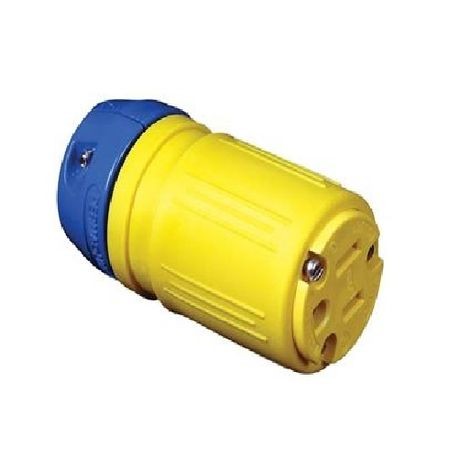

The Ericson 1620-C is a Perma-Grip Perma-Link Perma-Tite 2 1-phase grounding locking blade connector. It operates at 125 VAC and 15 A, designed with two poles and three wires. This connector is suitable for use in indoor and construction environments.

• Two screw cable clamp secures wire and provides strain relief
• Solid brass blades for optimal electrical and mechanical performance
• Keyed body and cover for easy alignment and assembly

Product Highlights

This connector withstands high impact, corrosion, oils, greases, solvents, and other chemicals, functional in temperatures between -20 to 100 degrees Celsius.

Product Information

Standard Information

• Brand: Ericson
• MPN: 1620-C

Technical Specifications

• Number Of Poles: 2
• Dimensions: 1.6 x 3.08 inches
• Amperage Rating: 15 A
• GTIN: 00782862587607
• Temperature Rating: -20 to 100 degrees Celsius
• Type: 1-Phase Grounding
• Number of Wires: 3
• Material: PBT
• Grade: Light Industrial
• Terminal Type: Dead Front Back Wired
• Voltage Rating: 125 VAC
• NEMA Rating: NEMA L5-15
• Color: Blue/Yellow
• UPC: 782862587607
• Order Interval: 1
• UNSPSC: 39121400
• Minimum Order Qty: 1
