Ericson 1512-PW6P N5-20P 20A-125V PLG

Product Description

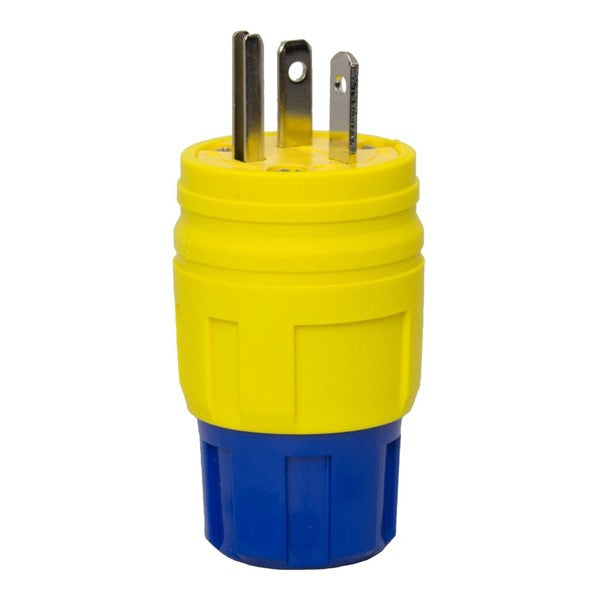

Ericson® Perma-Tite® 1512-PW6P is a straight blade plug rated for twenty amps and designed for use with 125 volts. It features two poles and three wires, making it suitable for various industrial applications. The plug has an NEMA 5-20 rating, ensuring compatibility with standard electrical outlets. The construction includes a thread terminal and a robust enclosure rated at IP67/NEMA 4, 4X, 6, and 6P. This design protects against water and dust ingress, making it ideal for harsh environments.

• Rated for 20 amps, 125 VAC.
• IP67/NEMA 4, 4X, 6, 6P rated for environmental protection.
• Solid brass blades for excellent conductivity.

Product Highlights

The Ericson Perma-Tite plug features a tongue and groove sealing system that offers exceptional environmental protection. Its new dual-color safety design enhances visibility in low-light conditions.

Product Information

Standard Information

• Voltage Rating: 125 VAC
• Amperage Rating: 20 A

Technical Specifications

• Application: Food processing, pulp and paper mills, refineries, petrochemical facilities
• Color: Brilliant Blue/Radiant Yellow
• Dimensions: 1.63 inches Dia x 2.68 inches L
• Enclosure: IP67/NEMA 4, 4X, 6, 6P
• Grade: Industrial
• Manufacturer Part Number: 1512-PW6P
• Material: Polybutylene Terephthalate
• NEMA Rating: NEMA 5-20
• Number of Poles: 2
• Number of Wires: 3
• Standards/Approvals: UL Listed, CSA Certified, RoHS Compliant
• Terminal Type: Threaded
• Type: 1-Phase Grounding
