Erico TAC3Q2Q Cable to Cable, TA, 500 kcmil Concentric, 0.813 inches Conductor 1 OD, 4/0 Concentric, 0.528 inches Conductor 2 OD

Product Description

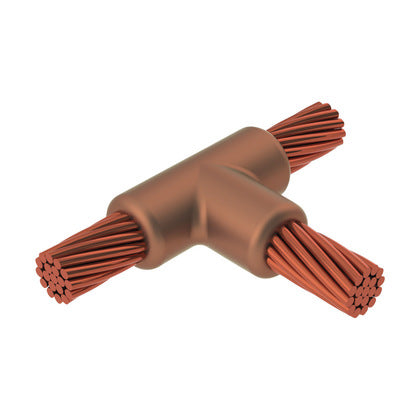

The ERICO TAC3Q2Q Cadweld graphite mold is designed for various connection styles and conductor combinations. This mold is for cable to cable connections, specifically TA, 500 kcmil Concentric with a 0.813" Conductor 1 OD, and 4/0 Concentric with a 0.528" Conductor 2 OD. Welding material and handle clamp are sold separately.

• Forms a permanent, low resistance connection
• Provides a molecular bond
• nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor

Product Highlights

The TAC3Q2Q creates permanent, visually inspectable connections with the same current capacity as the conductor. Portable installation equipment requires no external power source.

Product Information

Standard Information

• Brand: ERICO
• Manufacturer Part Number: TAC3Q2Q

Technical Specifications

• Mold Family: TA
• Conductor 1: 500 kcmil Concentric
• Conductor 1 Outer Diameter, Nominal: 0.81"
• Conductor 2: 4/0 Concentric
• Conductor 2 Outer Diameter, Nominal: 0.53"
• Mold Split: Horizontal
• Split Crucible: No
• Wear Plates: No
• Mold Only: No
• Welding Material: 150 or 150PLUSF20, Sold Separately
• Handle Clamp: L160, Sold Separately
• Price Key: C
• Ease of Use: Preferred
• Manufacturer: Erico Caddy Cadwal
• Part Number: TAC3Q2Q
• Item Package Quantity: 1
• Number Of Pieces: 1
