Erico TAC3D3D Hor Tee Cable Mold 350 kcmil

Product Description

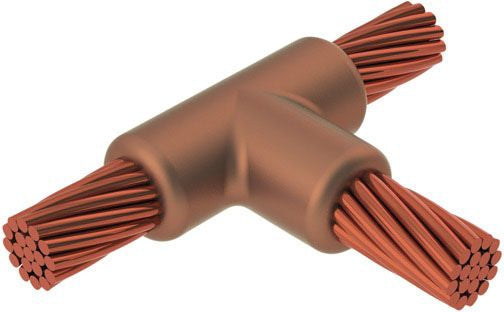

The ERICO TAC3D3D is a cable to cable welding mold of type horizontal tee. Designed for a main cable size of 350 KCMIL Stranded and tap cable size of 350 KCMIL Stranded. Nvent ERICO Cadweld graphite molds are designed and engineered for thousands of connection styles and conductor combinations.

• Forms a permanent, low resistance connection
• Provides a molecular bond
• Nvent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor

Product Highlights

The ERICO TAC3D3D forms a permanent, low resistance connection with a molecular bond. Portable installation equipment with no external power source required.

Product Information

Standard Information

• Brand: ERICO
• Manufacturer Part Number: TAC3D3D
• Country of Origin: USA

Technical Specifications

• Buy Line: ERCD
• Country Of Origin: USA
• Currency Code: USD
• Mold Family: TA
• Conductor 1: 350 kcmil Concentric
• Conductor 1 Outer Diameter, Nominal: 0.68"
• Conductor 2: 350 kcmil Concentric
• Conductor 2 Outer Diameter, Nominal: 0.68"
• Mold Split: Horizontal
• Split Crucible: No
• Wear Plates: No
• Mold Only: No
• Welding Material: 200 or 200PLUSF20, Sold Separately

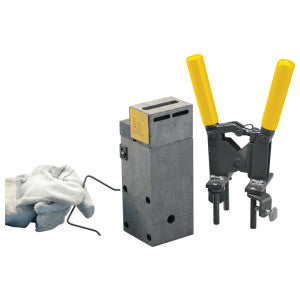

• Handle Clamp: L160, Sold Separately
• Price Key: C
• Ease of Use: Preferred
• UPC: 782856554066
• EAN: 8711893140194
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• ECCN: EAR99
• UNSPSC: 39121457
• Manufacturer: nVent
• Conductor Size: 350 kcmil Stranded
• Type: Type TA
• Application: Facility Electrical Protection; Lightning Protection; Solar Power; Telecom; Utility; Wind Power
• Brand Name: Erico
• Material: Graphite
• Package_Quantity: 1
• Special Features: Forms a permanent, low resistance connection Horizontal tee NVent ERICO® CADWELD® exothermic connections are rated with the same current capacity as the conductor Portable installation equipment with no external source of power required Provides a molecular bond
• Standard: None
• Sub_Brand: ERICO
• Outer Diameter: 0.681 Inch
